A/T CONTROL COMPONENT LAYOUT

NAME	SYMBOL	NAME	SYMBOL
A/T control relay	D	Shift switch assembly < Vehicles with sport mode >	K
Crankshaft position sensor < 2.4L Engine >	E	Solenoid valves	G
Crankshaft position sensor < 3.0L Engine >	E	Stoplight switch	I
Data link connector	J	TP sensor < 3.0L Engine >	B
Dual pressure switch	A	TP sensor < 2.4L Engine >	B
Input shaft speed sensor	C	Transmission fluid temperature sensor	G
Output shaft speed sensor	C	Transmission range switch	F
Power train control module (PCM)	H

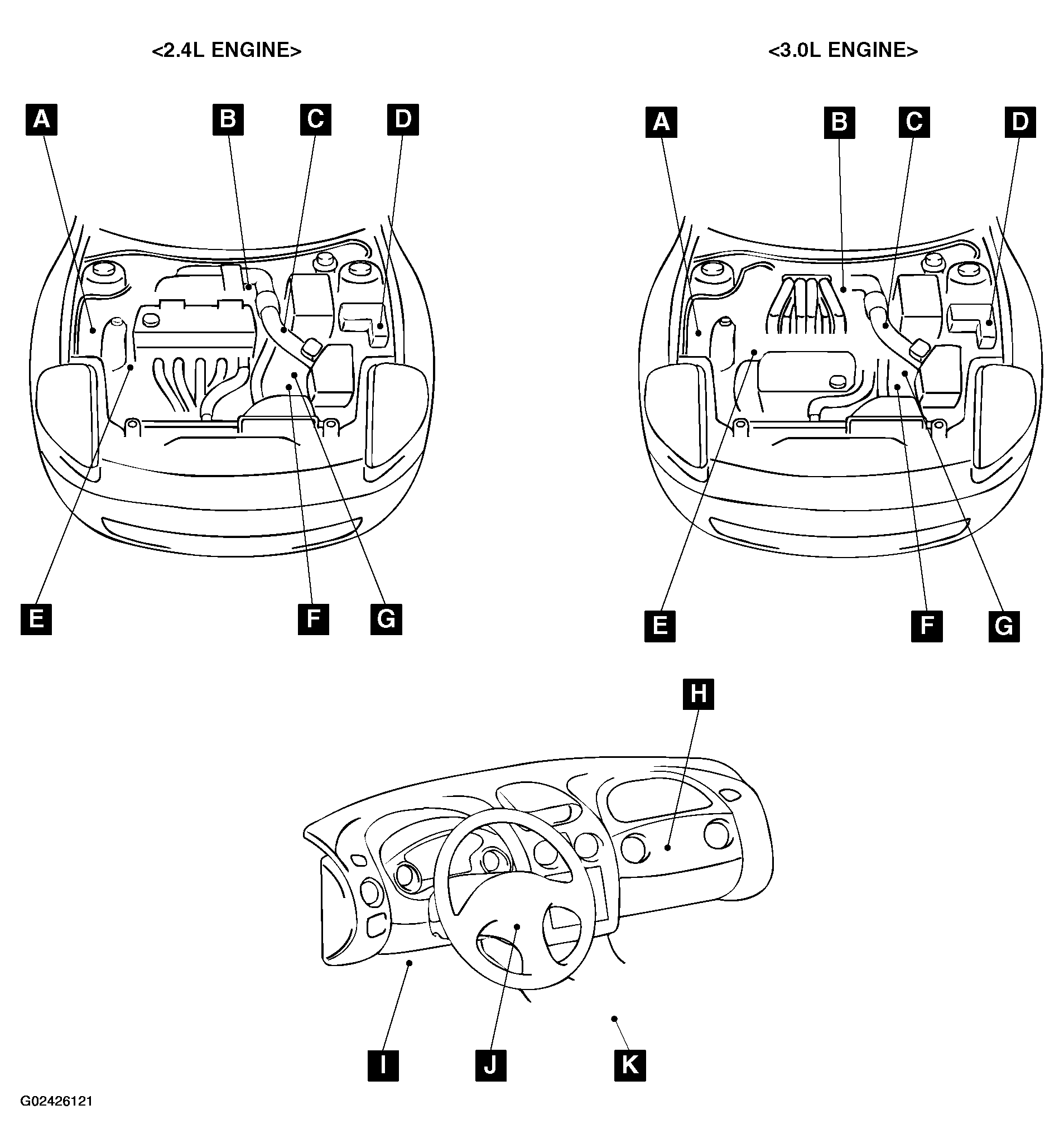

Fig 1: Identifying A/T Control Component Locations (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

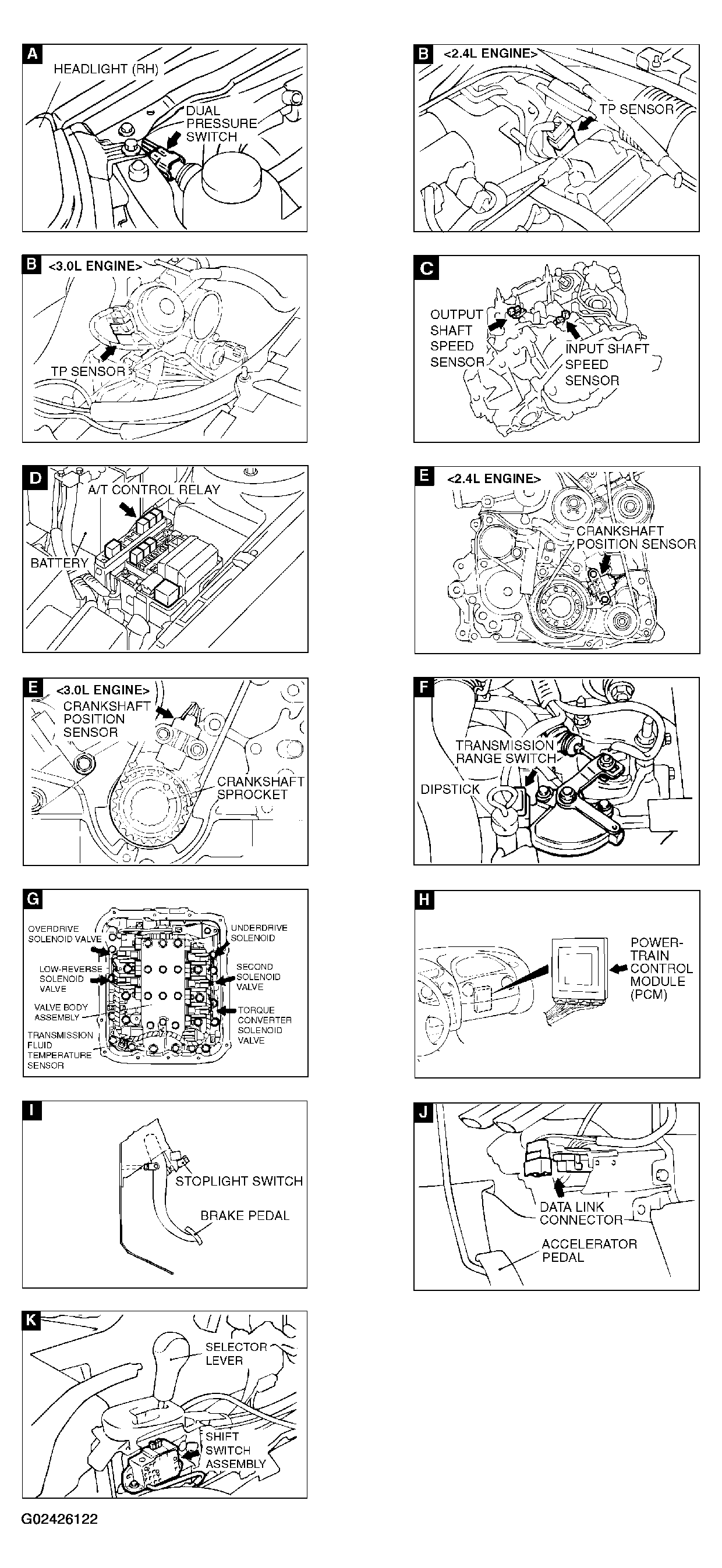

Fig 2: Identifying A/T Control Component Locations (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
