Removal And Installation: Notes

CAUTION: *: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

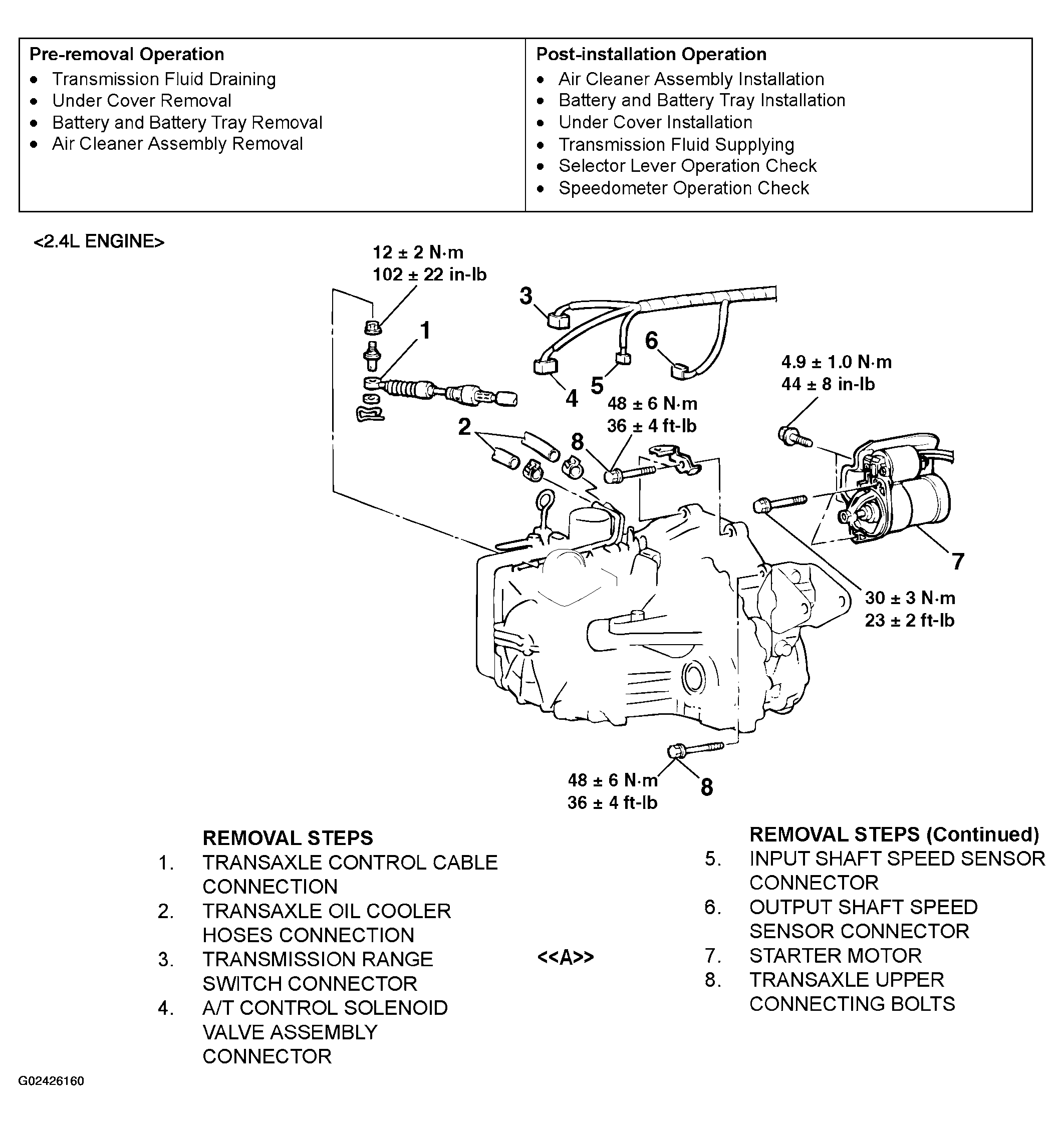

Fig 1: Removing/Installing Transaxle Assembly (2.4L) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: *: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

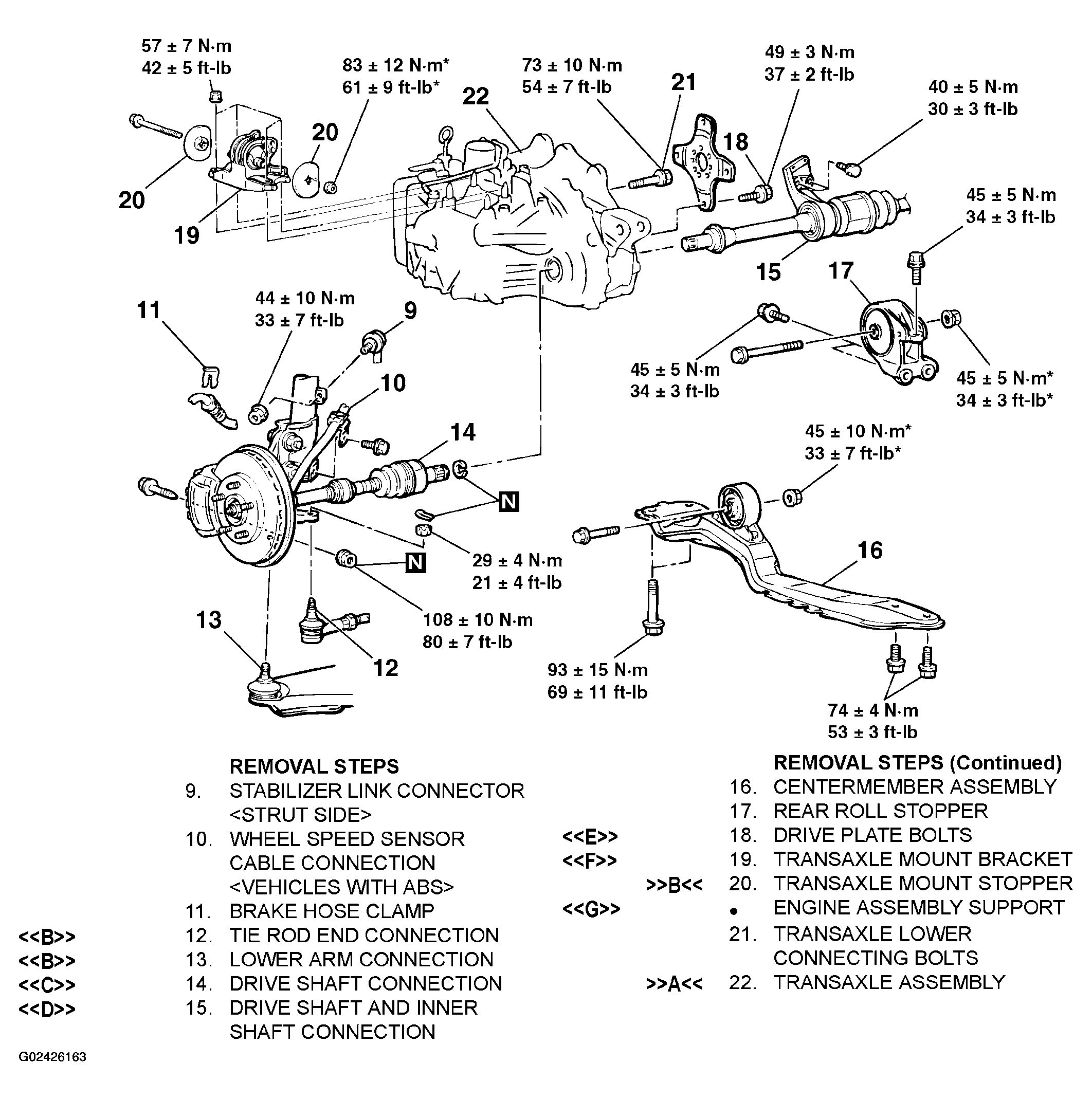

Fig 2: Removing/Installing Transaxle Assembly (2.4L) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991453: Engine Hanger Assembly
MB991454: Engine Hanger Balancer
MB991895: Engine Hanger
MB991897: Ball Joint Remover
MB991928: Engine Hanger
Slide bracket (HI)
MB991932: Foot (standard)
MB991933: Foot (short)
MB991929: Joint (50)
MB991930: Joint (90)
MB991931: Joint (140)
MZ203827: Engine Lifter

CAUTION: *: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

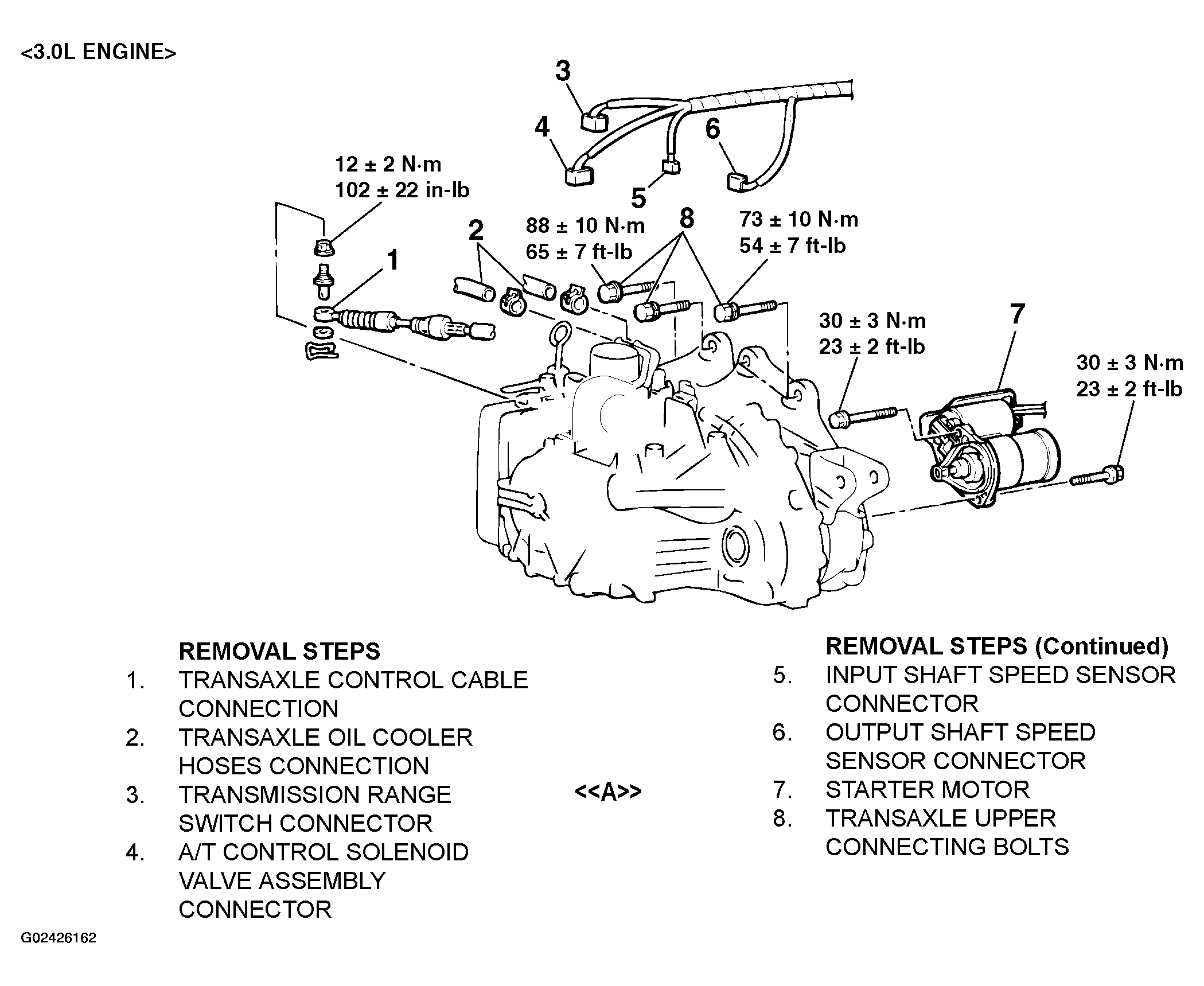

Fig 3: Removing/Installing Transaxle Assembly (3.0L) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: *: Indicates parts which should be partially tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

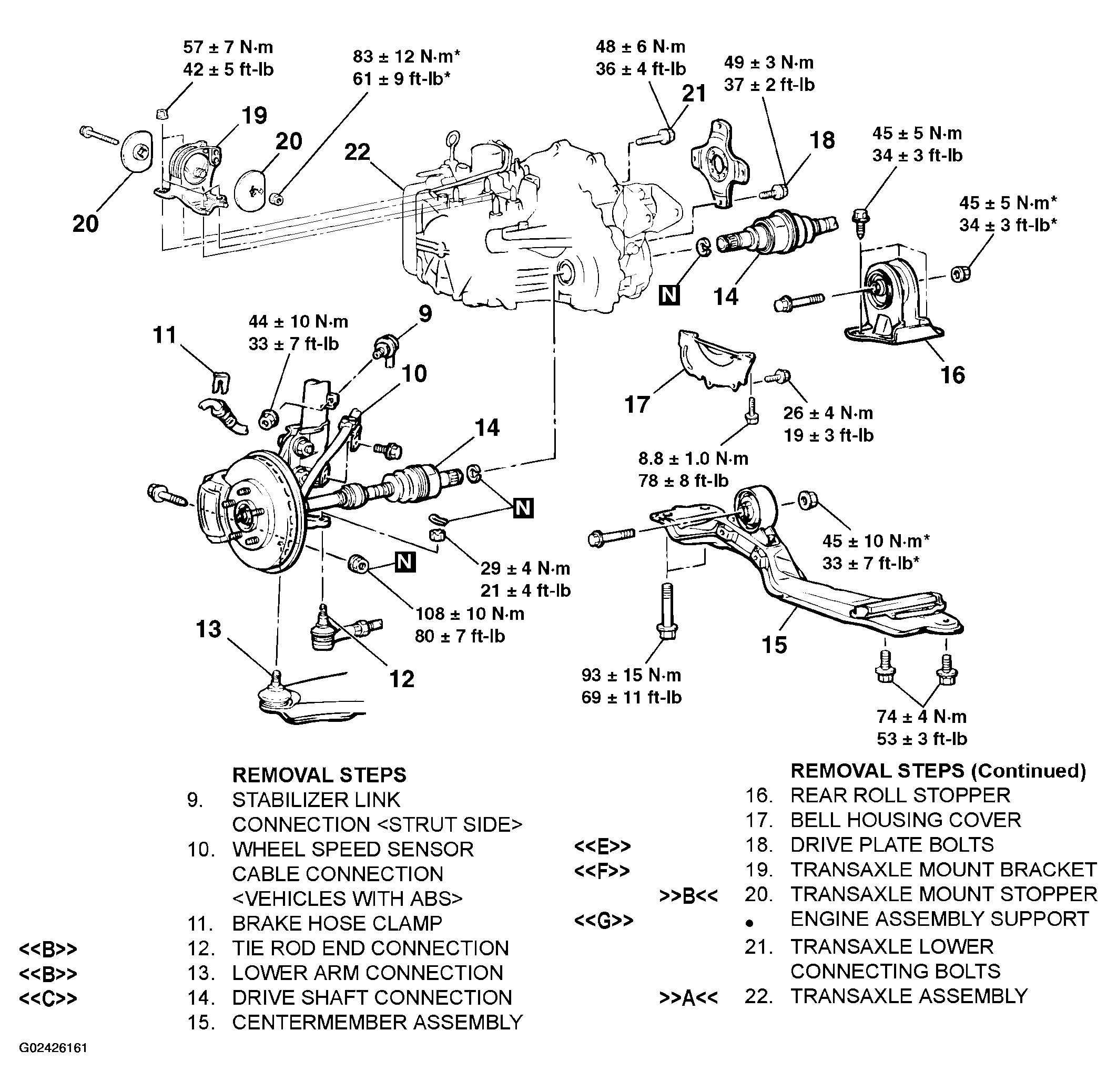

Fig 4: Removing/Installing Transaxle Assembly (3.0L) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991453: Engine Hanger Assembly
MB991454: Engine Hanger Balancer
MB991895: Engine Hanger
MB991897: Ball Joint Remover
MB991928: Engine Hanger
Slide bracket (HI)
MB991932: Foot (standard)
MB991933: Foot (short)
MB991929: Joint (50)
MB991930: Joint (90)
MB991931: Joint (140)
MZ203827: Engine Lifter
