Actuator Test Specifications

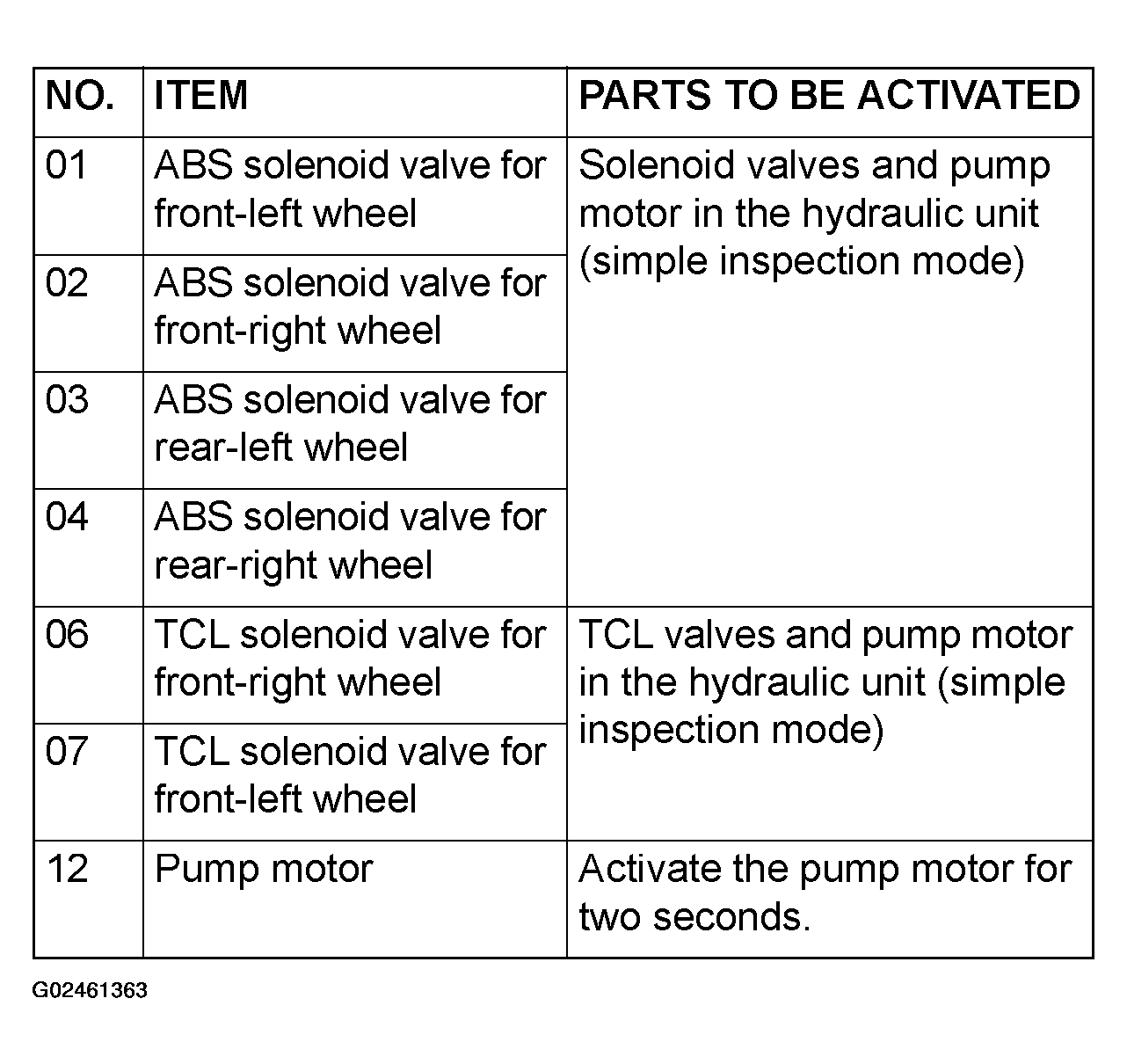

Fig 1: Actuator Test Specifications Chart
G02461363Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

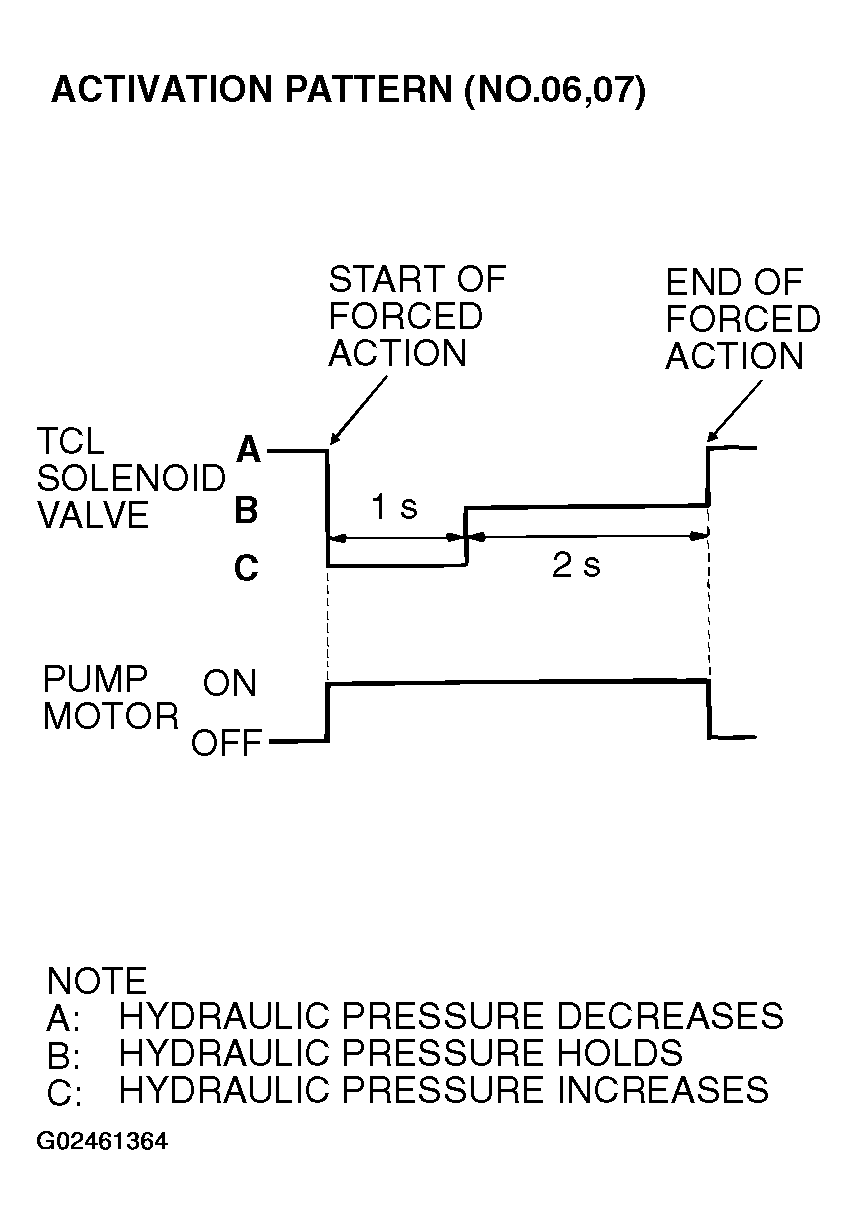

Fig 2: TCL Solenoid Valve - Activation Pattern
G02461364Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
