Notes
Disassembly And Assembly: Notes
CAUTION:
Never disassemble the BJ assembly except when replacing the BJ boot.

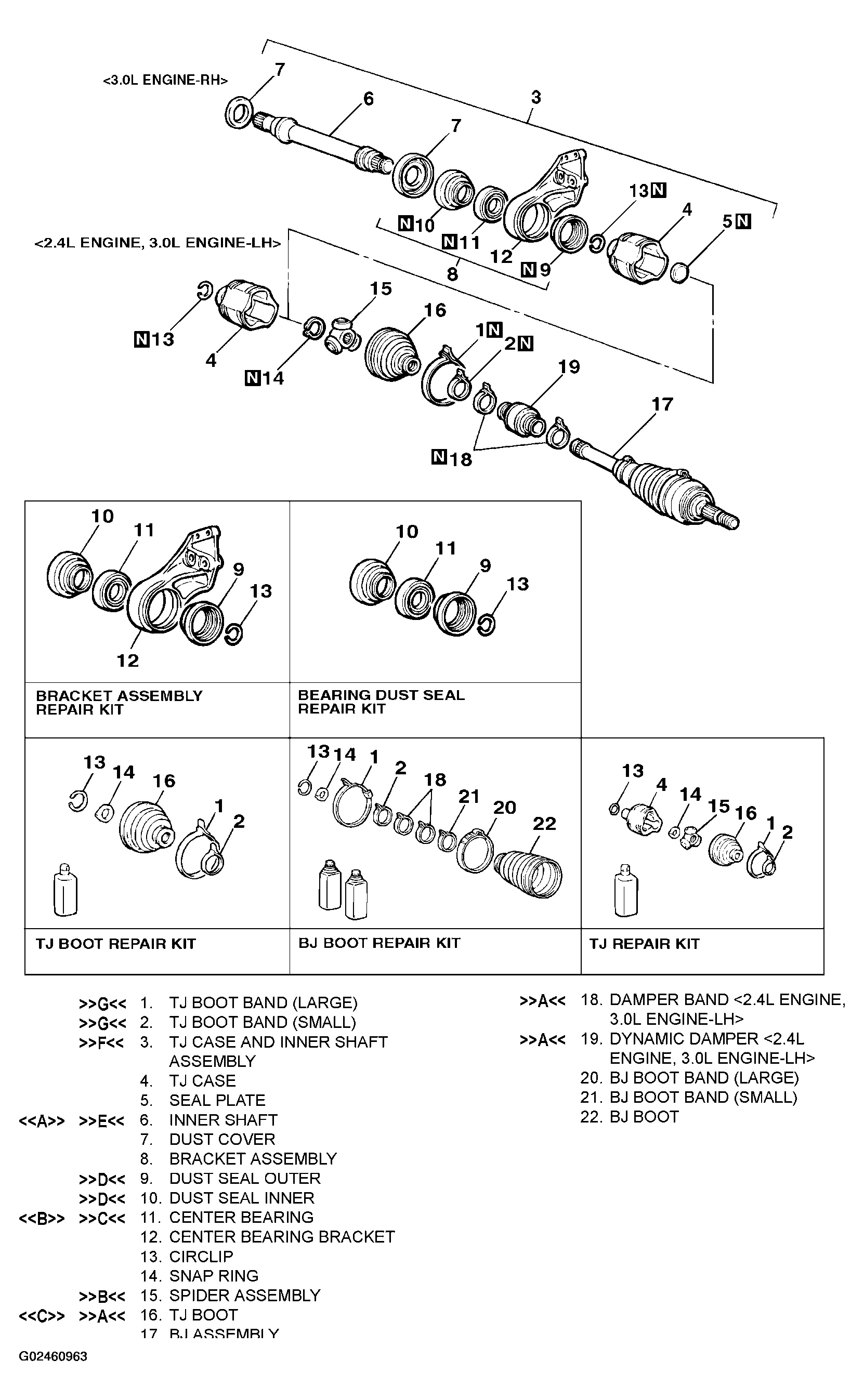

Fig 1: Disassembling/Assembling Drive Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
