Removal And Installation

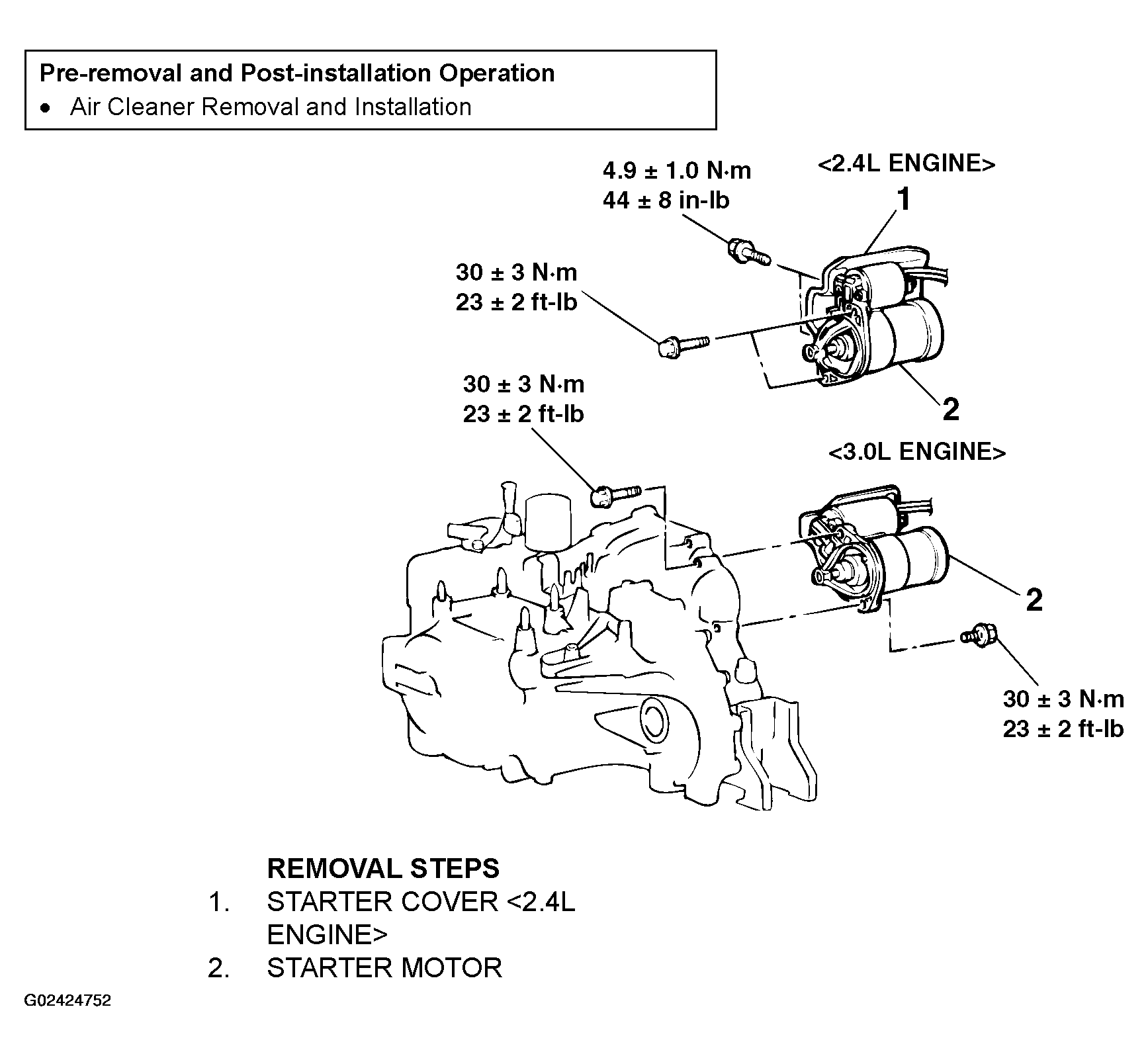

Fig 1: Removing/InstallingStarter Motor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
