General Data And Specifications
General Specifications (Models With 2.4L Engine)
| ITEM | RS MNJEL4M/5M/9M | RS MRJEL4M/5M/9M | GS MNHEL4M/5M/9M | GS MRHEL4M/5M/9M | ||
|---|---|---|---|---|---|---|

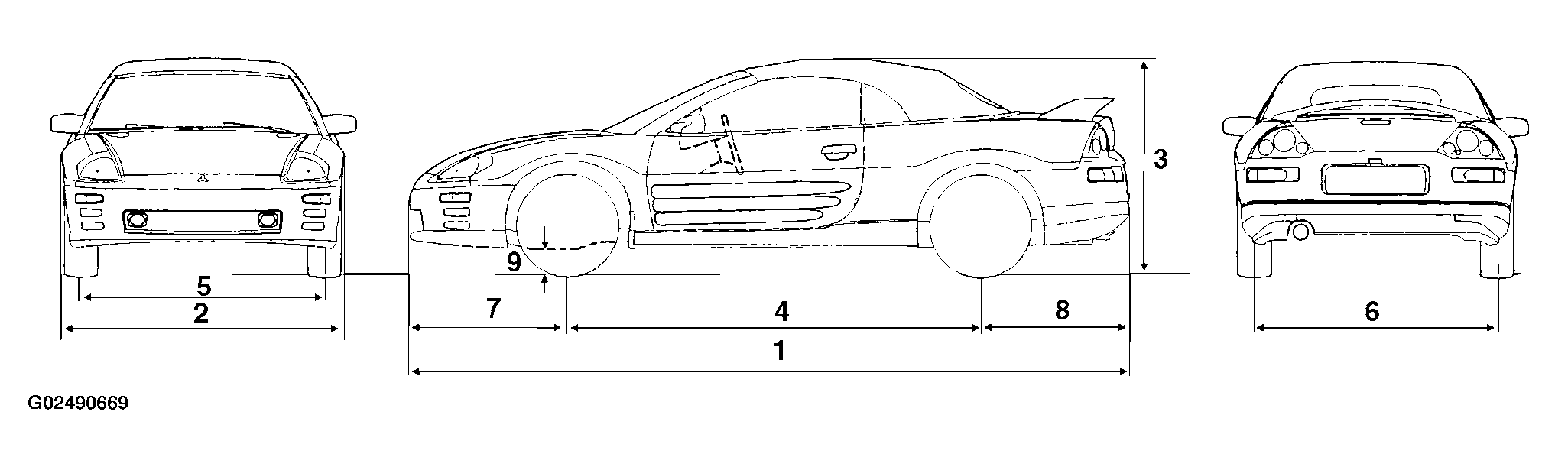

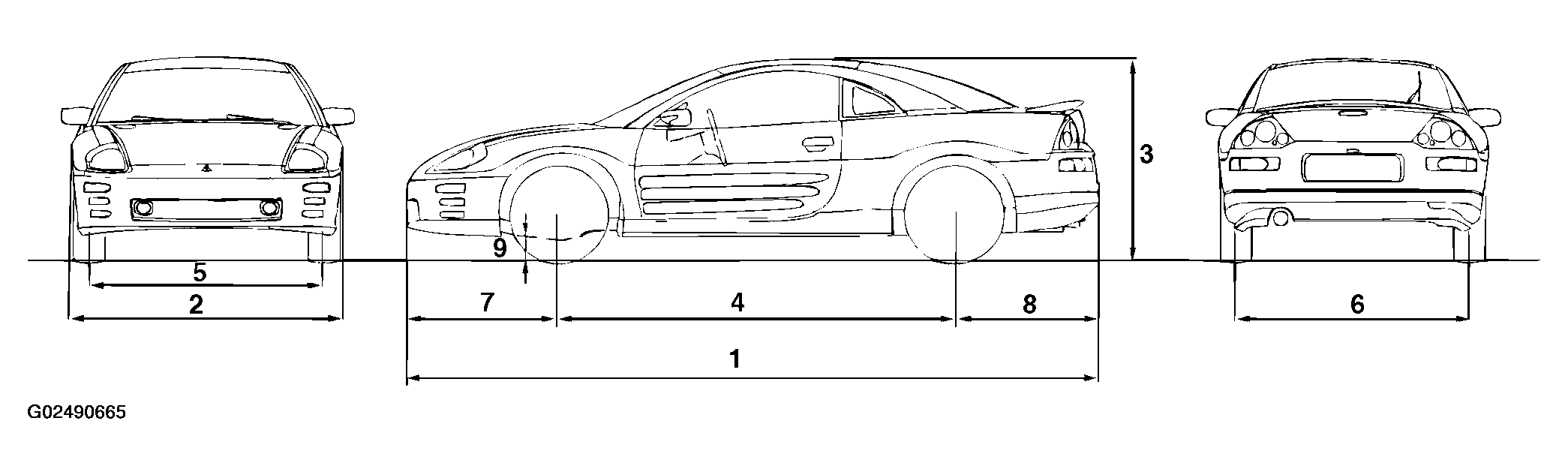

| Vehicle dimension mm (in) | Overall length | 1 | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) |
| Overall width | 2 | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | |
| Overall height (unladen) | 3 | 1,310 (51.6) | 1,310 (51.6) | 1,310 (51.6) | 1,310 (51.6) | |
| Wheel base | 4 | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | |
| Overhang-rear | 8 | 920 (36.2) | 920 (36.2) | 920 (36.2) | 920 (36.2) | |
| Minimum running ground clearance | 9 | 148 (5.8) | 148 (5.8) | 148 (5.8) | 148 (5.8) | |
| Vehicle weight kg (lb) | Curb weight | 1,320 (2,910) | 1,350 (2,976) | 1,345 (2,965) | 1,375 (3,031) | |
| Gross vehicle weight rating | 1,750 (3,859) | 1,750 (3,859) | 1,750 (3,859) | 1,750 (3,859) | ||
| Gross axle weight rating-front | 1,005 (2,216) | 1,005 (2,216) | 1,005 (2,216) | 1,005 (2,216) | ||
| Gross axle weight rating-rear | 795 (1,753) | 795 (1,753) | 795 (1,753) | 795 (1,753) | ||
| Seating capacity | 4 | |||||
| Engine | Model No. | 4G64 | ||||
| Displacement | 2.4L | |||||
| Transaxle | Model No. | F5M42 | F4A42 | F5M42 | F4A42 | |
| Type | 5-speed manual | 4-speed automatic | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
General Specifications (Models With 3.0L Engine Without Variable Induction System)
| ITEM | GT MNXEL4M/5M | GT MRXEL4M/5M | GT MNPEL5M | GT MRPEL5M | ||
|---|---|---|---|---|---|---|
| Vehicle dimension mm (in) | Overall length | 1 | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) |
| Overall width | 2 | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | |
| Overall height (unladen) | 3 | 1,310 (51.6) | 1,310 (51.6) | 1,310 (51.6) | 1,310 (51.6) | |
| Wheel base | 4 | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | |
| Overhang-rear | 8 | 920 (36.2) | 920 (36.2) | 920 (36.2) | 920 (36.2) | |
| Minimum running ground clearance | 9 | 150 (5.9) | 150 (5.9) | 150 (5.9) | 150 (5.9) | |
| Vehicle weight kg (lb) | Curb weight | 1,425 (3,142) | 1,455 (3,208) | 1,460 (3,219) | 1,490 (3,285) | |
| Gross vehicle weight rating | 1,820 (4,013) | 1,820 (4,013) | 1,820 (4,013) | 1,820 (4,013) | ||
| Gross axle weight rating-front | 1,075 (2,370) | 1,075 (2,370) | 1,075 (2,370) | 1,075 (2,370) | ||
| Gross axle weight rating-rear | 795 (1,753) | 795 (1,753) | 795 (1,753) | 795 (1,753) | ||
| Seating capacity | 4 | |||||
| Engine | Model No. | 6G72 | ||||
| Displacement | 3.0L | |||||
| Transaxle | Model No. | F5M51 | F4A51 | F5M51 | F4A51 | |
| Type | 5-speed manual | 4-speed automatic | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
General Specifications (Models with 2.4L Engine)
| ITEM | GS BNHEL4M/5M/9M | GS BRHEL4M/5M/9M | ||
|---|---|---|---|---|
| Vehicle dimension mm (in) | Overall length | 1 | 4,490 (176.8) | 4,490 (176.8) |
| Overall width | 2 | 1,750 (68.9) | 1,750 (68.9) | |
| Overall height (unladen) | 3 | 1,340 (52.8) | 1,340 (52.8) | |
| Wheelbase | 4 | 2,560 (100.8) | 2,560 (100.8) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,010 (39.8) | 1,010 (39.8) | |
| Overhang-rear | 8 | 920 (36.2) | 920 (36.2) | |
| Minimum running ground clearance | 9 | 163 (6.4) | 163 (6.4) | |
| Vehicle weight kg (lb) | Curb weight | 1,405 (3,097) | 1,435 (3,164) | |
| Gross vehicle weight rating | 1,770 (3,903) | 1,770 (3,903) | ||
| Gross axle weight rating-front | 1,010 (2,227) | 1,010 (2,227) | ||
| Gross axle weight rating-rear | 810 (1,786) | 810 (1,786) | ||
| Seating capacity | 4 | |||
| Engine | Model No. | 4G64 | ||
| Displacement | 2.4L | |||
| Transaxle | Model No. | F5M42 | F4A42 | |
| Type | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||
General Specifications (Models With 3.0L Engine Without Variable Induction System)
| ITEM | GT BNXEL5M | GT BRXEL5M | GT BNGEL5M | GT BRGEL5M | ||
|---|---|---|---|---|---|---|
| Vehicle dimension mm (in) | Overall length | 1 | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) |
| Overall width | 2 | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | |
| Overall height (unladen) | 3 | 1,340 (52.8) | 1,340 (52.8) | 1,340 (52.8) | 1,340 (52.8) | |
| Wheelbase | 4 | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | |
| Overhang-rear | 8 | 920 (36.2) | 920 (36.2) | 920 (36.2) | 920 (36.2) | |
| Minimum running ground clearance | 9 | 165 (6.5) | 165 (6.5) | 165 (6.5) | 165 (6.5) | |
| Vehicle weight kg (lb) | Curb weight | 1,490 (3,285) | 1,520 (3,351) | 1,500 (3,307) | 1,530 (3,373) | |
| Gross vehicle weight rating | 1,865 (4,112) | 1,865 (4,112) | 1,865 (4,112) | 1,865 (4,112) | ||
| Gross axle weight rating-front | 1,095 (2,414) | 1,095 (2,414) | 1,095 (2,414) | 1,095 (2,414) | ||
| Gross axle weight rating-rear | 820 (1,808) | 820 (1,808) | 820 (1,808) | 820 (1,808) | ||
| Seating capacity | 4 | |||||
| Engine | Model No. | 6G72 | ||||
| Displacement | 3.0L | |||||
| Transaxle | Model No. | F5M51 | F4A51 | F5M51 | F4A51 | |
| Type | 5-speed manual | 4-speed automatic | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
General Specifications (Models With 3.0L Engine With Variable Induction System)
| ITEM | GT BNXVL4M | GT BRXVL4M | GTS BNGVL4M | GTS BRGVL4M | ||
|---|---|---|---|---|---|---|
| Vehicle dimension mm (in) | Overall length | 1 | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) | 4,490 (176.8) |
| Overall width | 2 | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | 1,750 (68.9) | |
| Overall height (unladen) | 3 | 1,340 (52.8) | 1,340 (52.8) | 1,340 (52.8) | 1,340 (52.8) | |
| Wheelbase | 4 | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | 2,560 (100.8) | |
| Tread-front | 5 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Tread-rear | 6 | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | 1,510 (59.4) | |
| Overhang-front | 7 | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | 1,010 (39.8) | |
| Overhang-rear | 8 | 920 (36.2) | 920 (36.2) | 920 (36.2) | 920 (36.2) | |
| Minimum running ground clearance | 9 | 165 (6.5) | 165 (6.5) | 165 (6.5) | 165 (6.5) | |
| Vehicle weight kg (lb) | Curb weight | 1,495 (3,296) | 1,525 (3,362) | 1,510 (3,329) | 1,540 (3,395) | |
| Gross vehicle weight rating | 1,865 (4,112) | 1,865 (4,112) | 1,865 (4,112) | 1,865 (4,112) | ||
| Gross axle weight rating-front | 1,095 (2,414) | 1,095 (2,414) | 1,095 (2,414) | 1,095 (2,414) | ||
| Gross axle weight rating-rear | 820 (1,808) | 820 (1,808) | 820 (1,808) | 820 (1,808) | ||
| Seating capacity | 4 | |||||
| Engine | Model No. | 6G72 | ||||
| Displacement | 3.0L | |||||
| Transaxle | Model No. | F5M51 | F4A51 | F5M51 | F4A51 | |
| Type | 5-speed manual | 4-speed automatic | 5-speed manual | 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
