FixVault
Home
›
Mitsubishi
›
2005
›
Eclipse GS, Standard
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Supplemental Restraint System
›
SRS Control Unit (SRS-Ecu)
›
Removal And Installation
›
Notes
Removal And Installation: Notes

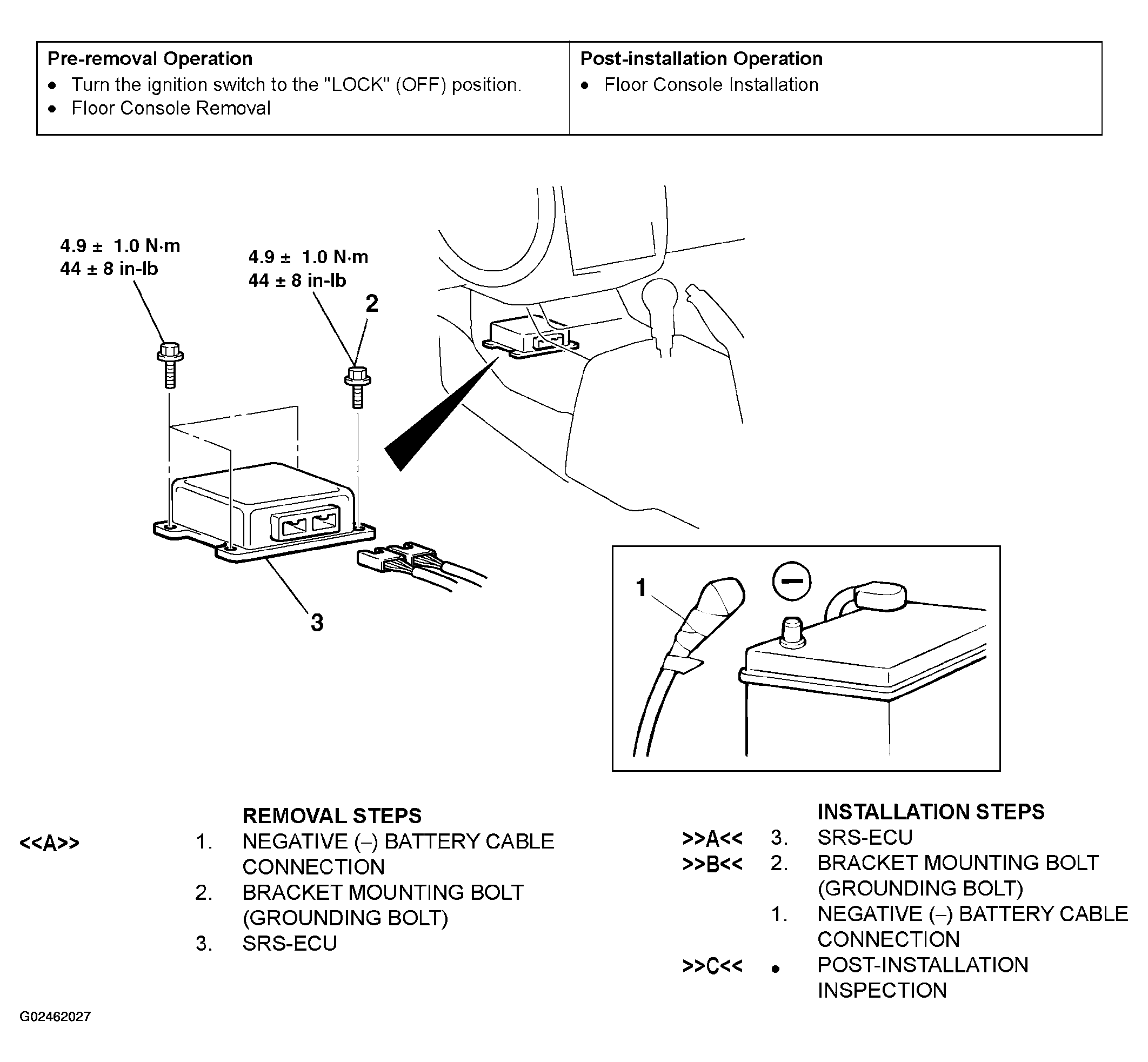

Fig 1: Removing/Installing Of SRS Control Unit (SRS-ECU)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
