On-Vehicle Service: General Description: Notes

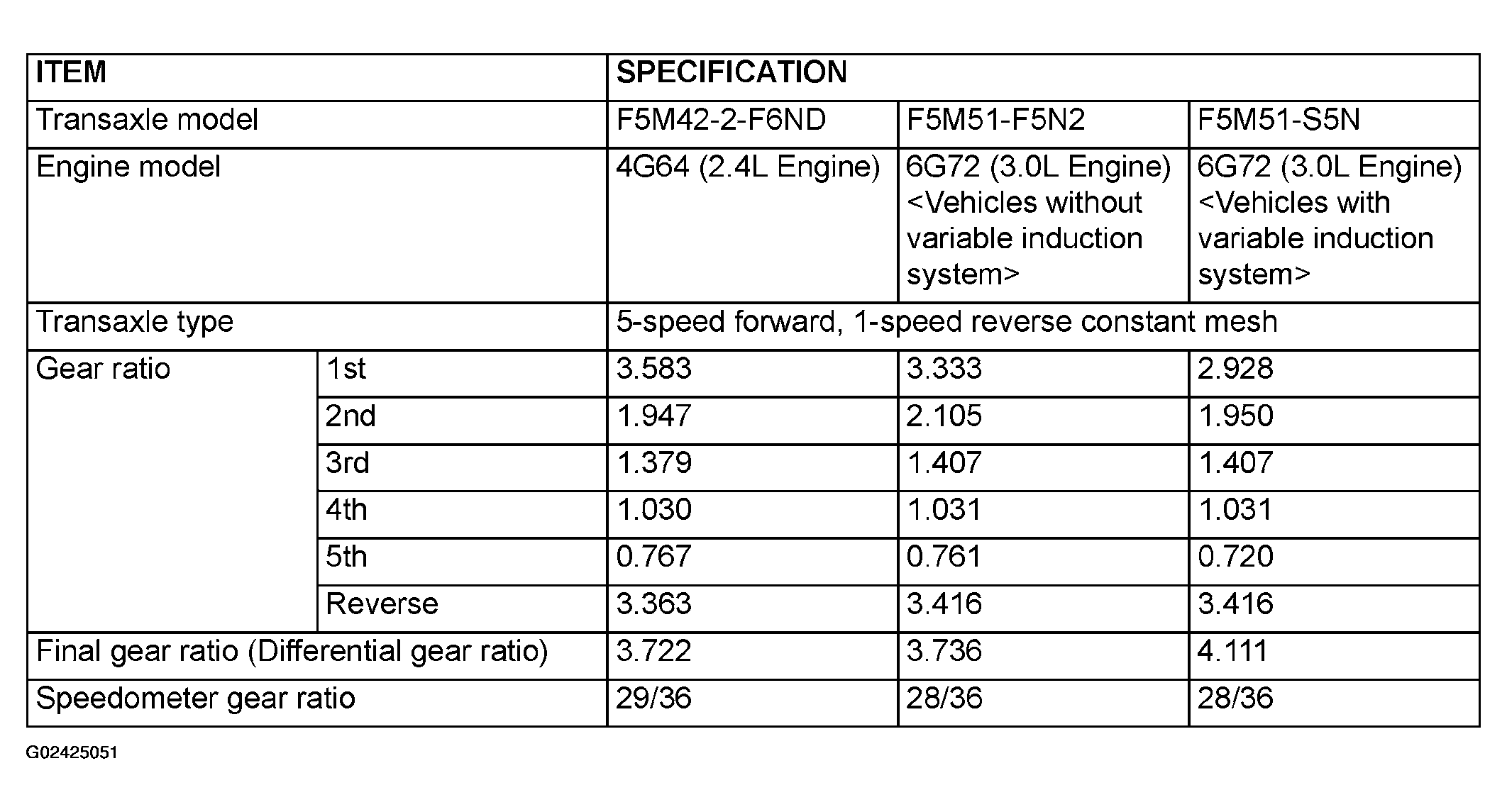

Fig 1: Manual Transaxle - General Description Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
