Removal And Installation: Notes

WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the shift cable and select cable assembly.

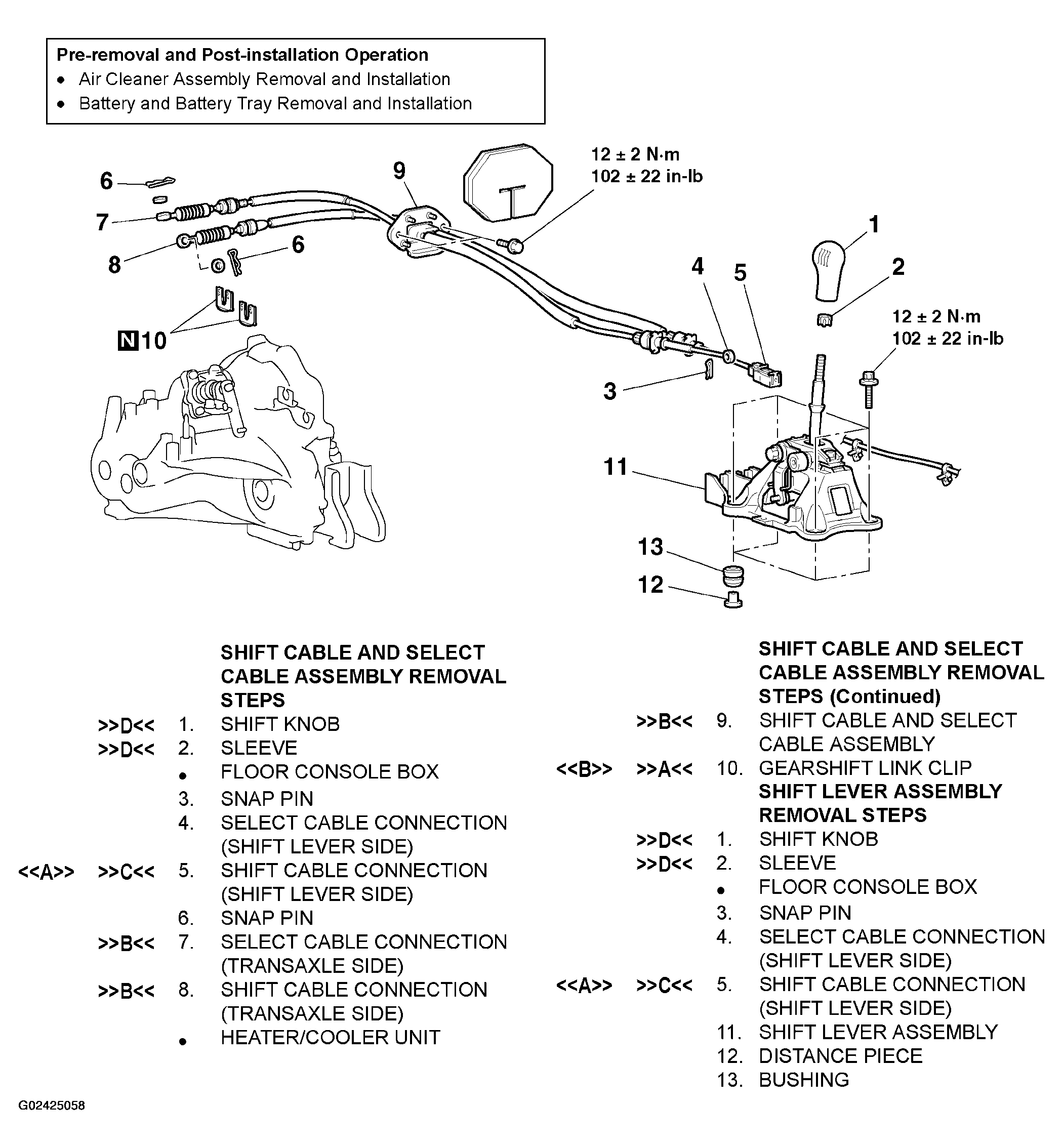

Fig 1: Removing/Installing Transaxle Control

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
