Special Tools
Special Tools

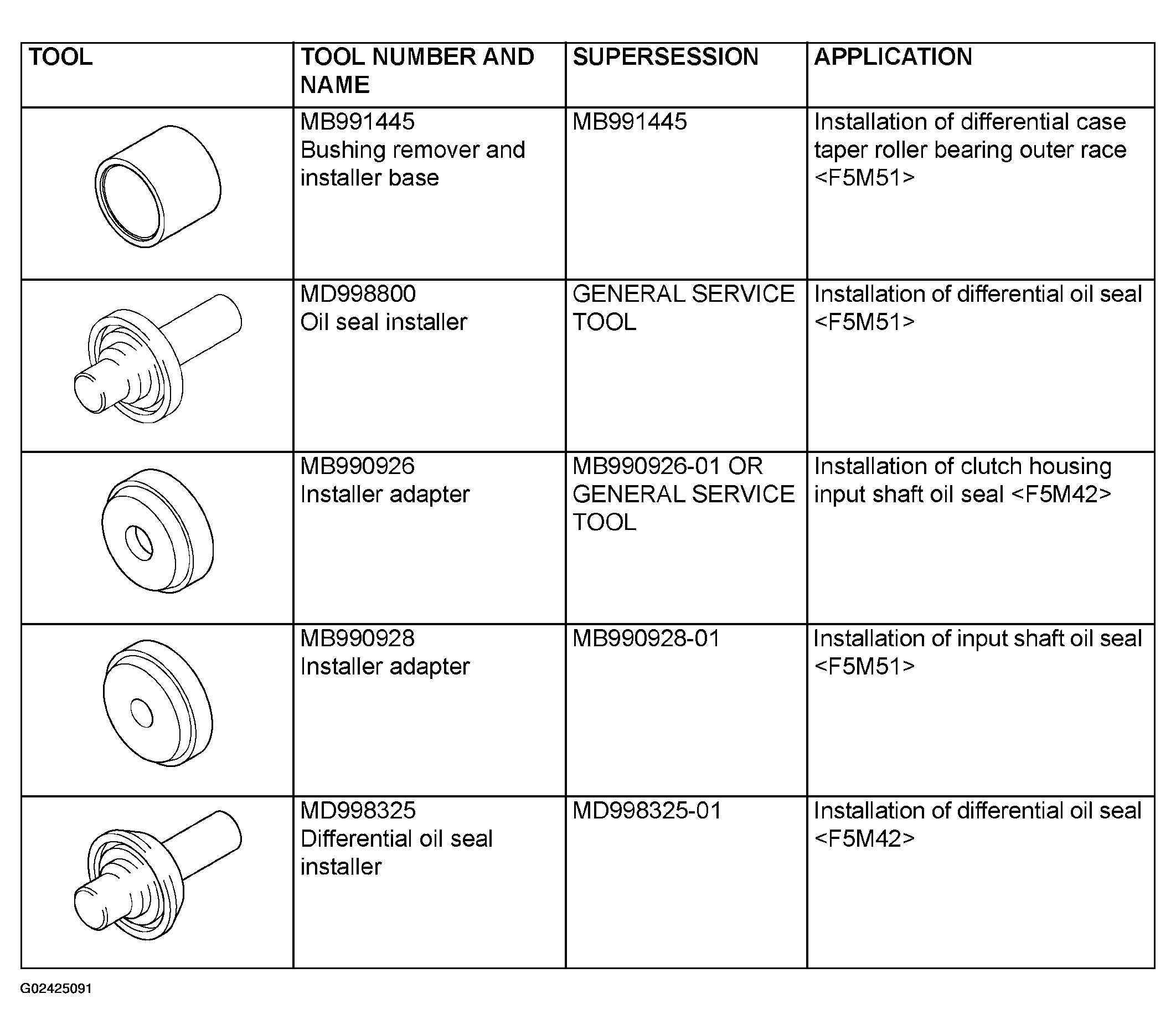

Fig 1: Special Tools Description Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

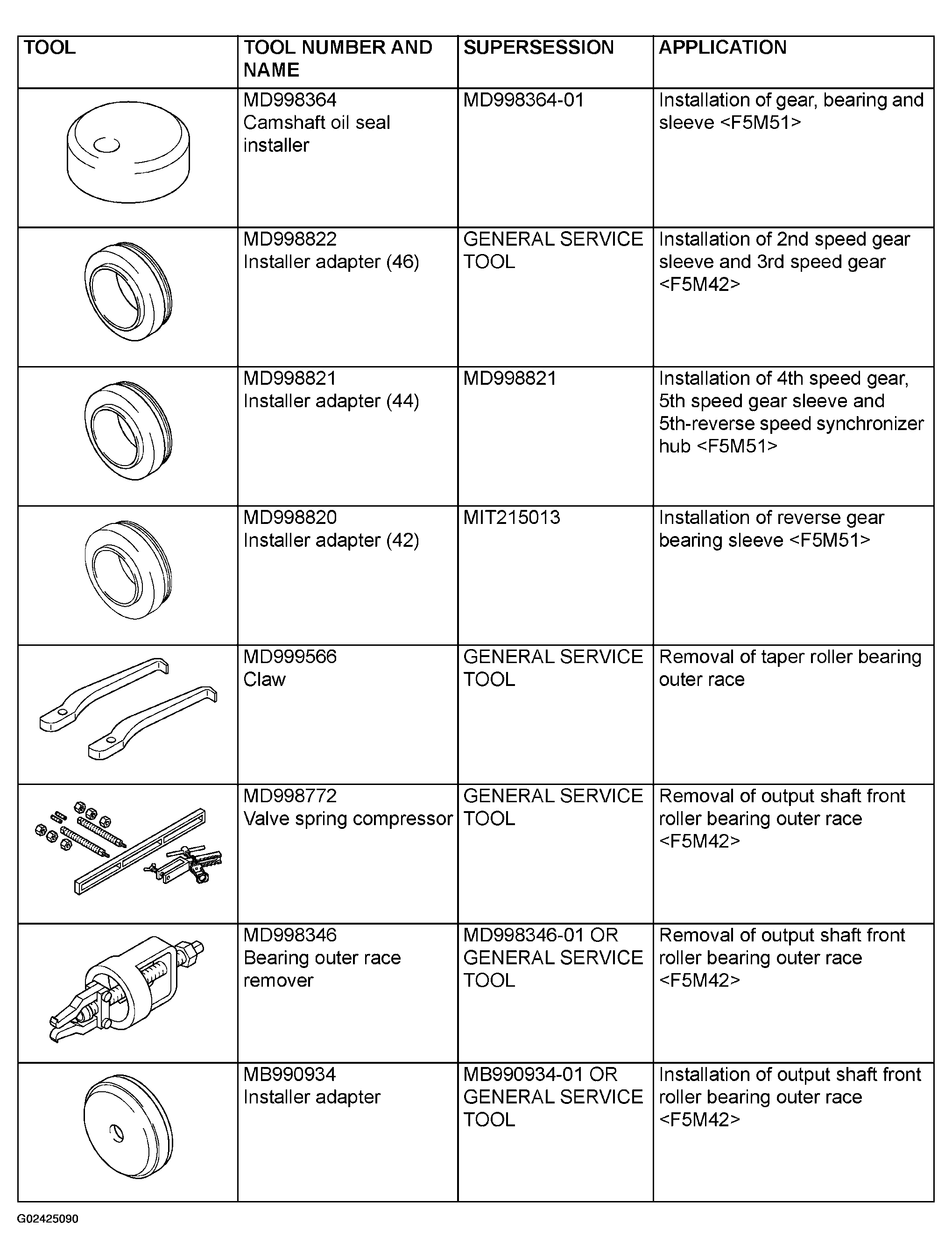

Fig 2: Special Tools Description Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

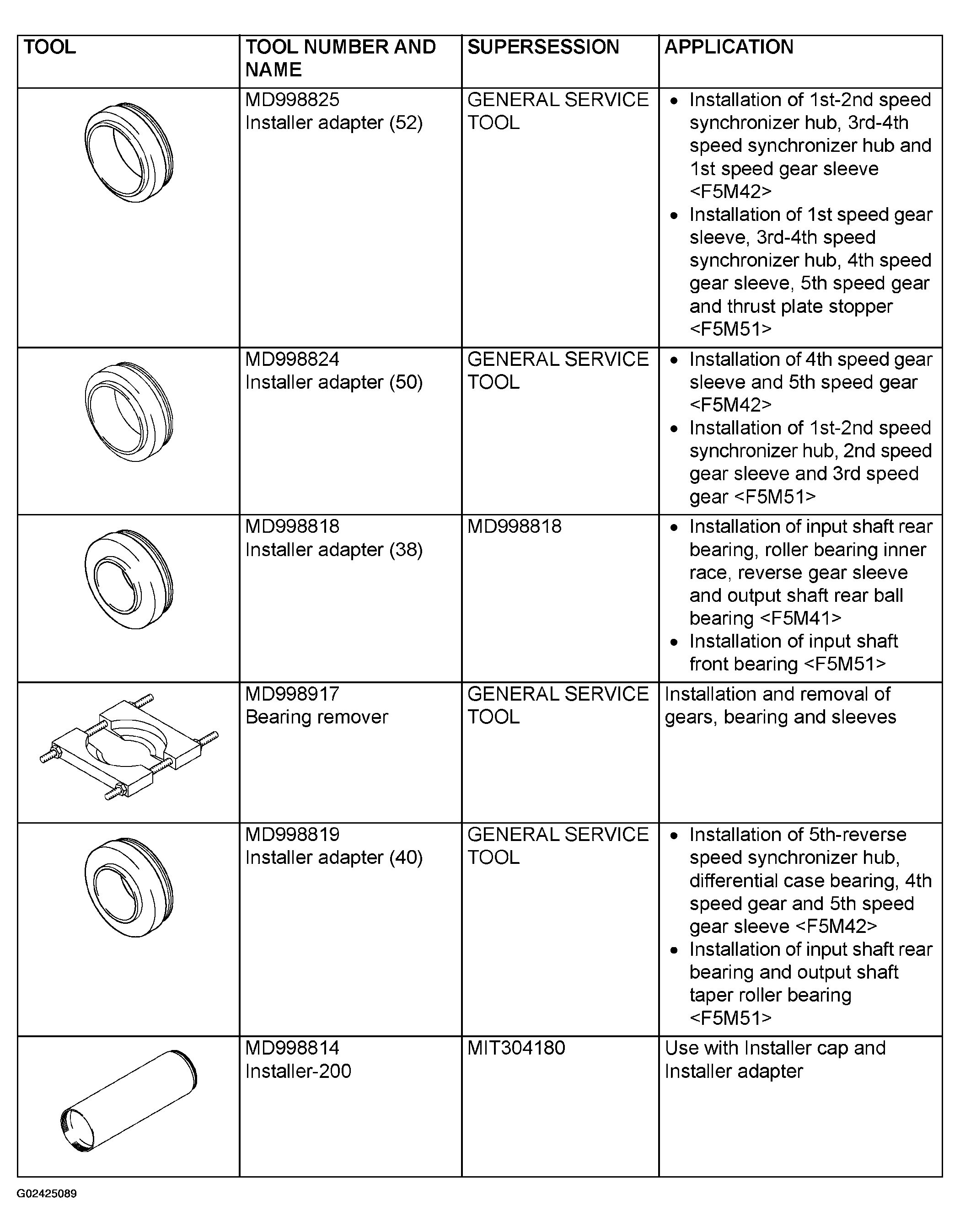

Fig 3: Special Tools Description Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

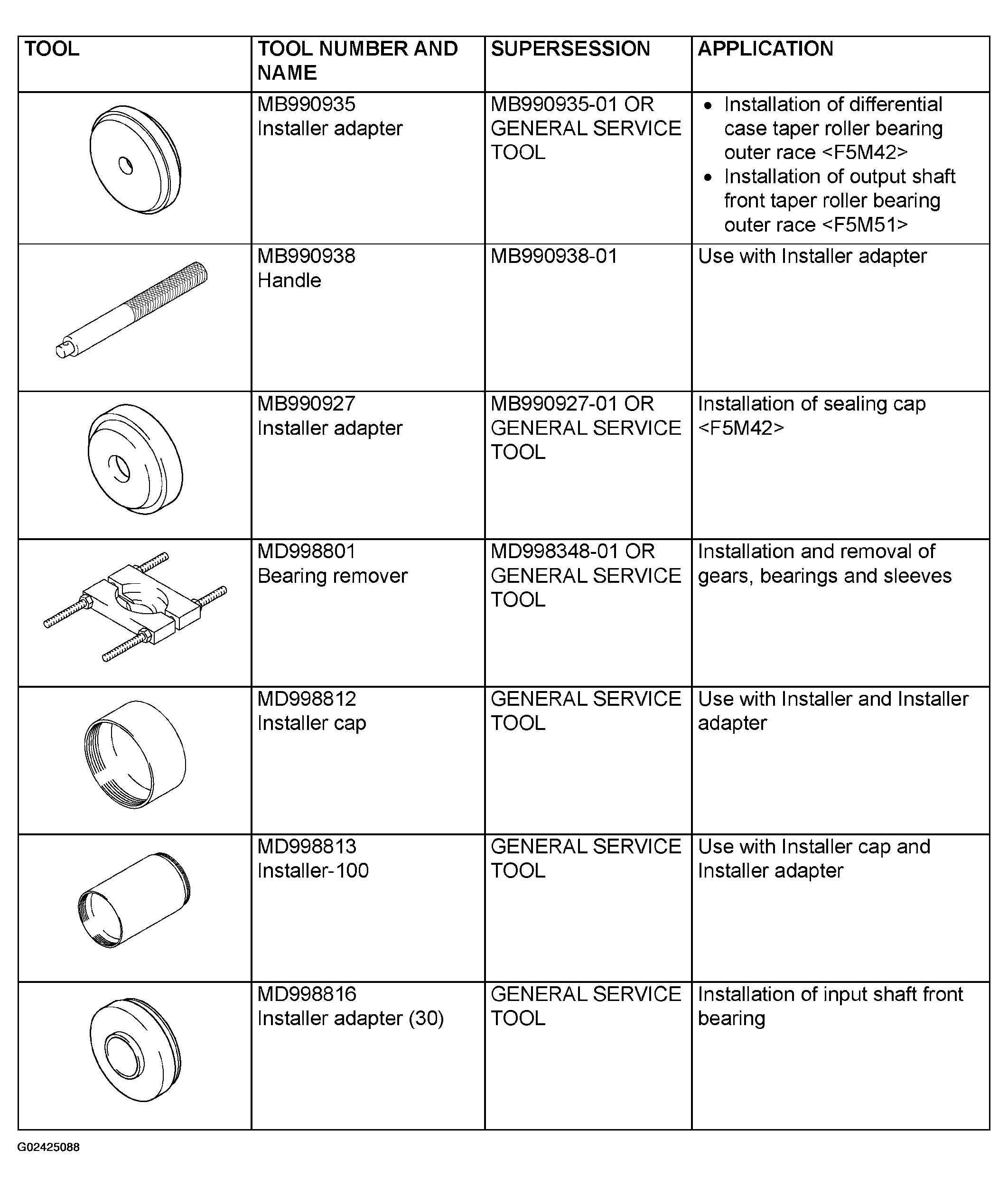

Fig 4: Special Tools Description Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
