Rear Window Defogger Switch

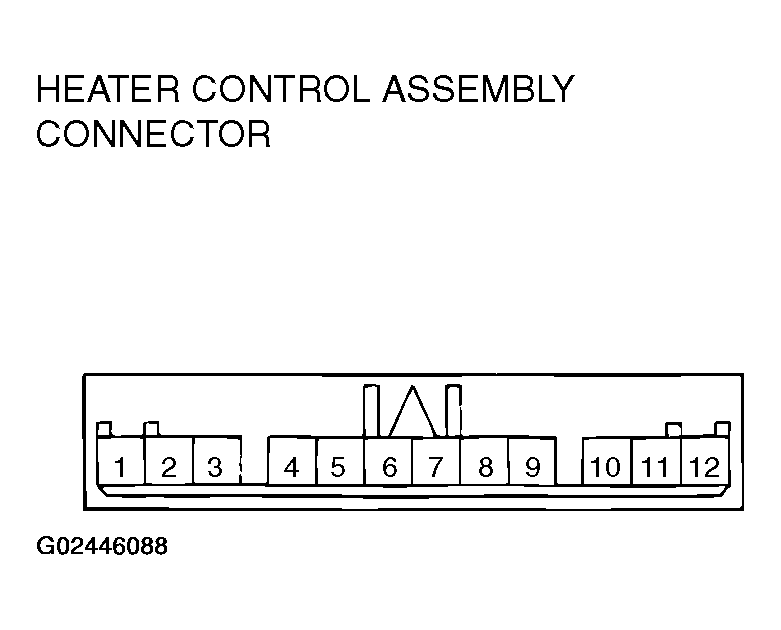

Fig 1: Identifying Heater Assembly Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SWITCH POSITION VALUE CHART

SWITCH POSITION	TESTER CONNECTION	SPECIFIED CONDITION
OFF	11 - 12	Open circuit
ON	11 - 12	Less than 2 ohms
