Ignition Switch
›
Removal And Installation
›
Notes
Removal And Installation: Notes

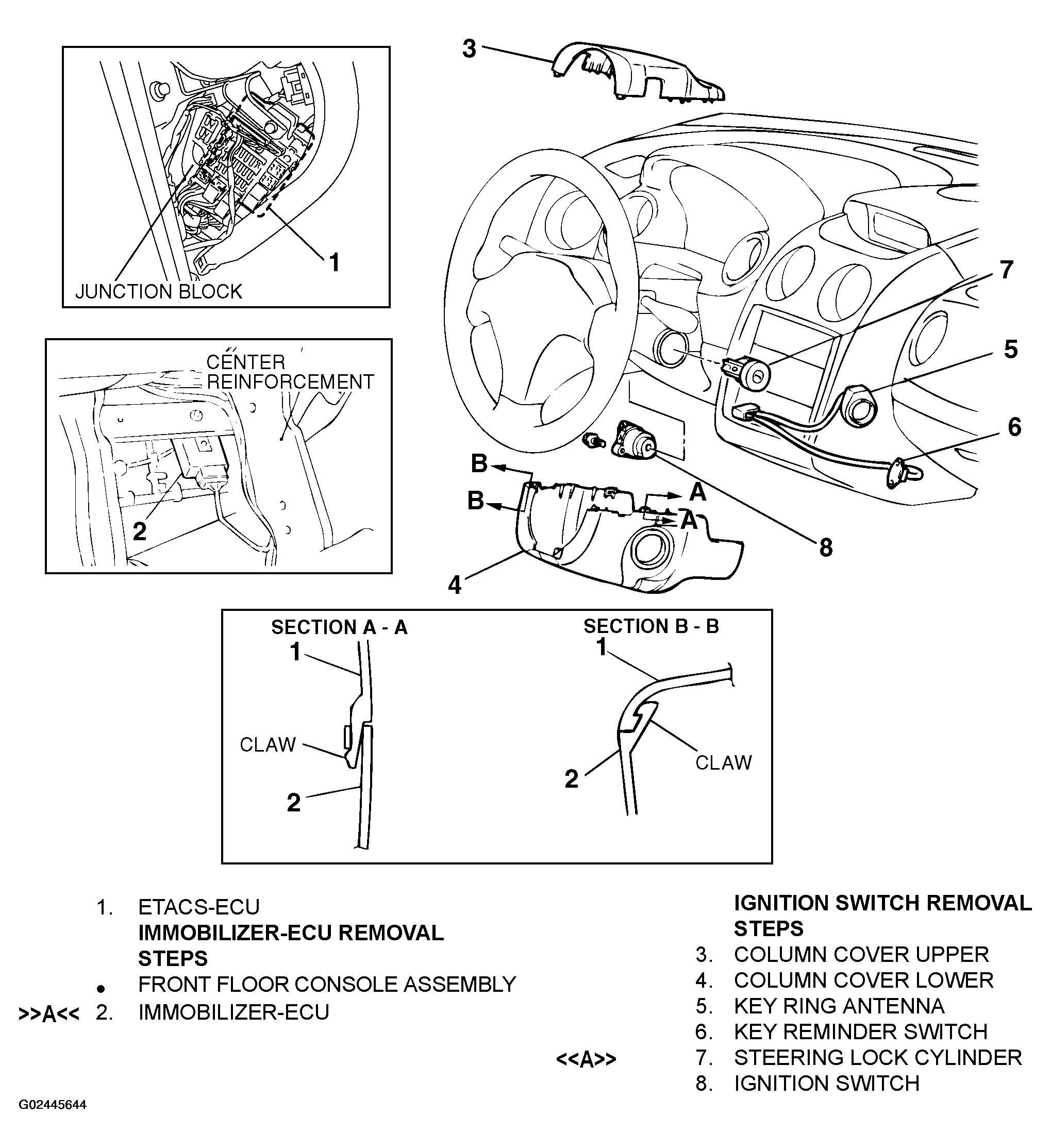

Fig 1: Removing/Installing Ignition Switch And Immobilizer-ECU
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
