Disassembly And Assembly: Notes

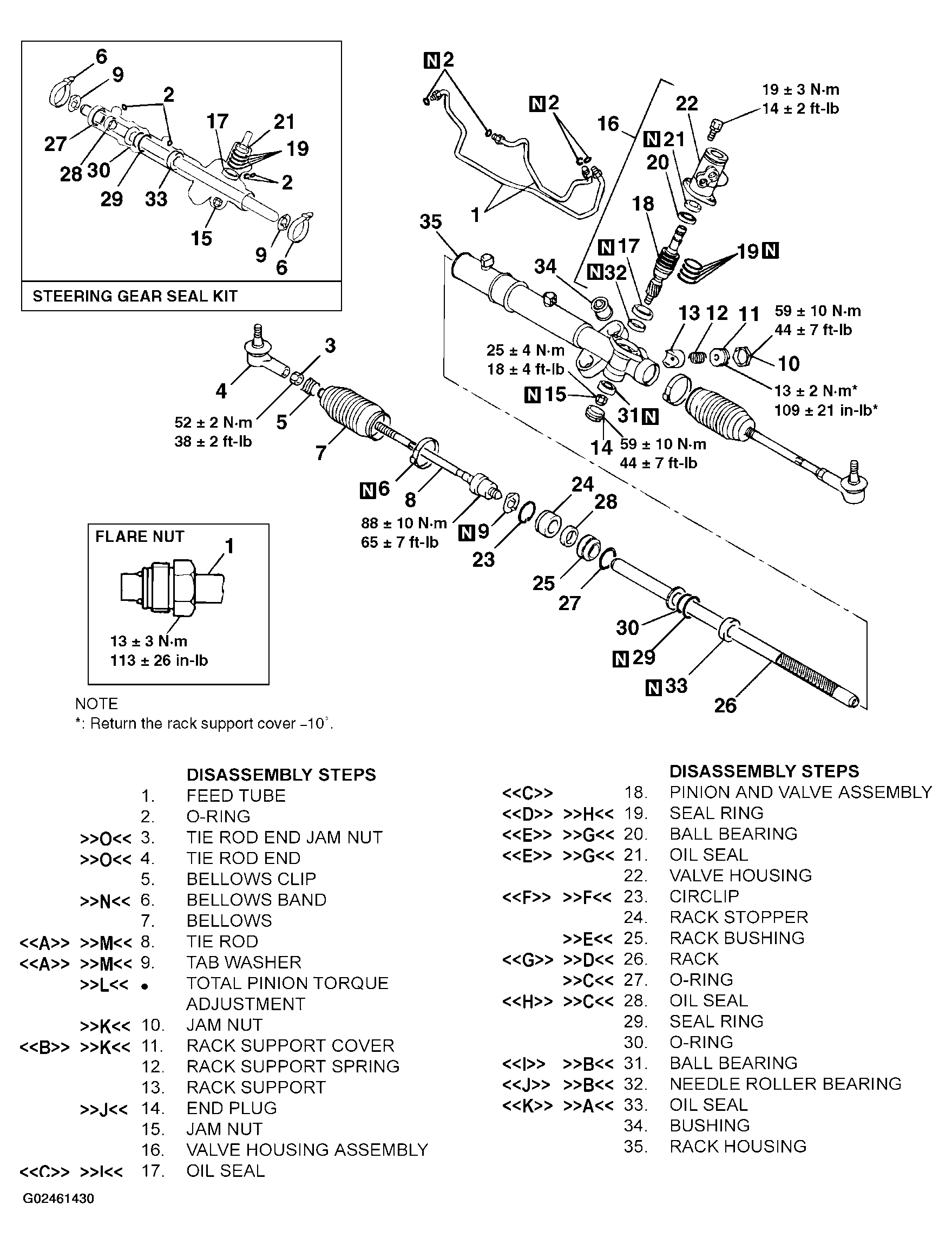

Fig 1: Disassembling /Assembling Power Steering Gear Box Assembly
G02461430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
