Defogger Relay Check

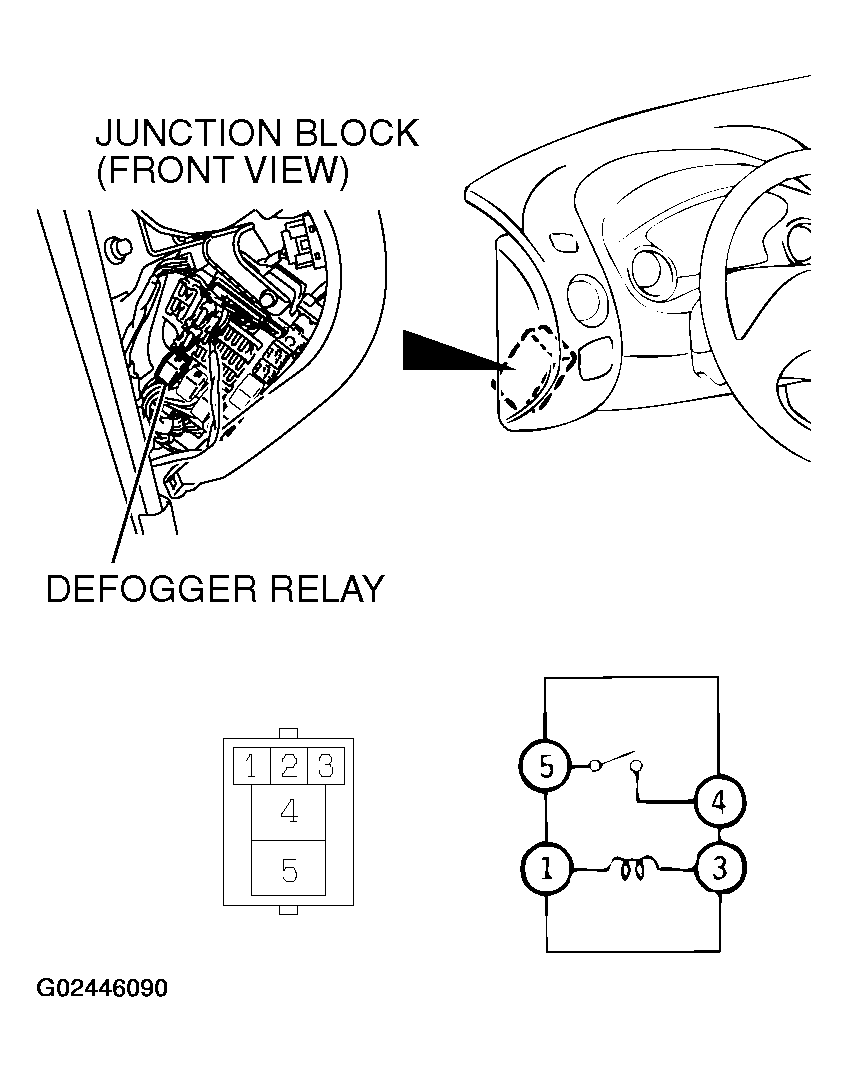

Fig 1: Checking Defogger Relay
G02446090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

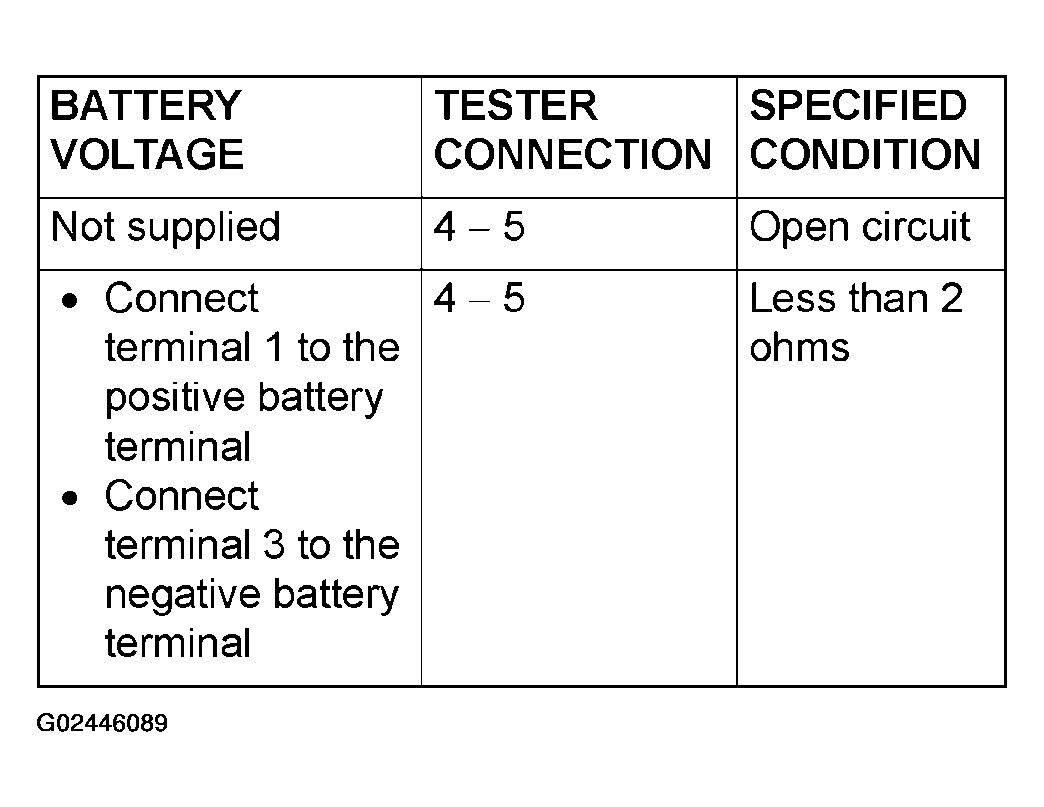

Fig 2: Specification Chart
G02446089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
