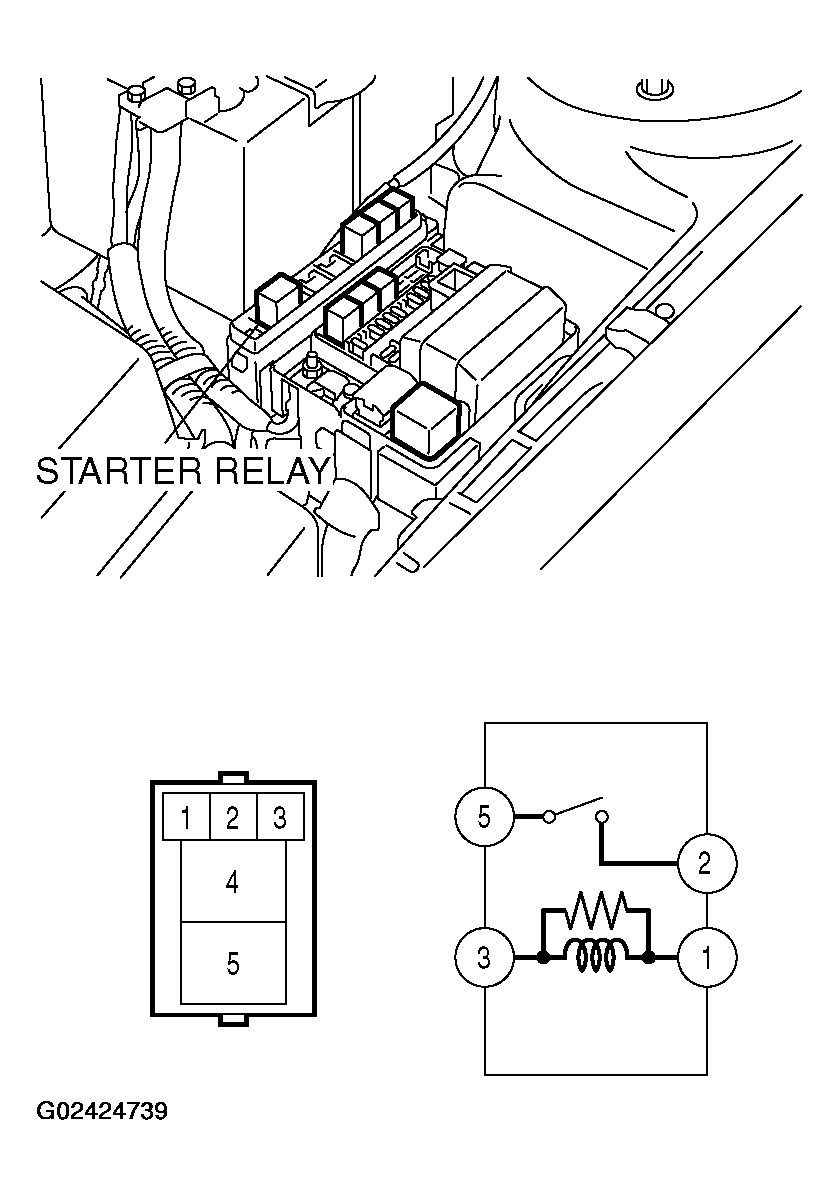

Starter Relay Check
STARTER RELAY CONTINUITY CONDITIONS
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
5 - 2 |
Open circuit |
| Connect terminal 1 to negative battery terminal. Connect terminal 3 to positive battery terminal. |
5 - 2 |
Less than 2 ohm |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
