Check Auto-Cruise Control-Ecu Terminals

Fig 1: Identifying Auto-Cruise Control-ECU Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

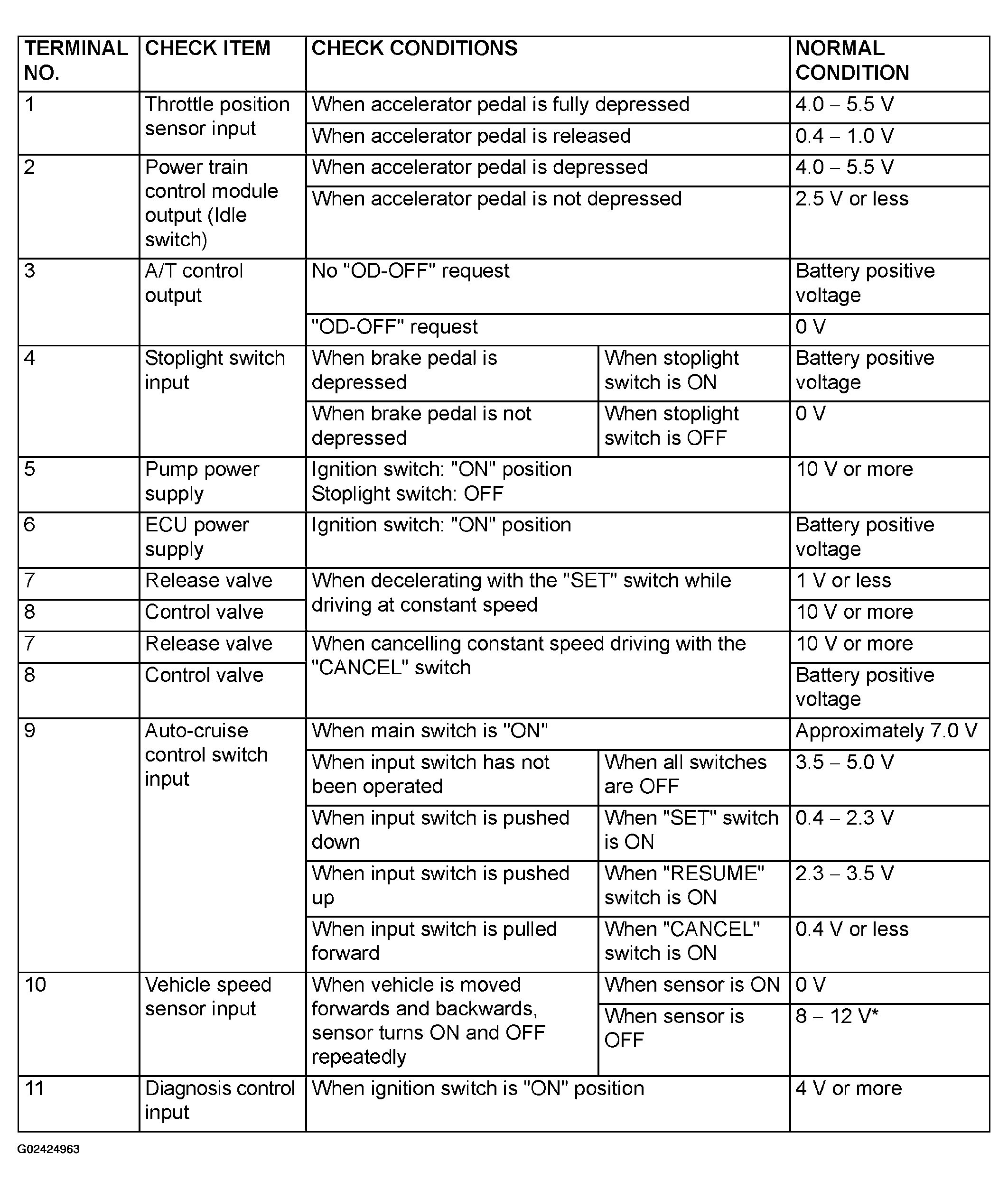

Fig 2: Data List Reference Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

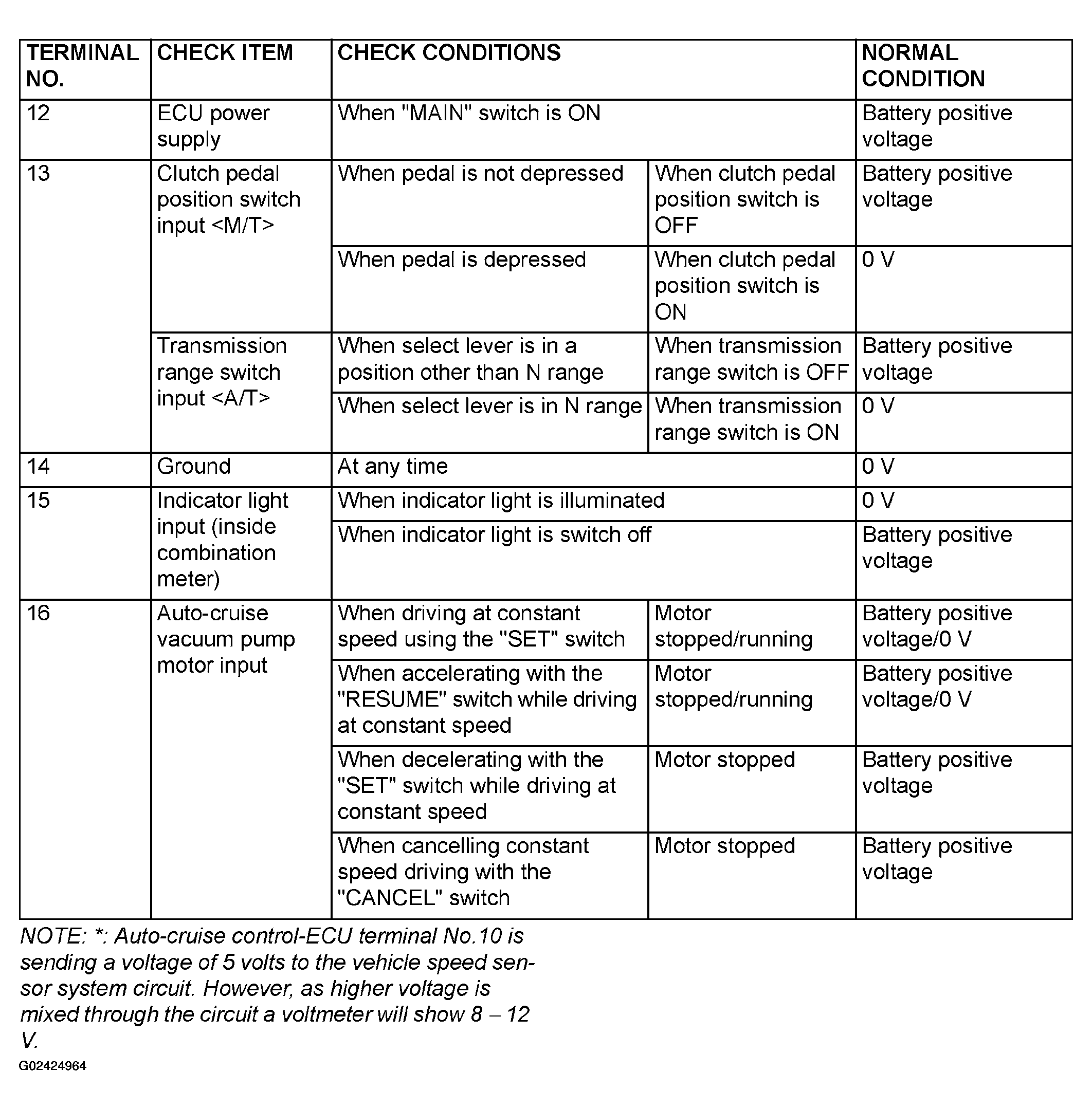

Fig 3: Data List Reference Chart (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
