Eclipse GTS, Standard
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Supplemental Restraint System
›
Diagnostic Trouble Code Procedures
›
DTC 94: Right Hand Side-Impact Sensor Power Supply Circuit System
›
Notes
DTC 94: Right Hand Side-Impact Sensor Power Supply Circuit System: Notes

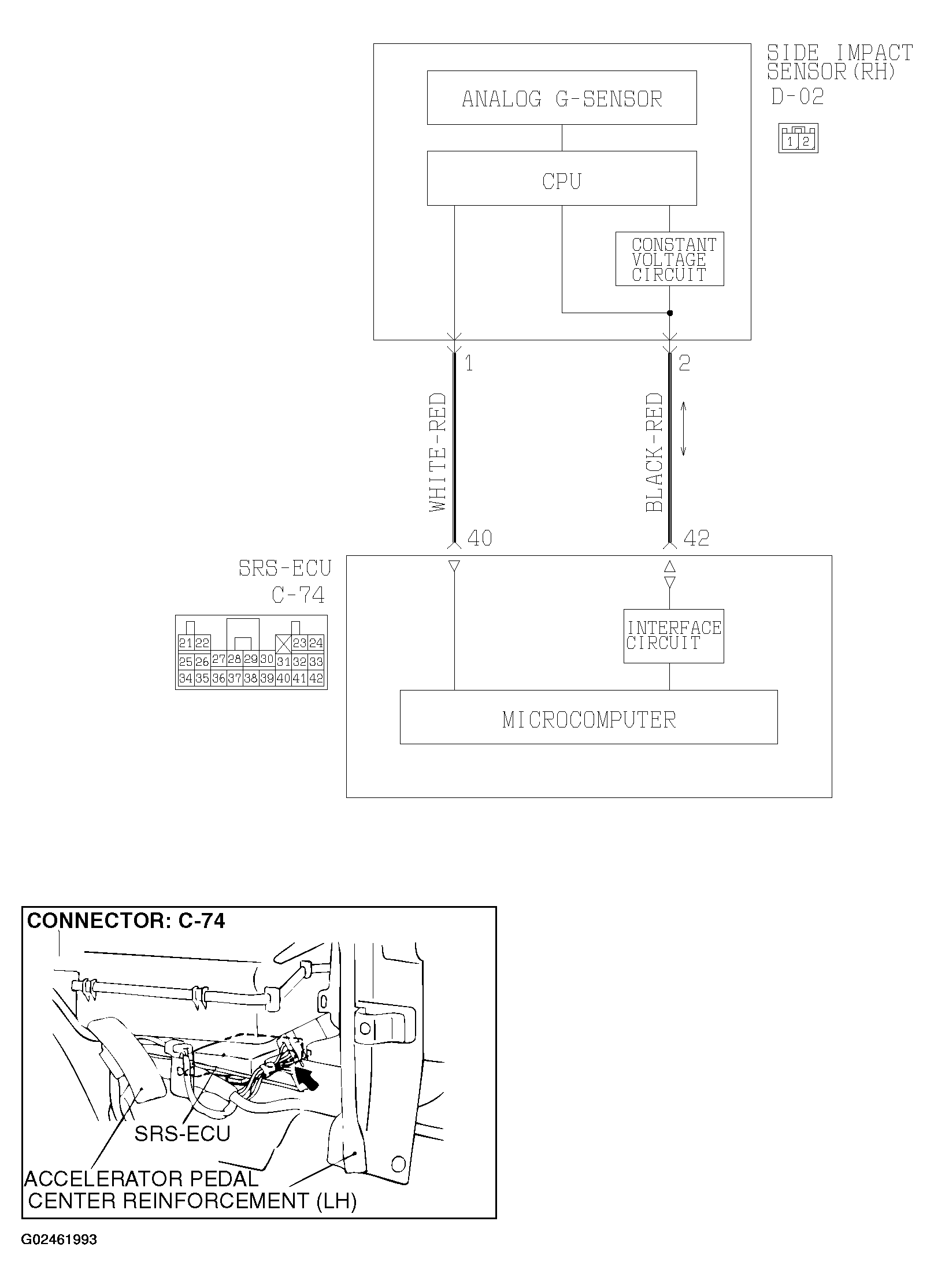

Fig 1: Side Impact Sensor (RH) Power Supply Circuit Diagram & Connector Identification (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

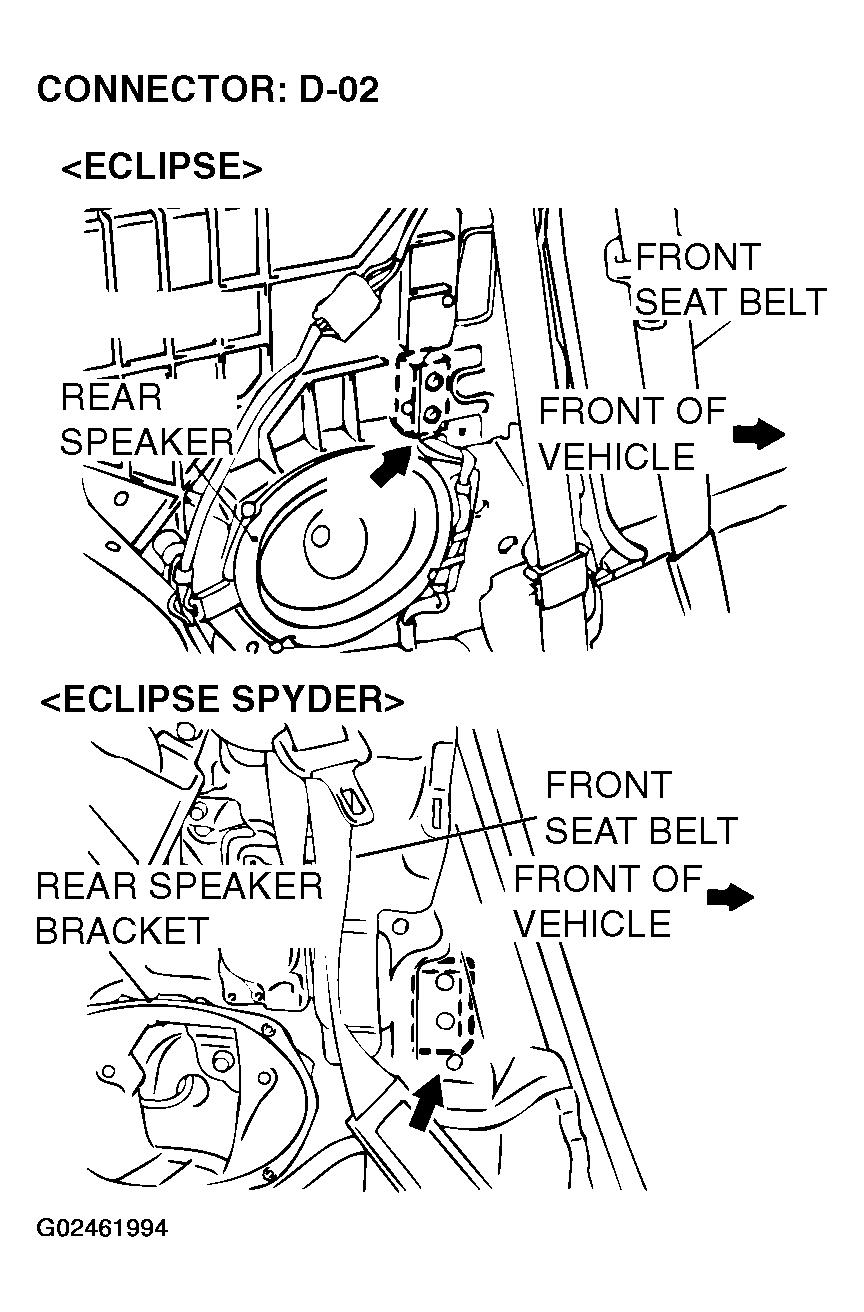

Fig 2: Side Impact Sensor (RH) Power Supply Circuit Diagram & Connector Identification (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
