General Description
›
Configuration Diagrams
Configuration Diagrams

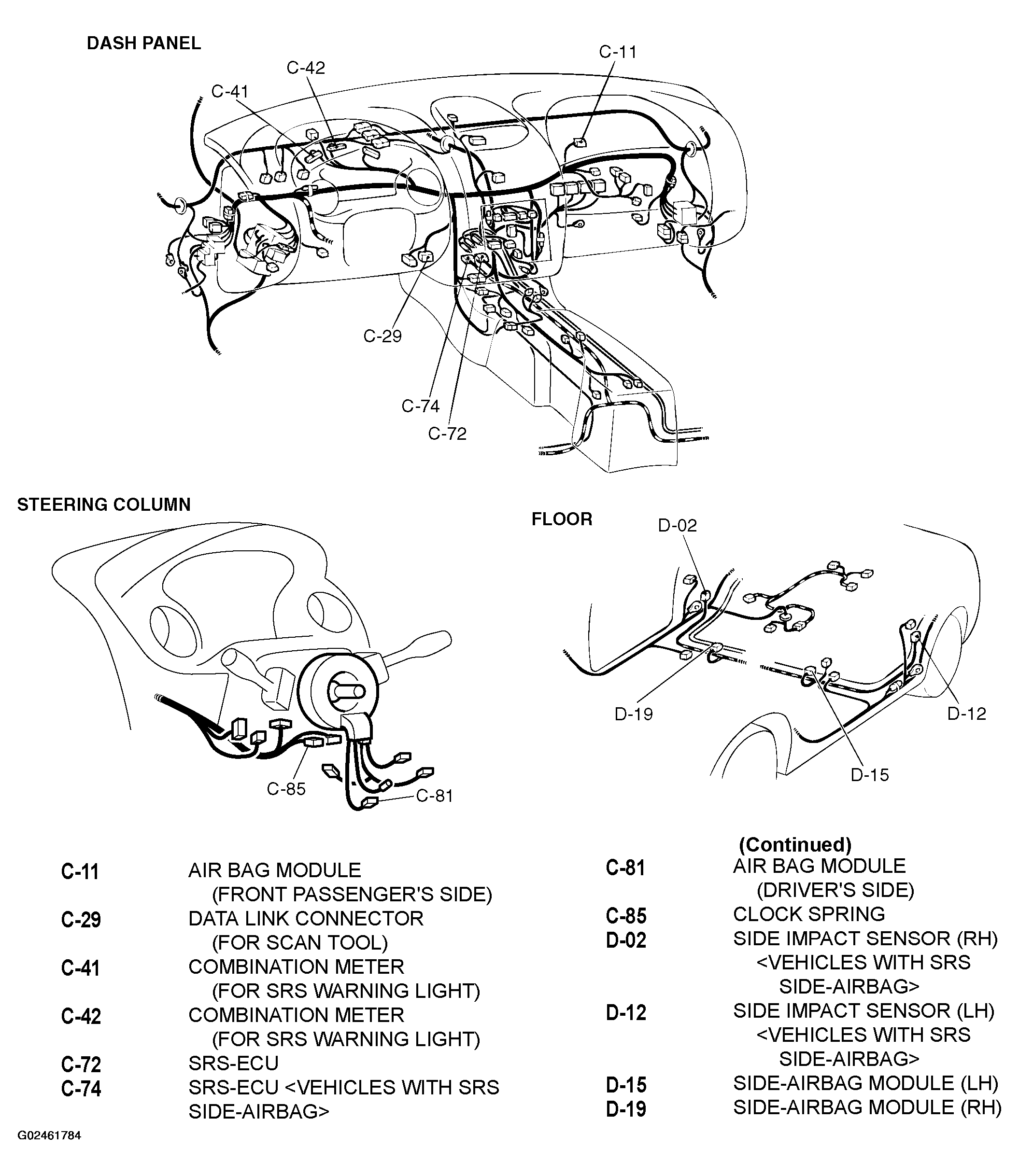

Fig 1: Dash Panel And Steering Column - Configuration Diagrams
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
