Home › Mitsubishi › 2005 › Eclipse Spyder GS, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Overhaul › Planetary Gear › Disassembly And Assembly › Notes

Disassembly And Assembly: Notes

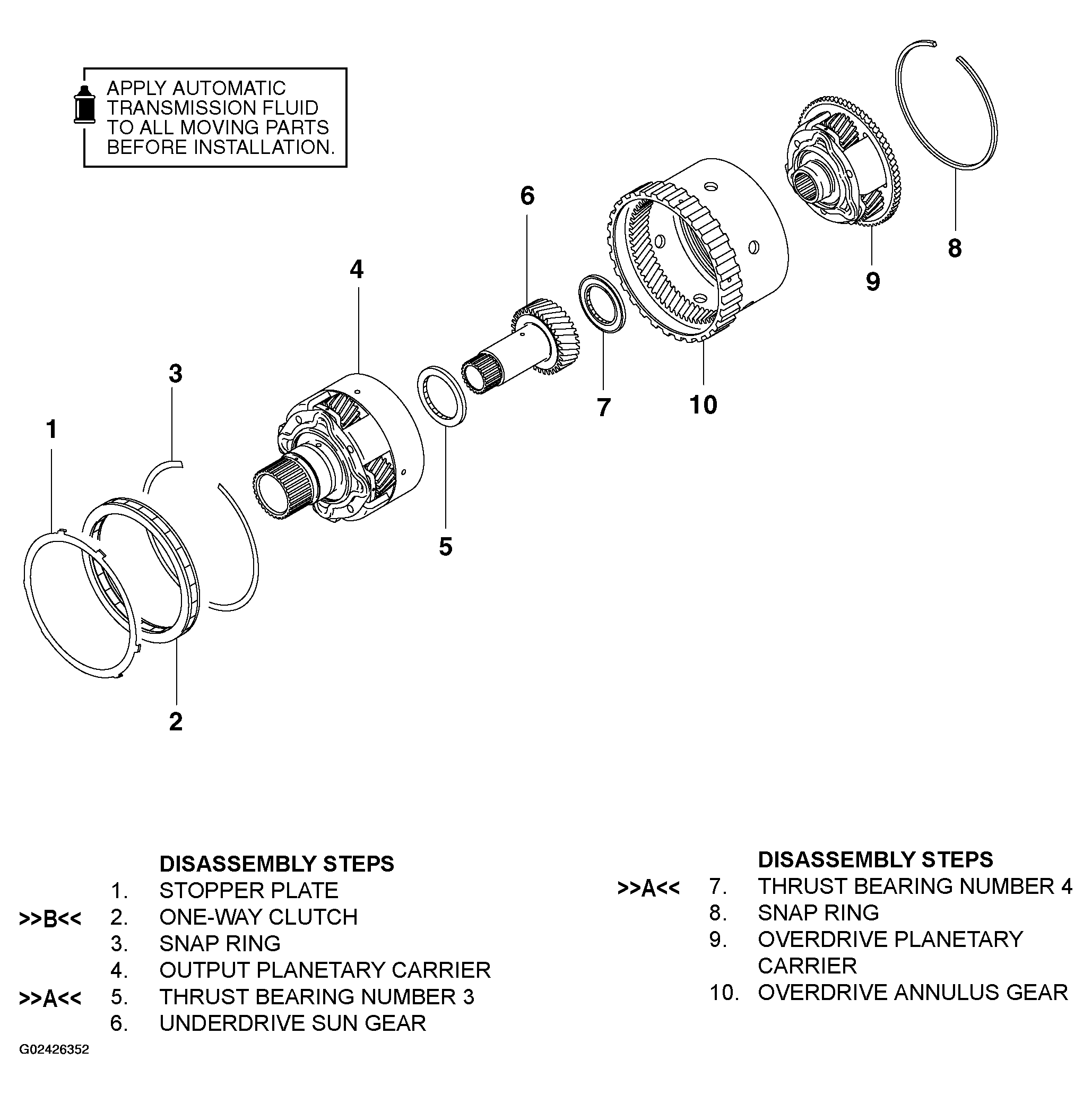

Fig 1: Disassembling/Assembling Planetary Gear
G02426352Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
