Disassembly And Assembly: Notes

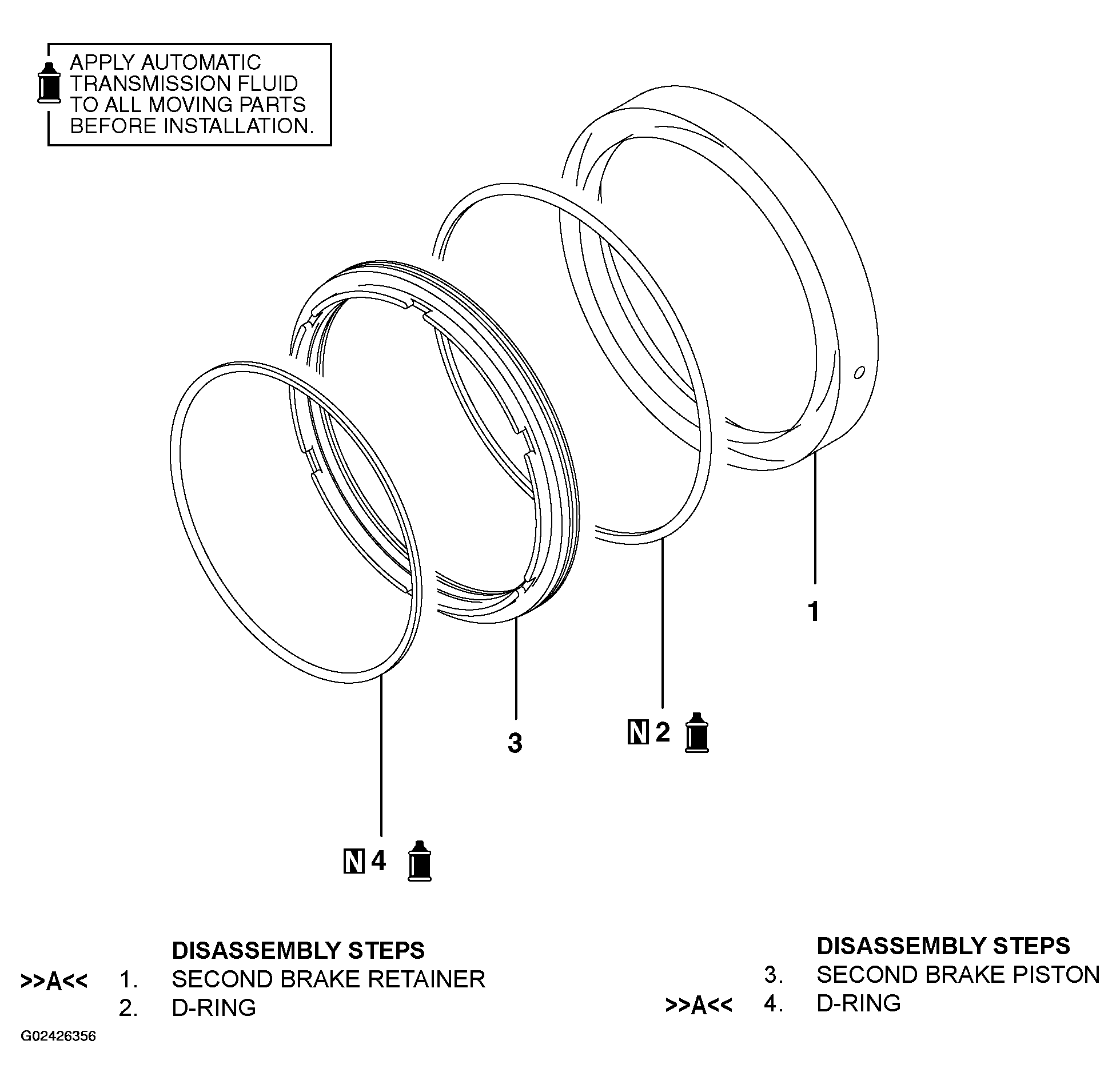

Fig 1: Disassembling/Assembling Second Brake

G02426356

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
