Removal And Installation: Notes

NOTE:

• The ABS-ECU is integrated in the hydraulic unit.
• For vehicles with ASC, refer to HYDRAULIC UNIT .

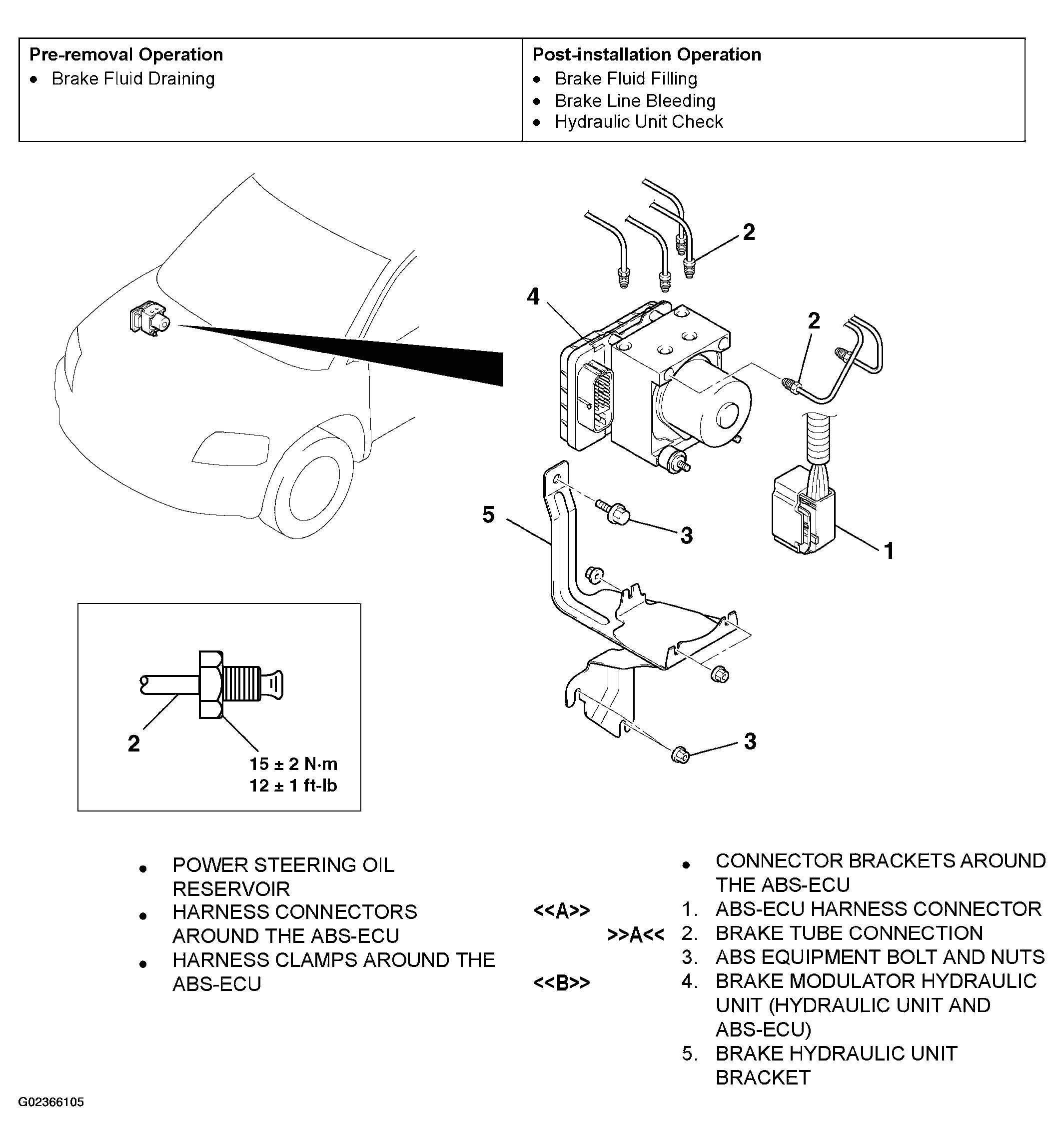

Fig 1: Removing/Installing Hydraulic Unit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
