During Normal Braking: Notes

The brake fluid flows from the master cylinder to the cut valve and the inlet valve to supply fluid pressure to the relevant wheels.

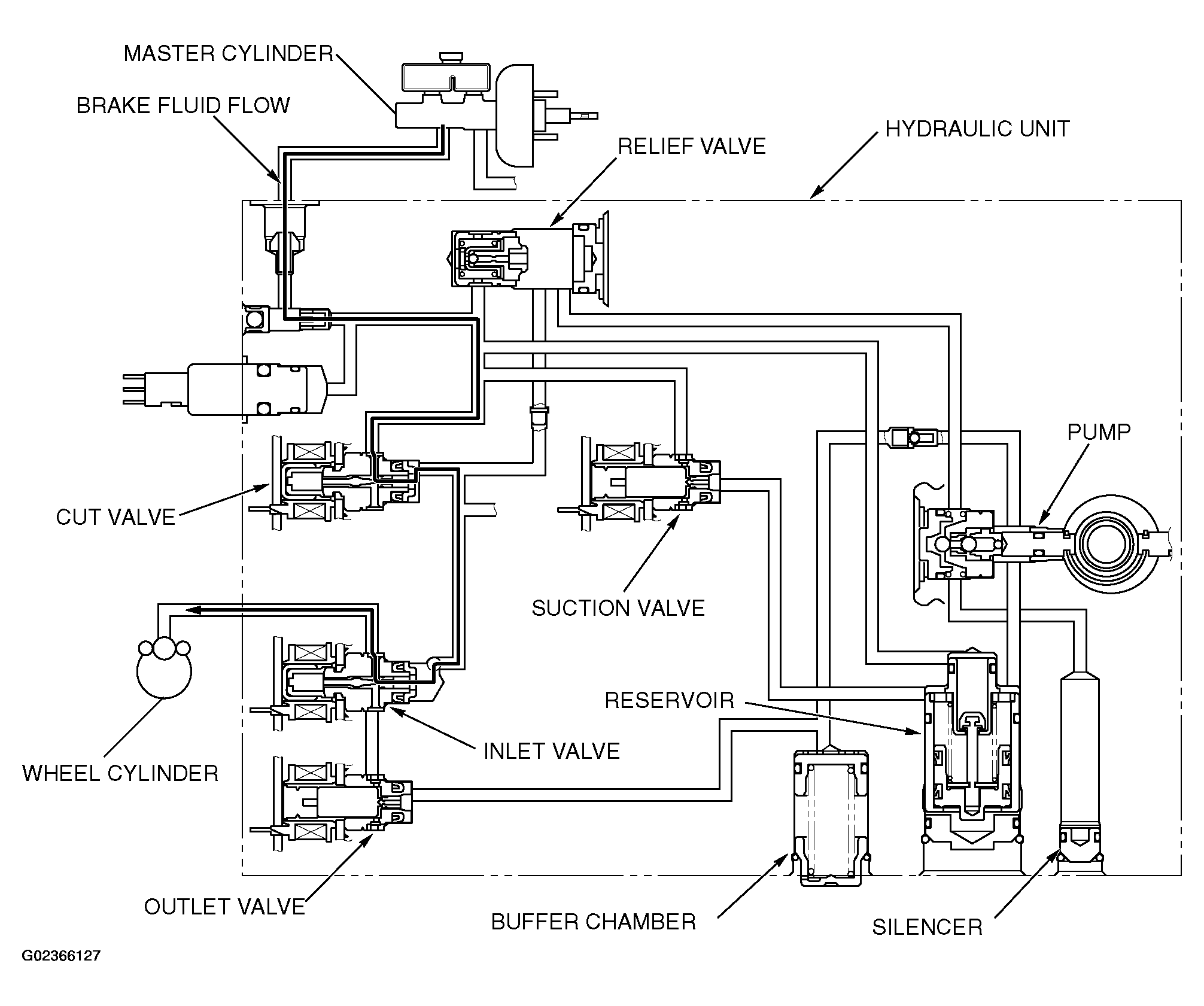

Fig 1: Operational Diagram - During Normal Braking
G02366127Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
