INSPECTION PROCEDURE 2: Communication Between Scan Tool And The Steering Wheel Sensor Is Not Possible.: Notes

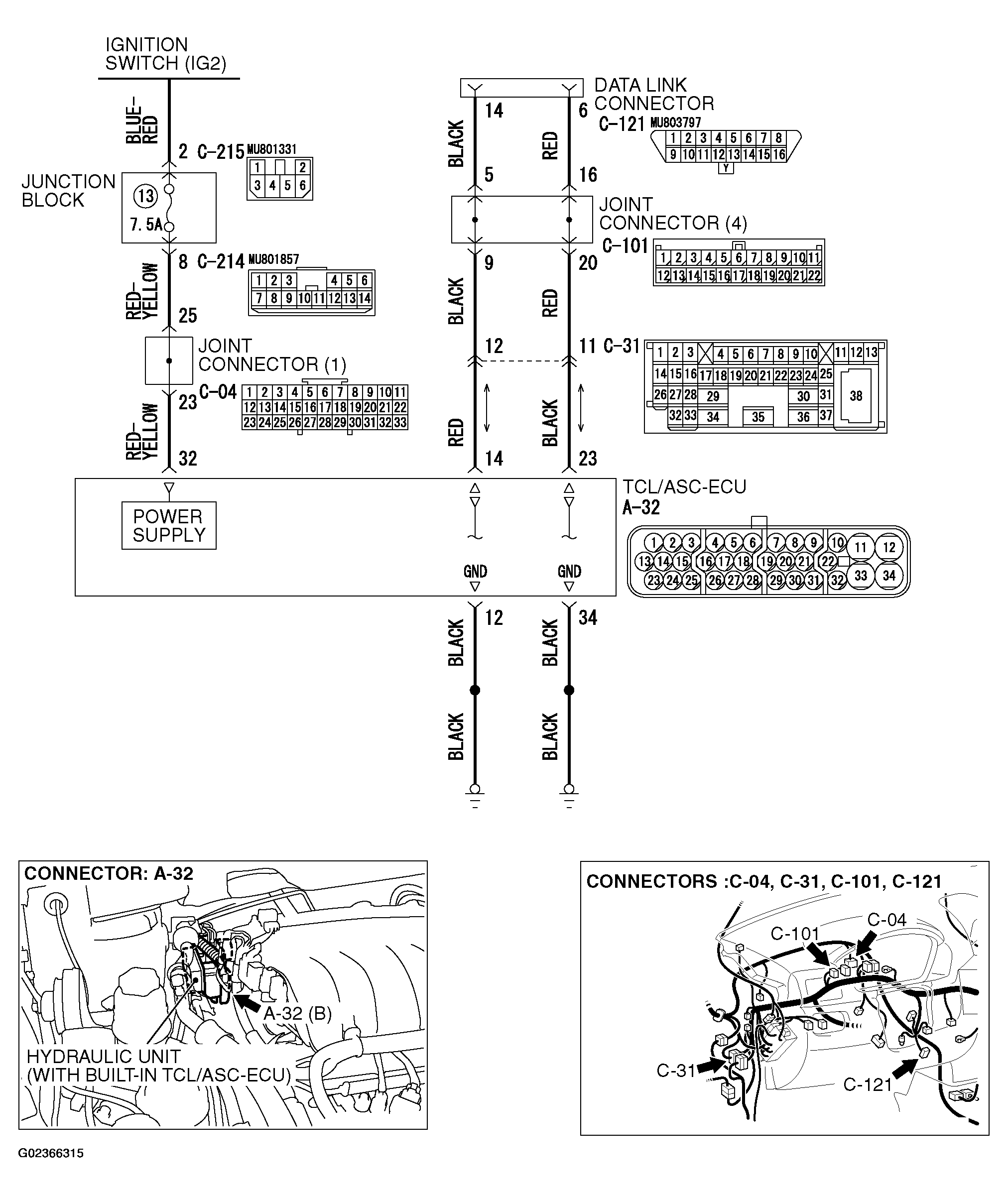

Fig 1: Data Link Connector Circuit Diagram (1 Of 2)
G02366315Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Data Link Connector Circuit Diagram (2 Of 2)
G02366316Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
