TCL/ASC Diagnosis
›
Symptom Procedures
›
INSPECTION PROCEDURE 4: Steering Wheel Sensor Power Supply System
›
Notes
INSPECTION PROCEDURE 4: Steering Wheel Sensor Power Supply System: Notes

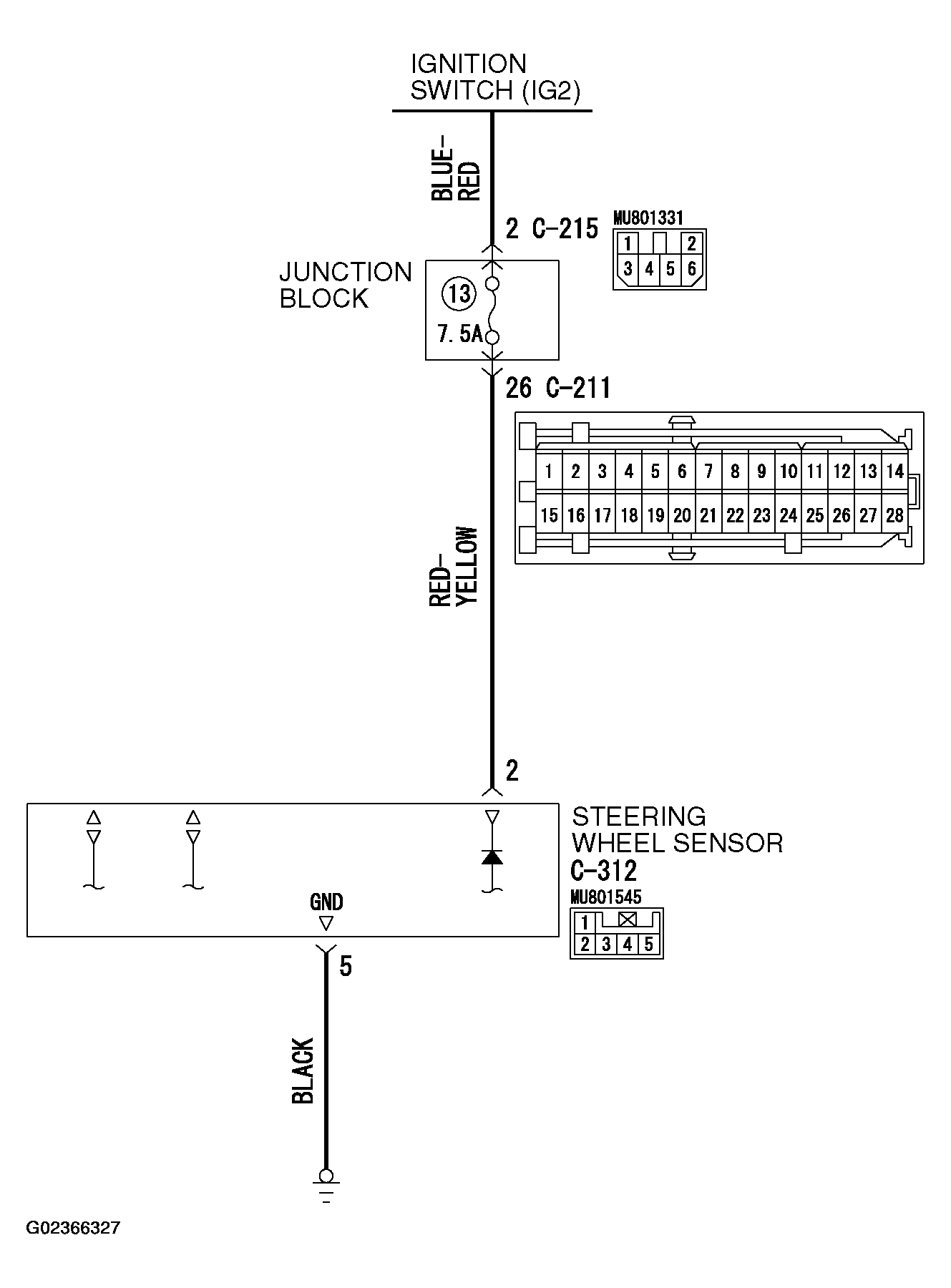

Fig 1: Steering Wheel Sensor Power Supply Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

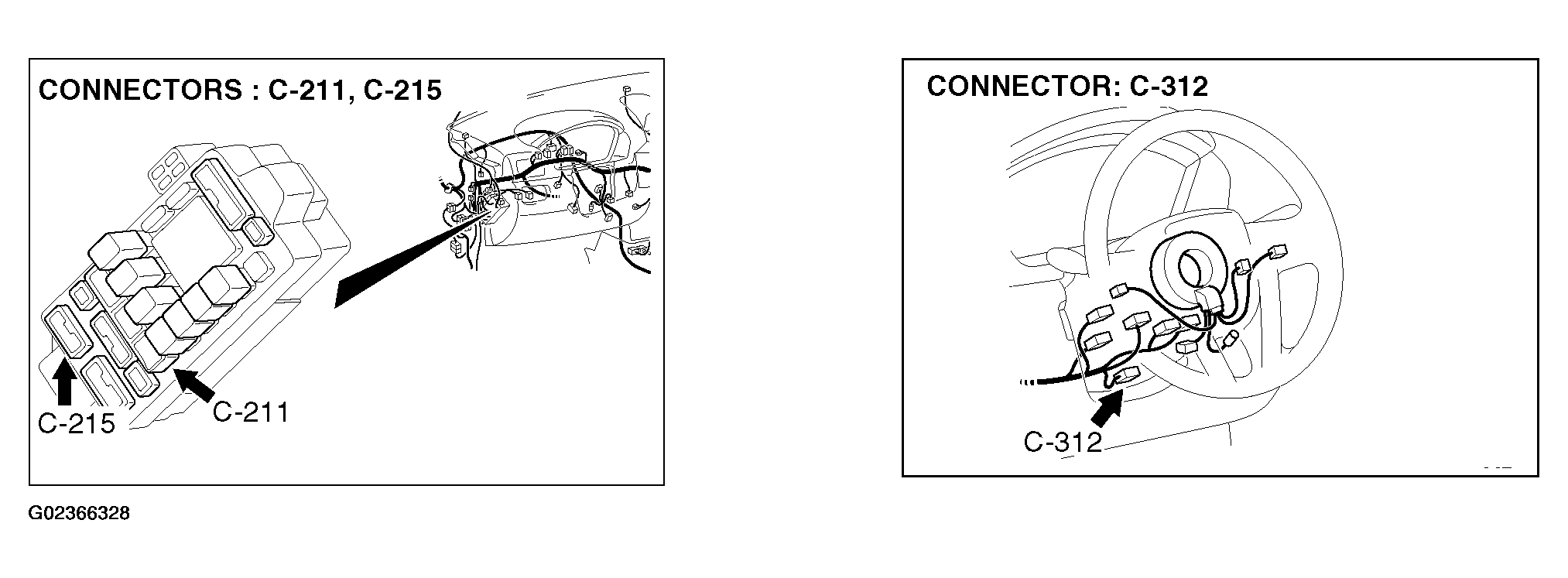

Fig 2: Steering Wheel Sensor Power Supply Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
