Key Reminder Switch Check

Disconnect key reminder switch connector C-312 without removing the key reminder switch and steering lock cylinder.

Check for continuity between terminal 4 and terminal 6.

TESTER CONNECTION SPECIFIED CONDITION

STATUS OF IGNITION KEY	TESTER CONNECTION	SPECIFIED CONDITION
Removed	4-6	Less than 2 ohms
Inserted	4-6	Open circuit

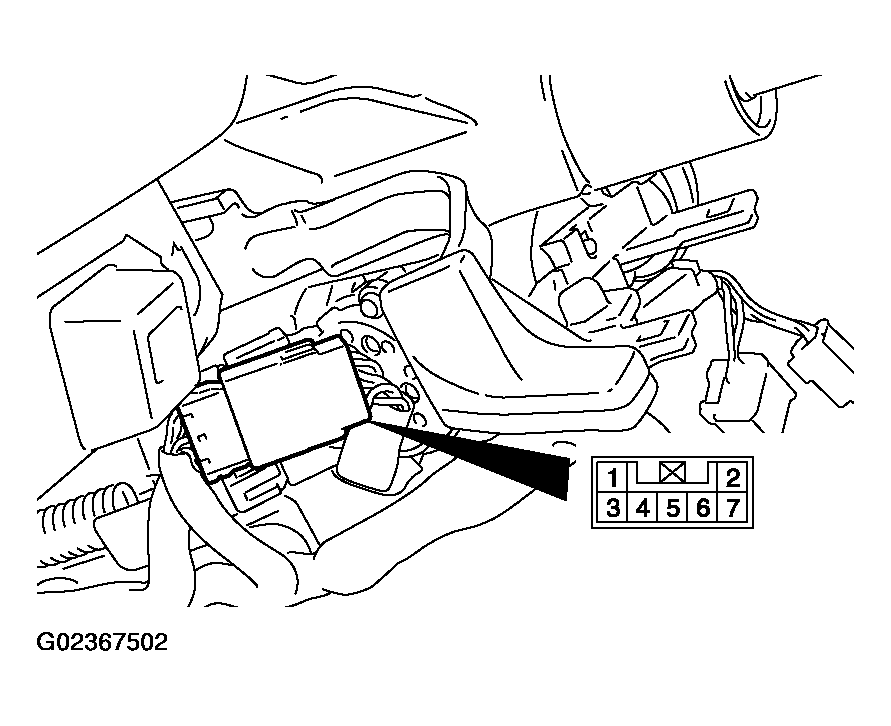

Fig 1: Disconnecting Key Reminder Switch Connector C-312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
