Registration Of Additional Keys With The Scan Tool

Additional key(s) can be registered with the scan tool while keeping all existing key data.

1. Connect scan tool MB991958 to the 16-pin data link connector.

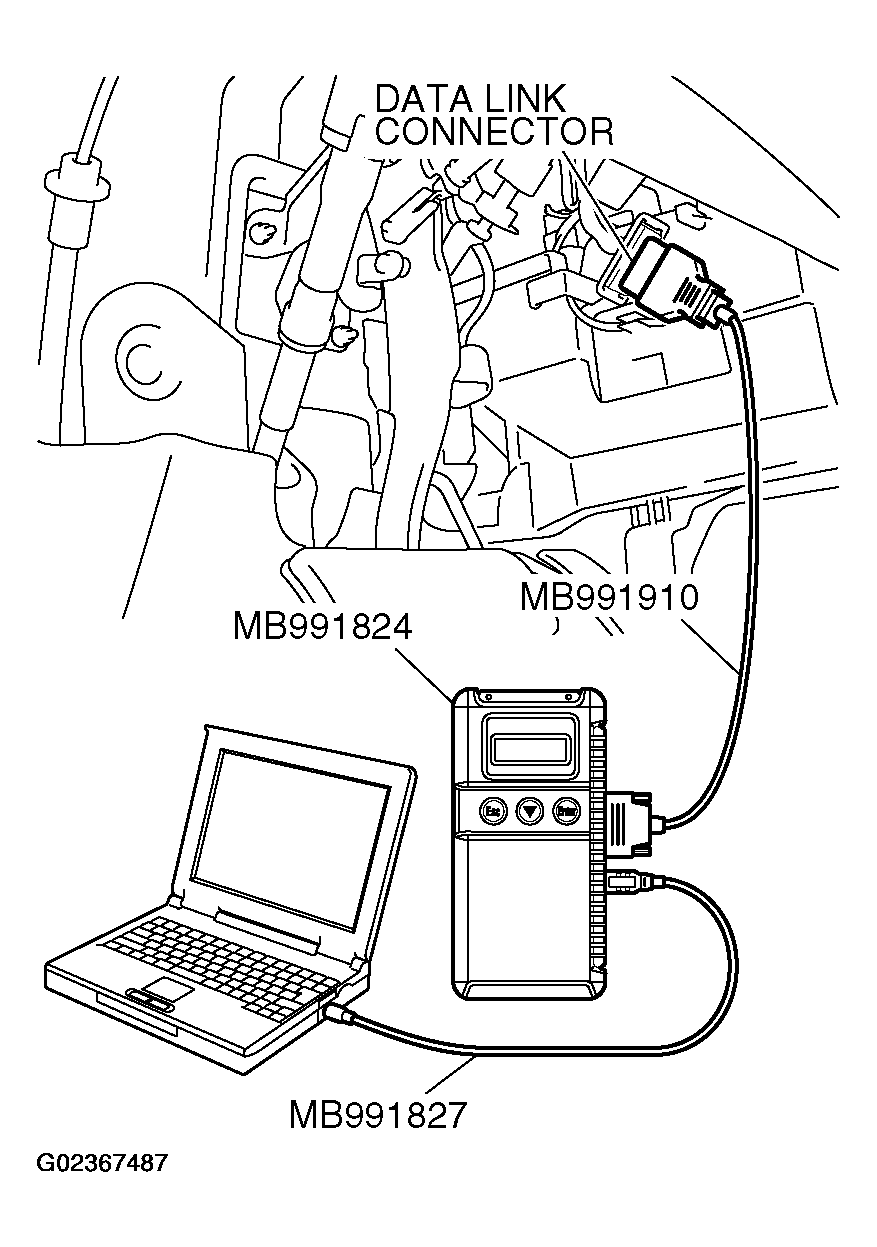

   Fig 1: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Turn the ignition switch to "ON" position.
   NOTE: Before registration, check that no DTC code is set. If a DTC code is set, resolve the problem beforehand.
3. Carry out steps 3 to 6 of the sub-section "Registration with scan tool."
4. Choose "Transponder ID addition" from "Special Function" screen.
   Fig 2: Scan Tool Display - Transponder ID Addition

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Enter the vehicles password (secret code) on the "Transponder ID addition" screen, and then click the check mark icon.
   Fig 3: Scan Tool Display - Transponder ID Addition

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. If an additional registration is made successfully, the screen will ask if another key is registered or not. If the third ignition key is registered, remove the key, which has been registered. Then insert the third key within five seconds, and then turn it to the ON position.
   Fig 4: Scan Tool Display - Special Function

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. Register the additional ignition key according to step 6 above. The number of the registered ignition keys are shown on "The number of registered key" screen.
   NOTE: A maximum of eight different keys can be registered.
8. This completes the registration operation. Turn the ignition switch "LOCK" (OFF) and leave it off for approximately ten seconds.
9. Check that the engine can be started with each of the ignition keys.
10. Check that the immobilizer system DTC and MFI system DTC did not set.
11. If not DTC is shown, terminate scan tool MB991958.
12. Turn the ignition switch to "LOCK" (OFF) position.
13. Disconnect scan tool MB991958.
