Check At Multi Center Display Unit Terminal

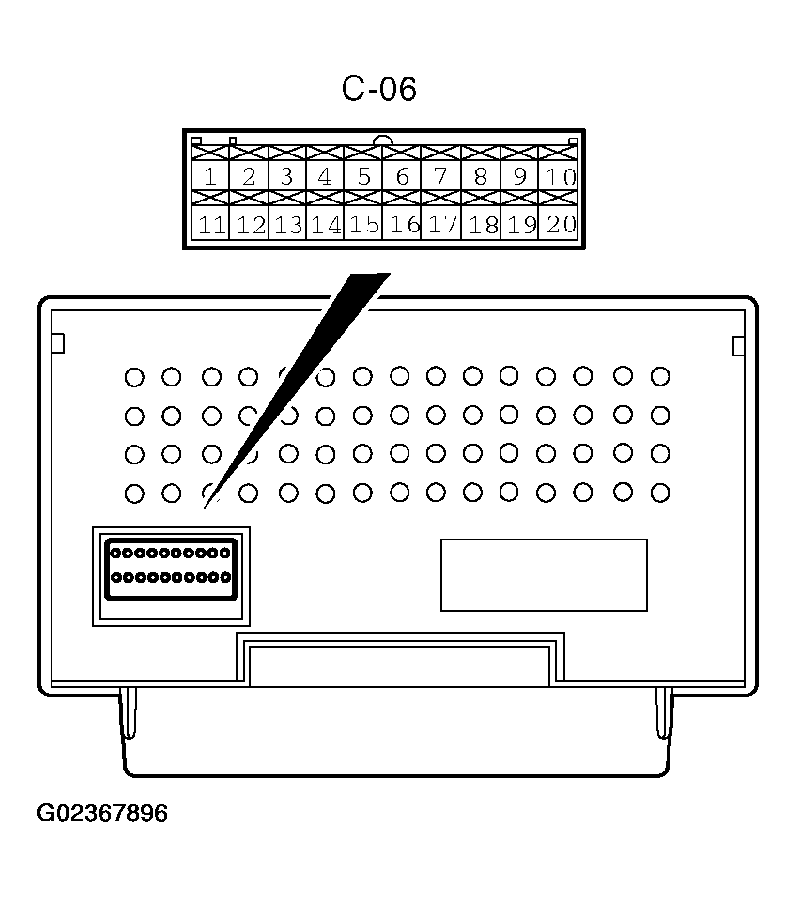

Fig 1: Identifying Multi Center Display Unit Terminal Low Grade Type

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Multi Center Display Unit Terminal Middel Grade Type

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

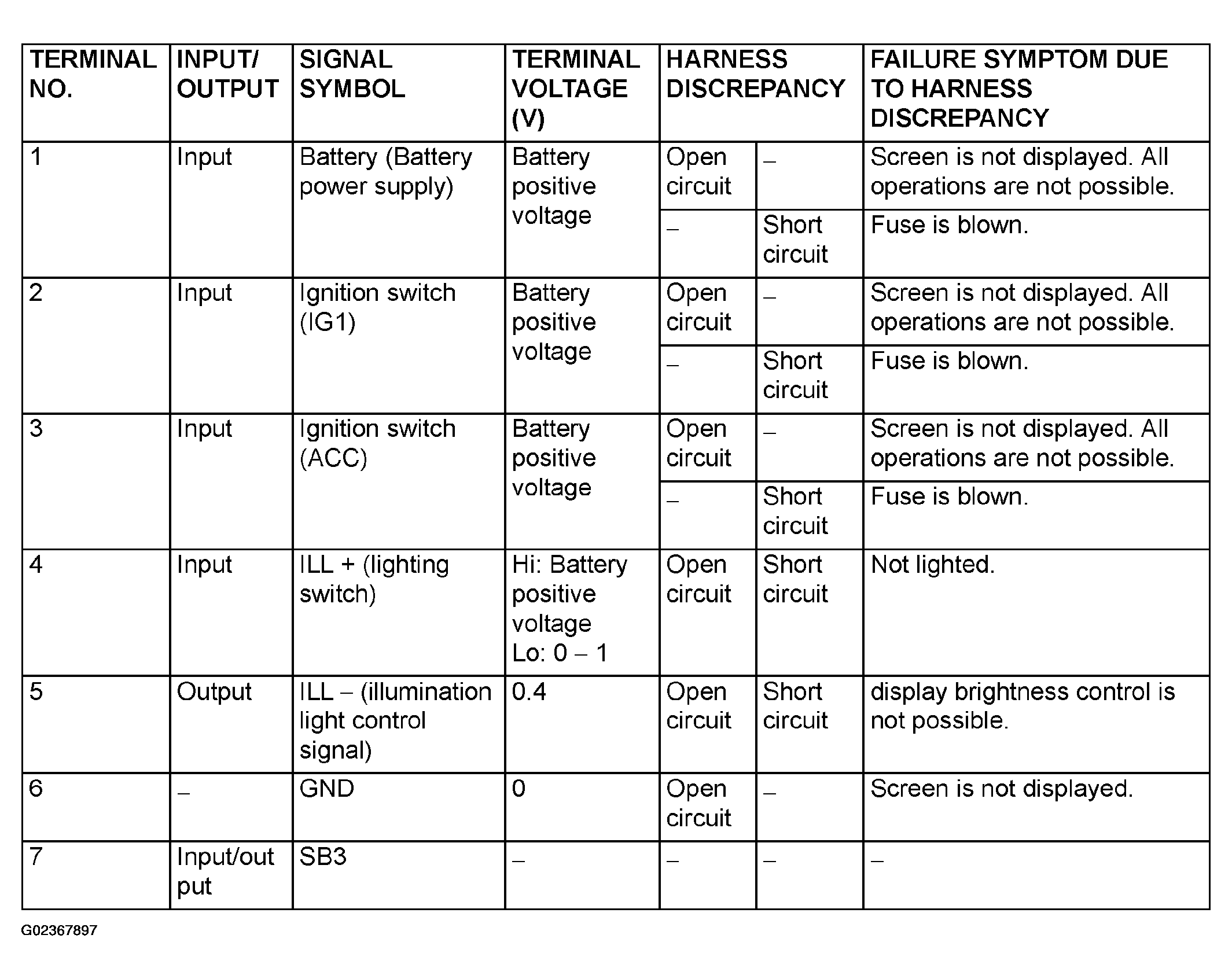

Fig 3: Terminal Input Output Signal Graph (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

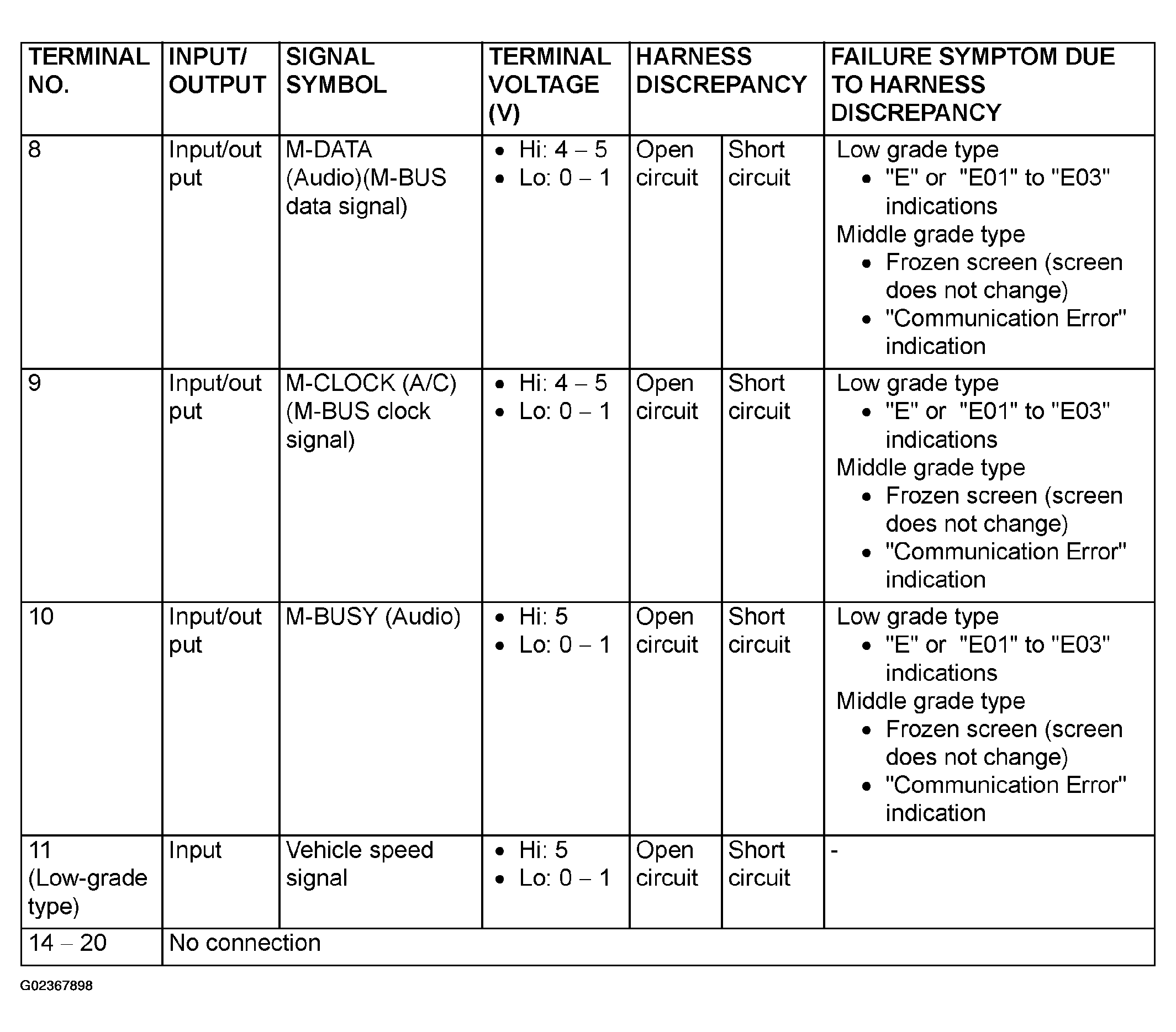

Fig 4: Terminal Input Output Signal Graph (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
