Rear Window Defogger Relay Continuity Check

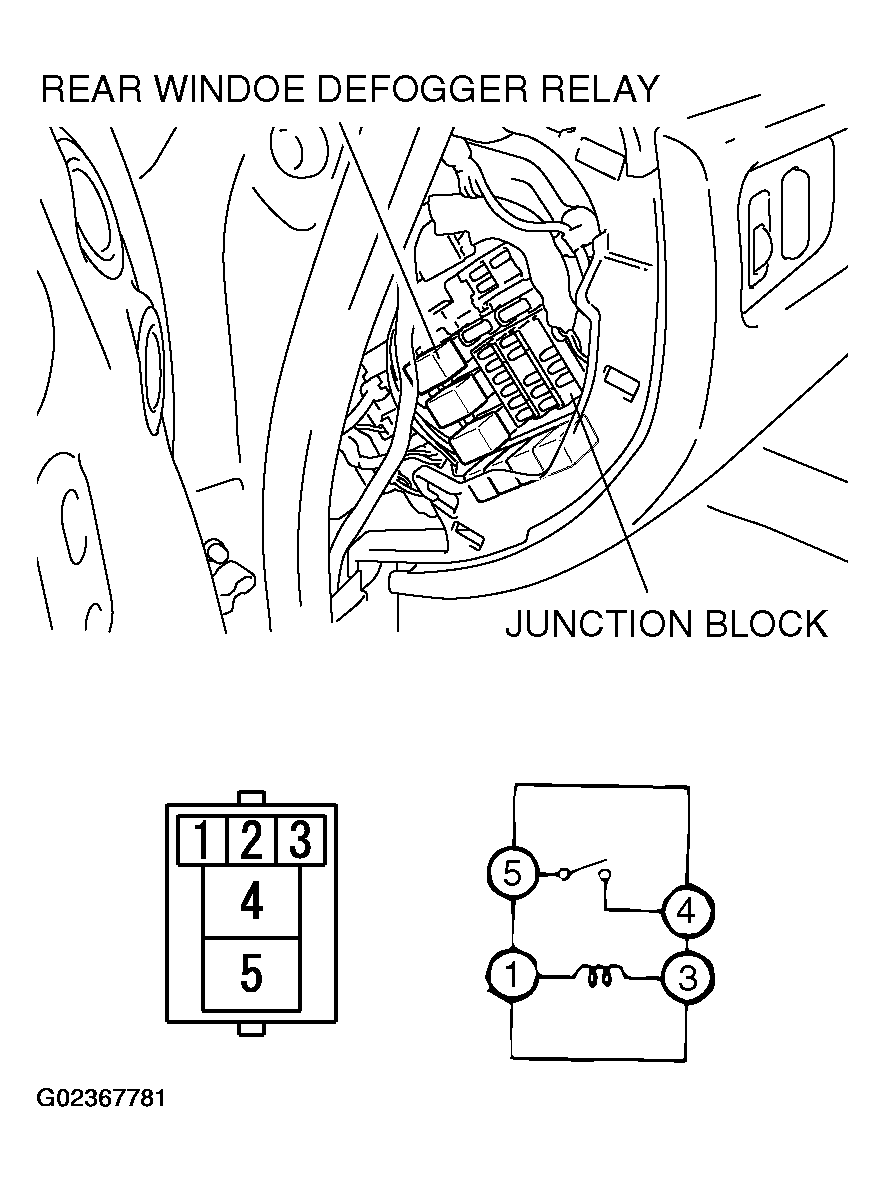

Fig 1: Locating Rear Window Defogger Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

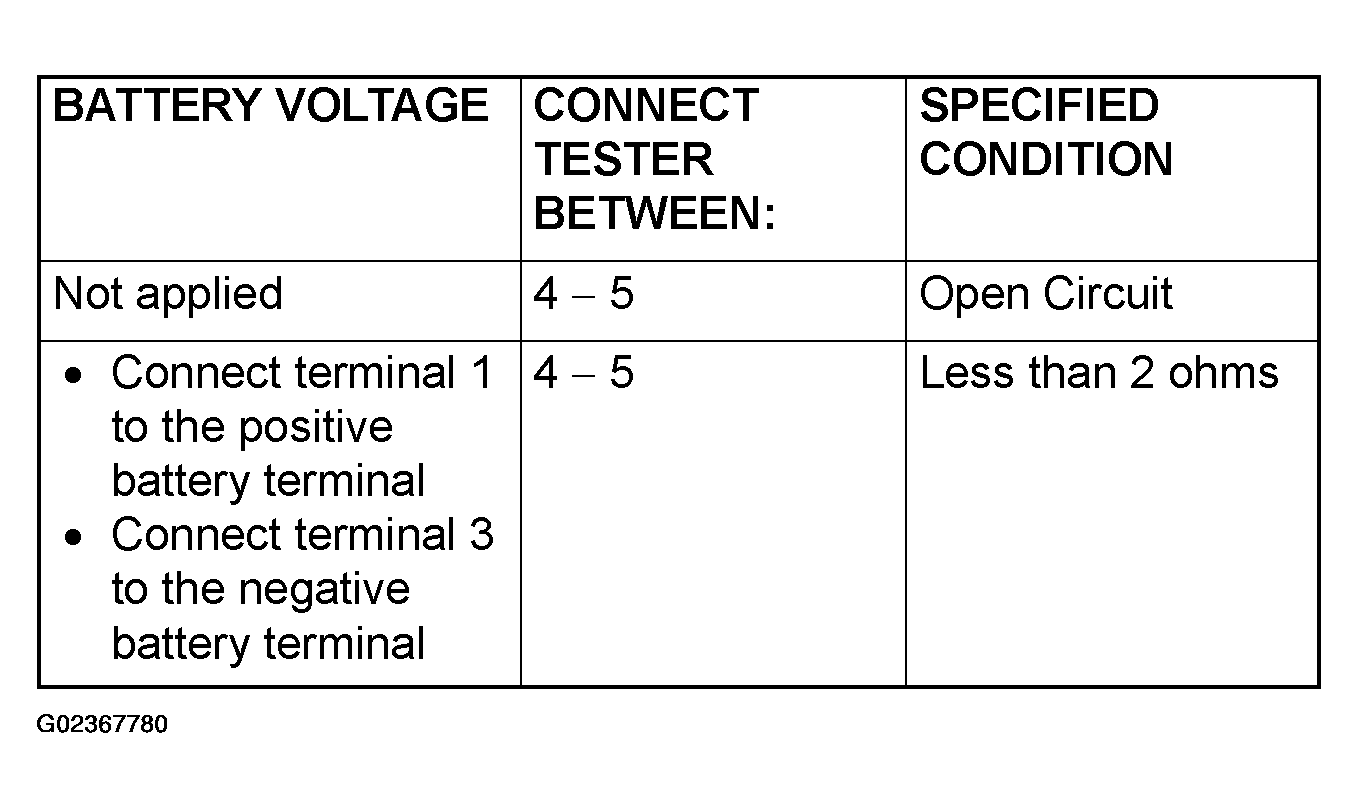

Fig 2: Battery Voltage Connecting Tester Specified Condition Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
