Emission Control: Diagnosis

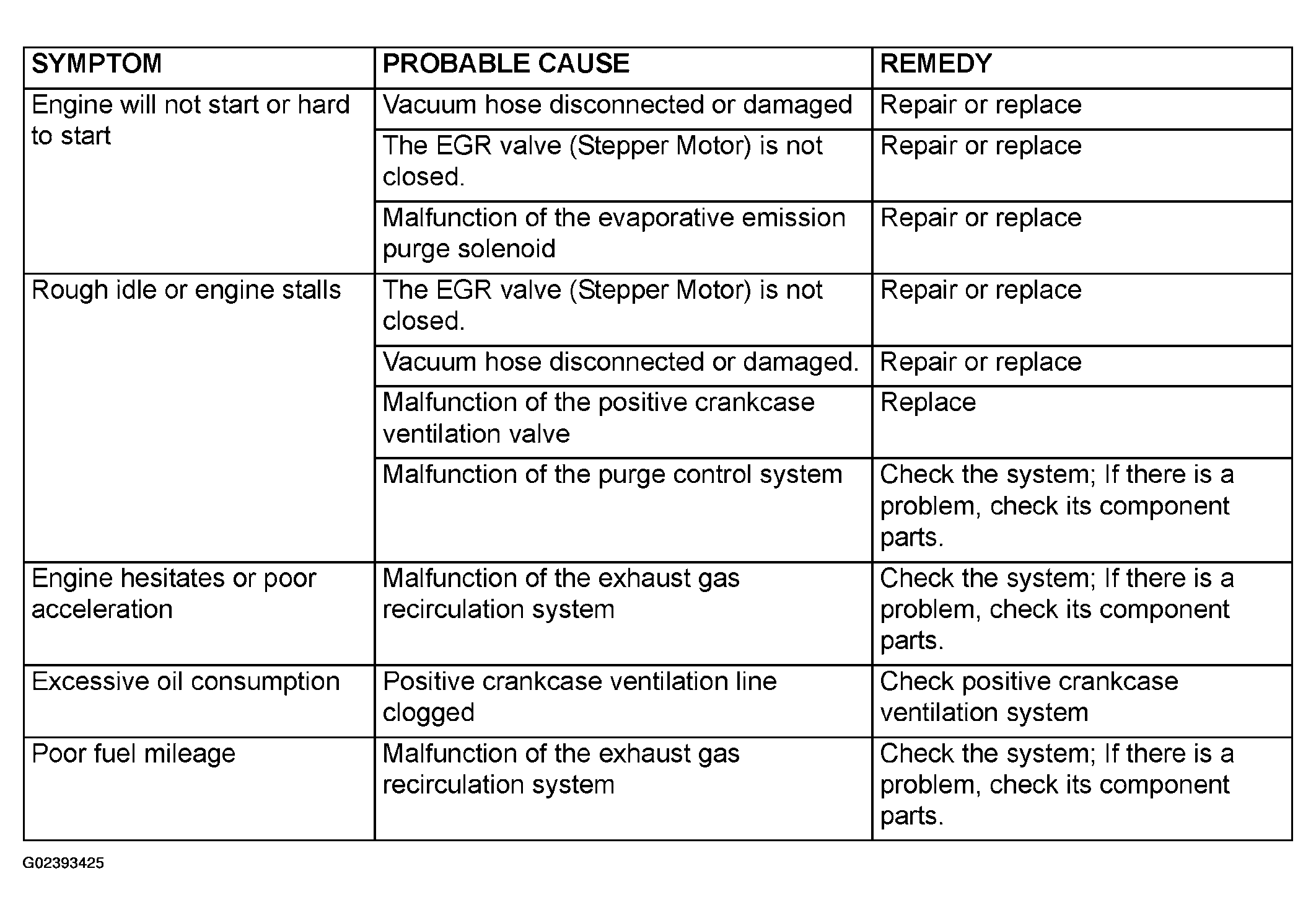

Fig 1: Symptom Chart - Emission Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
