Removal And Installation: Notes

WARNING:

Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULES AND CLOCK SPRING .
When removing and installing the steering wheel, do not let it bump against the air bag module.

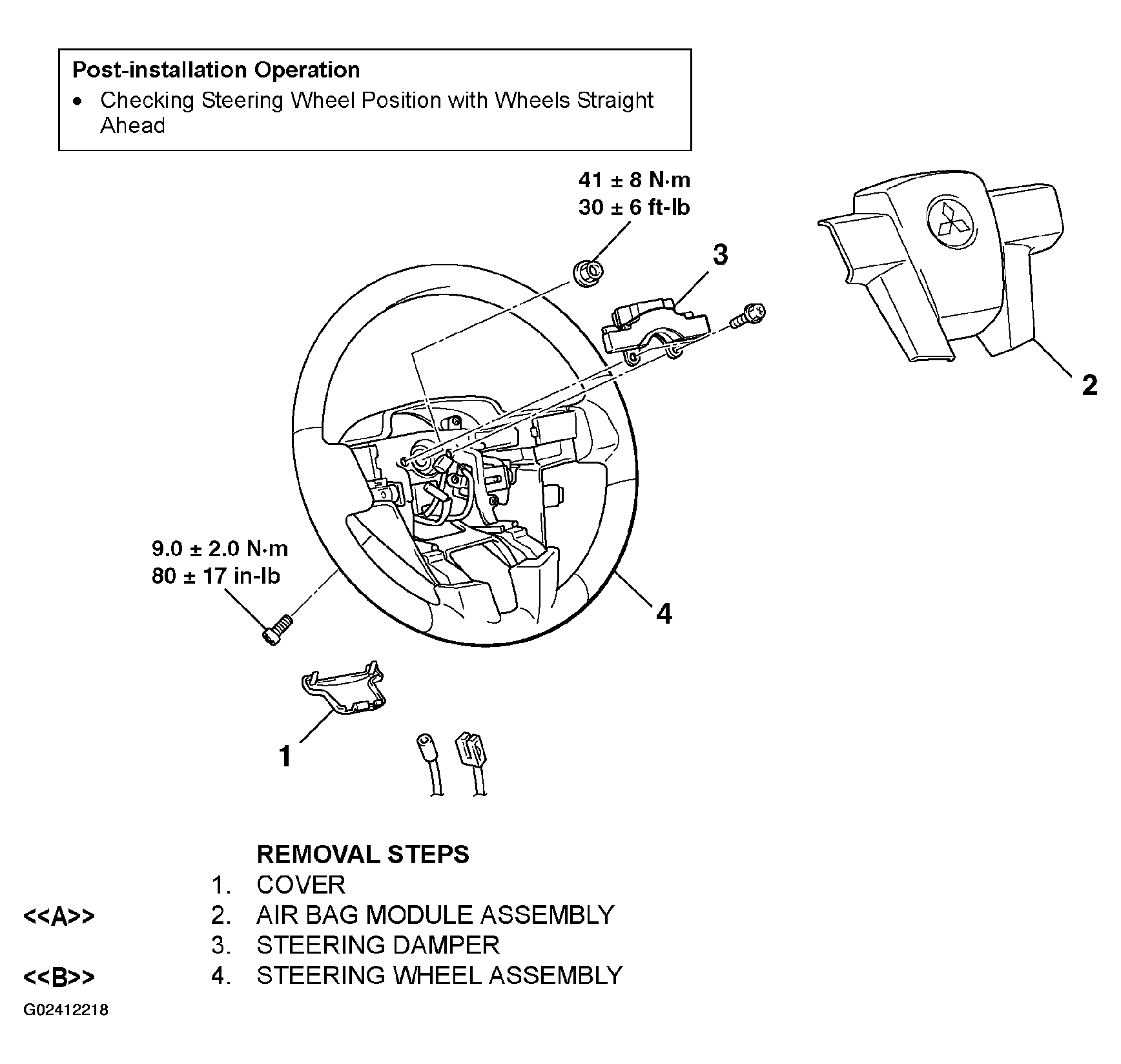

Fig 1: Removing & Installing Steering Wheel

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
