General Description
›
Components And Functions
Components And Functions

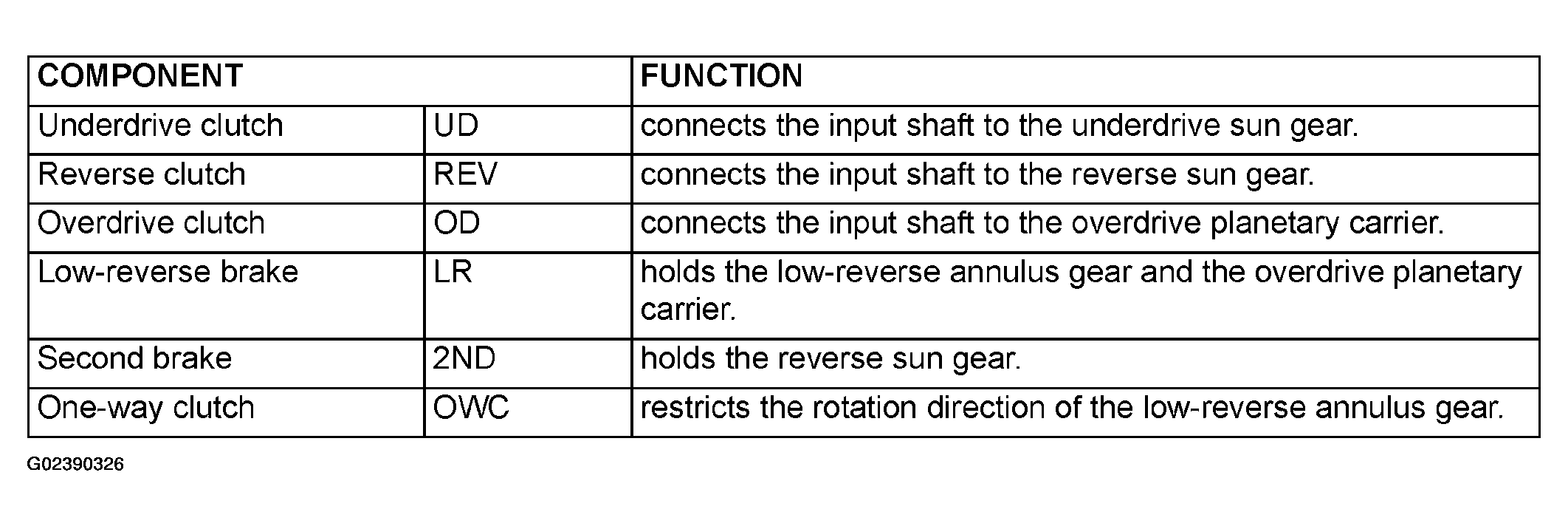

Fig 1: Identifying Components And Functions Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
