Function Element Table: Notes

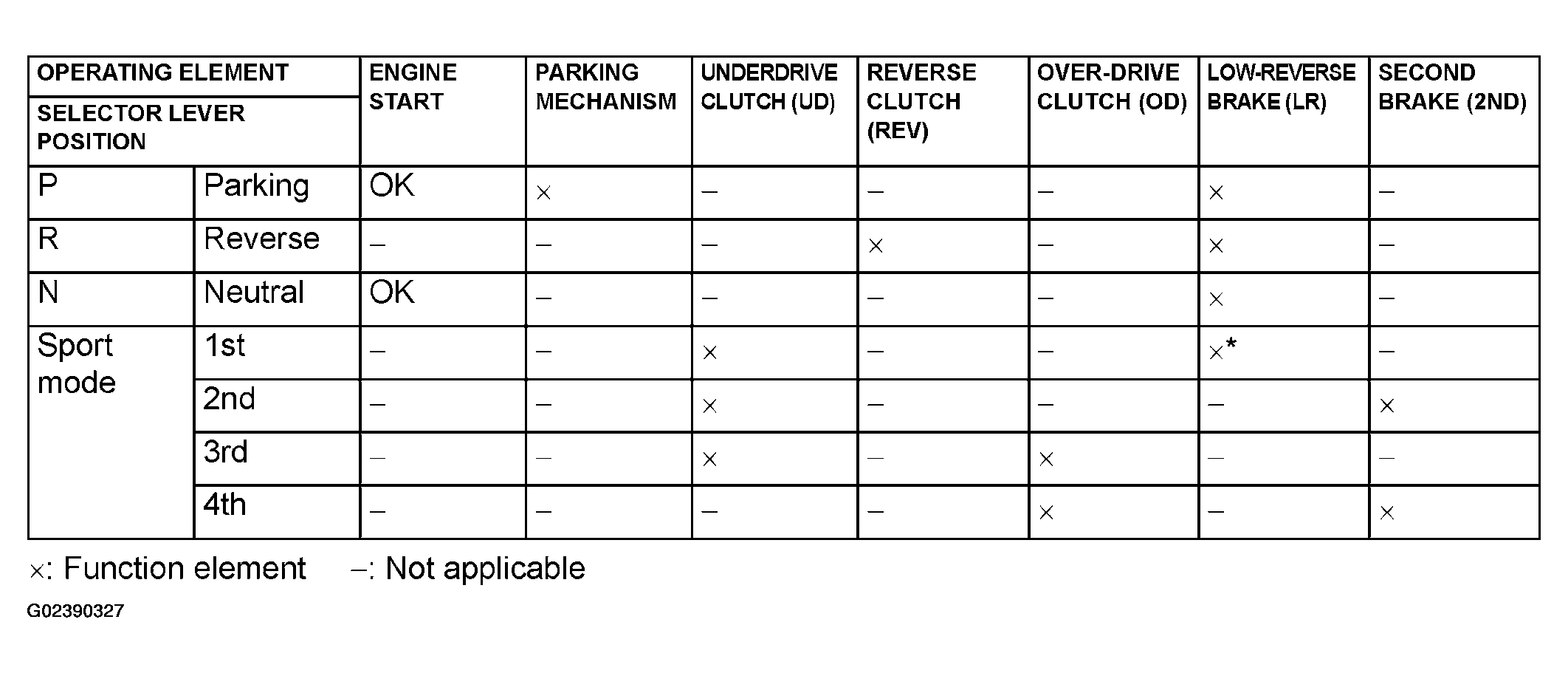

Fig 1: Identifying Function Element Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: *operates only when the vehicle is stationary [at approximately 10 km/h (6.2 mph) or less].
