Sectional View < F4A5A >
Sectional View < F4A5A >

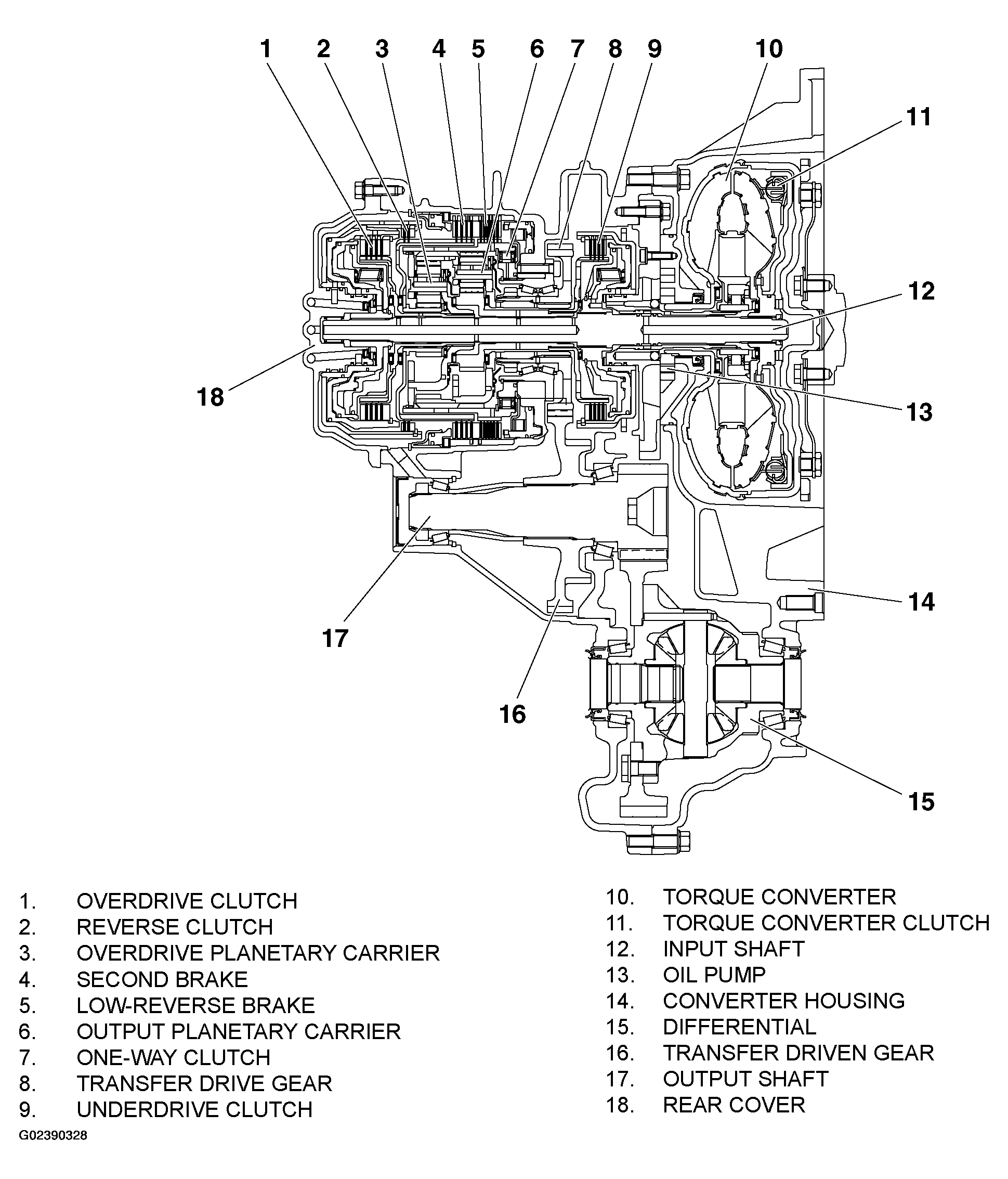

Fig 1: Identifying Automatic Transaxle Sectional View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
