A/T Control Relay Check

  1. Remove the A/T control relay.

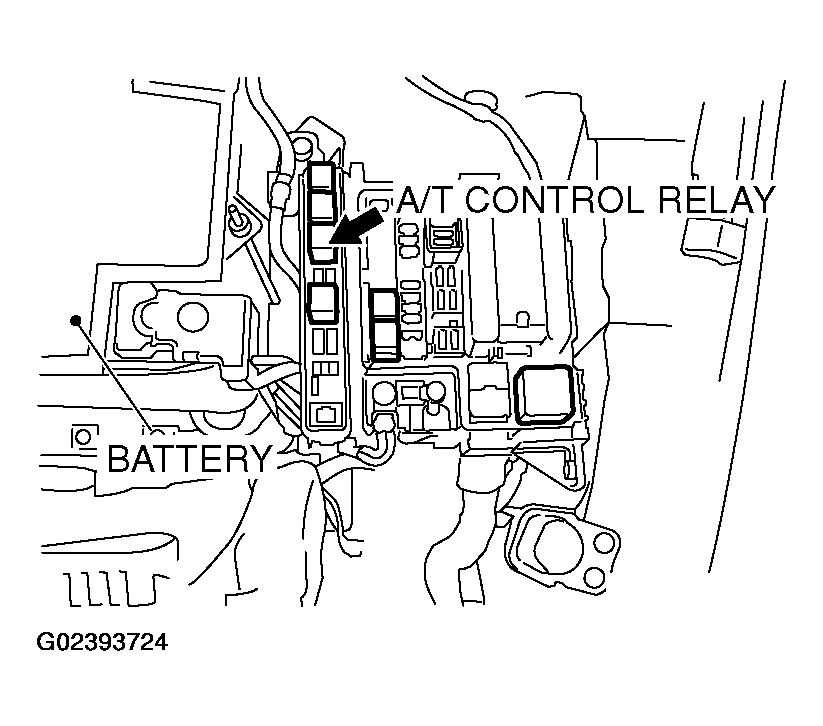

    Fig 1: Identifying A/T Control Relay
    G02393724Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.
  3. Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.
    Fig 2: Checking Continuity Between A/T Control Relay Terminals 1 And 4
    G02393725Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    TERMINALS CONTINUITY

    JUMPER WIRE  CONTINUITY BETWEEN TERMINALS NO. 1 AND NO. 4
    Connected Continuity
    Disconnected No continuity
  4. If there is any problem with the A/T control relay, replace it.
