Home › Mitsubishi › 2005 › Endeavor LS, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Diagnosis › Transaxle Control › Disassembly And Assembly

Disassembly And Assembly

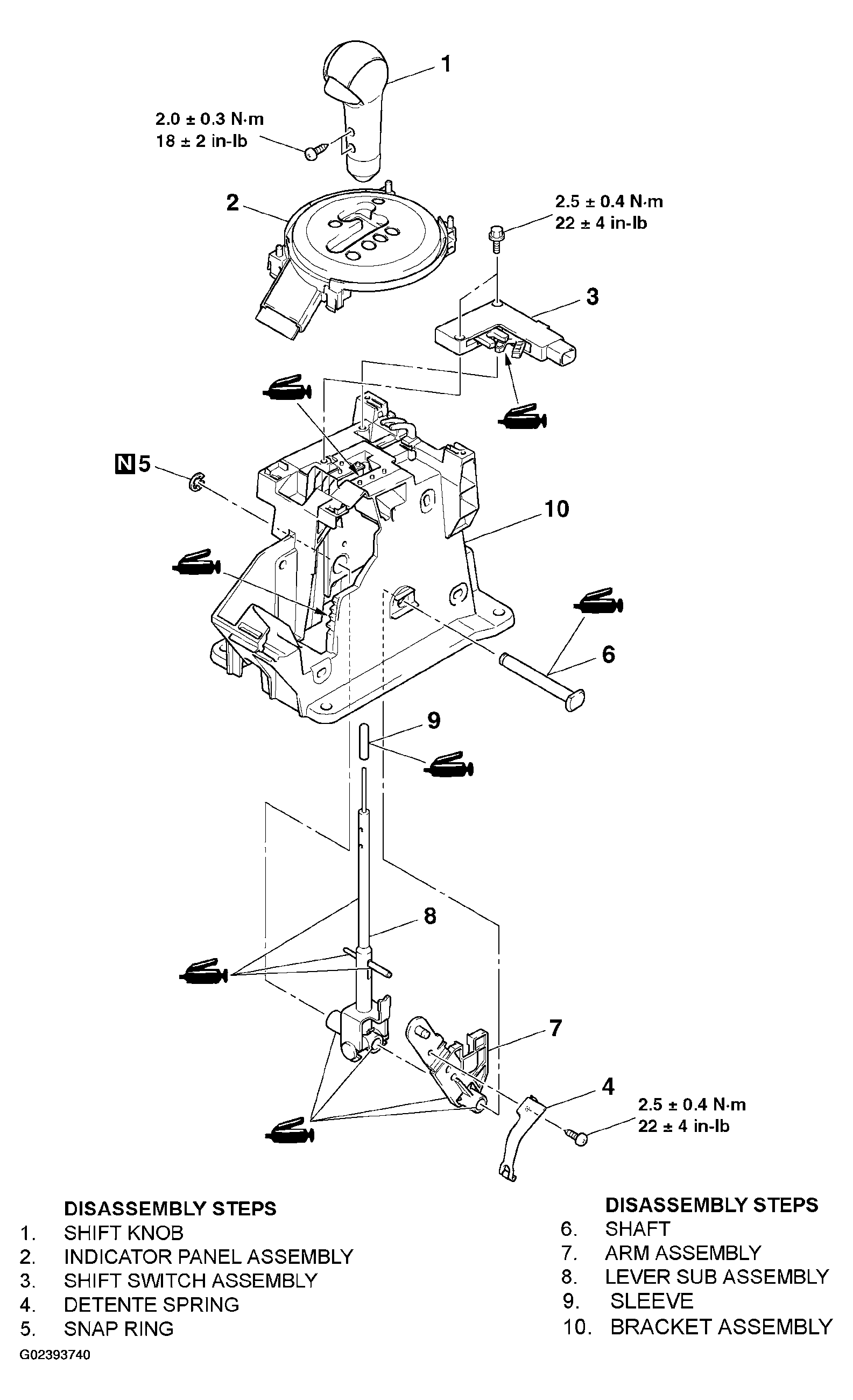

Fig 1: Disassembling/Assembling Selector Lever Assembly
G02393740Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
