Mitsubishi
›
2005
›
Endeavor LS, AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Diagnosis
›
Transfer Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

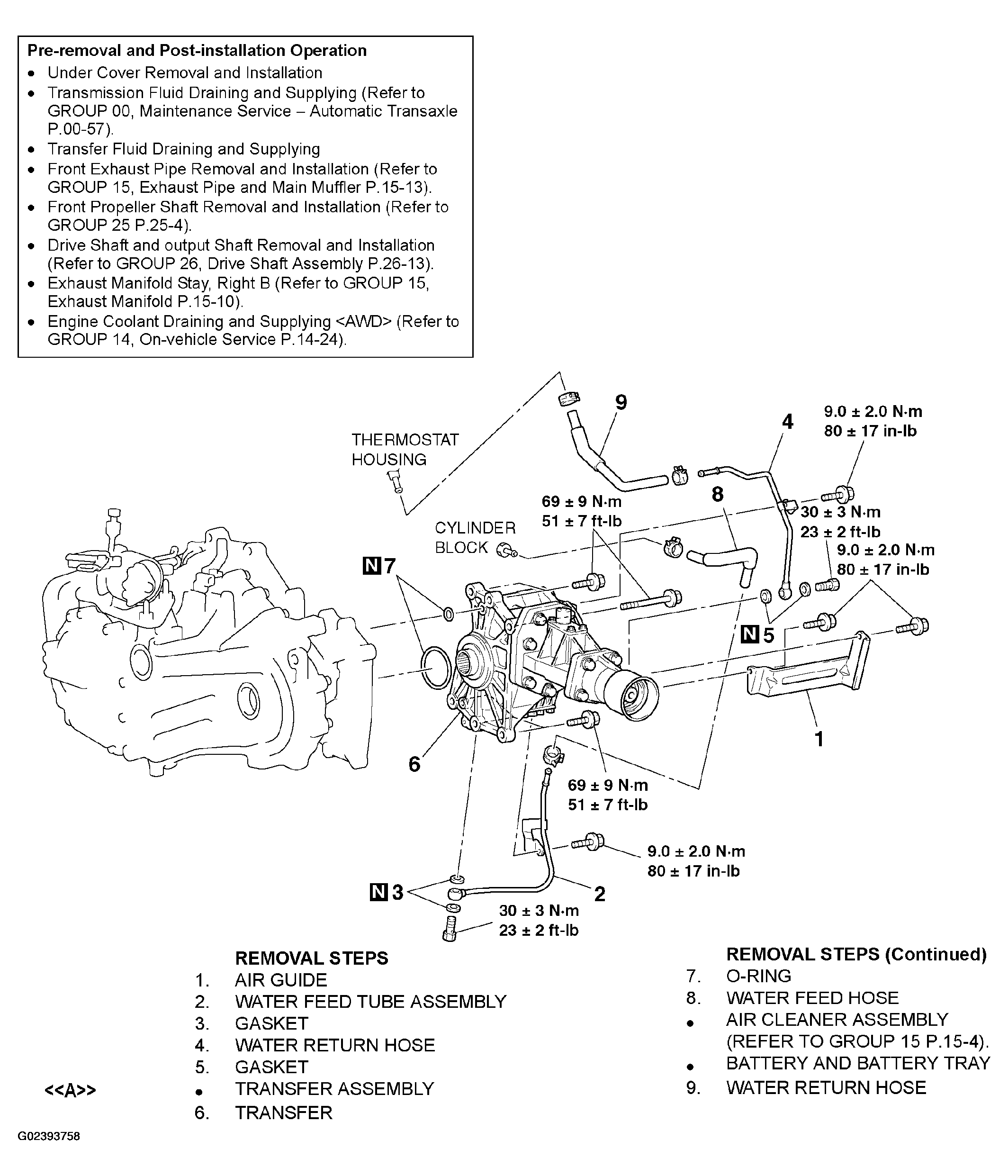

Fig 1: Removing/Installing Transfer Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
