Disassembly And Assembly: Notes

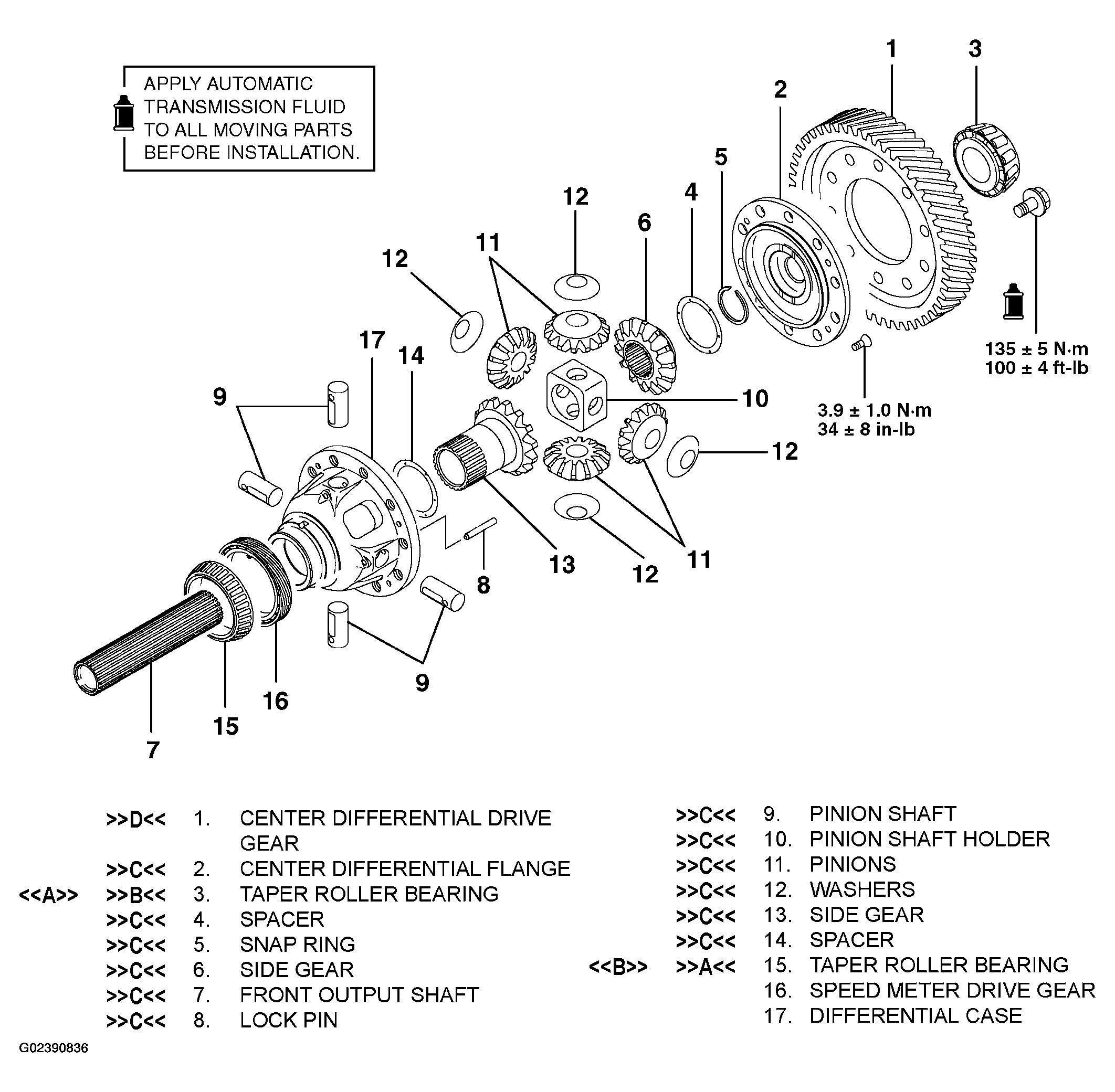

Fig 1: Disassembling & Assembly Of Center Differential (W4A5A)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998812: Installer Cap
• MD998917: Bearing Remover
• MB990930: Installer Adapter
• MD998824: Installer Adapter (50)
• MB990937: Installer Adapter
