Disassembly And Assembly: Notes

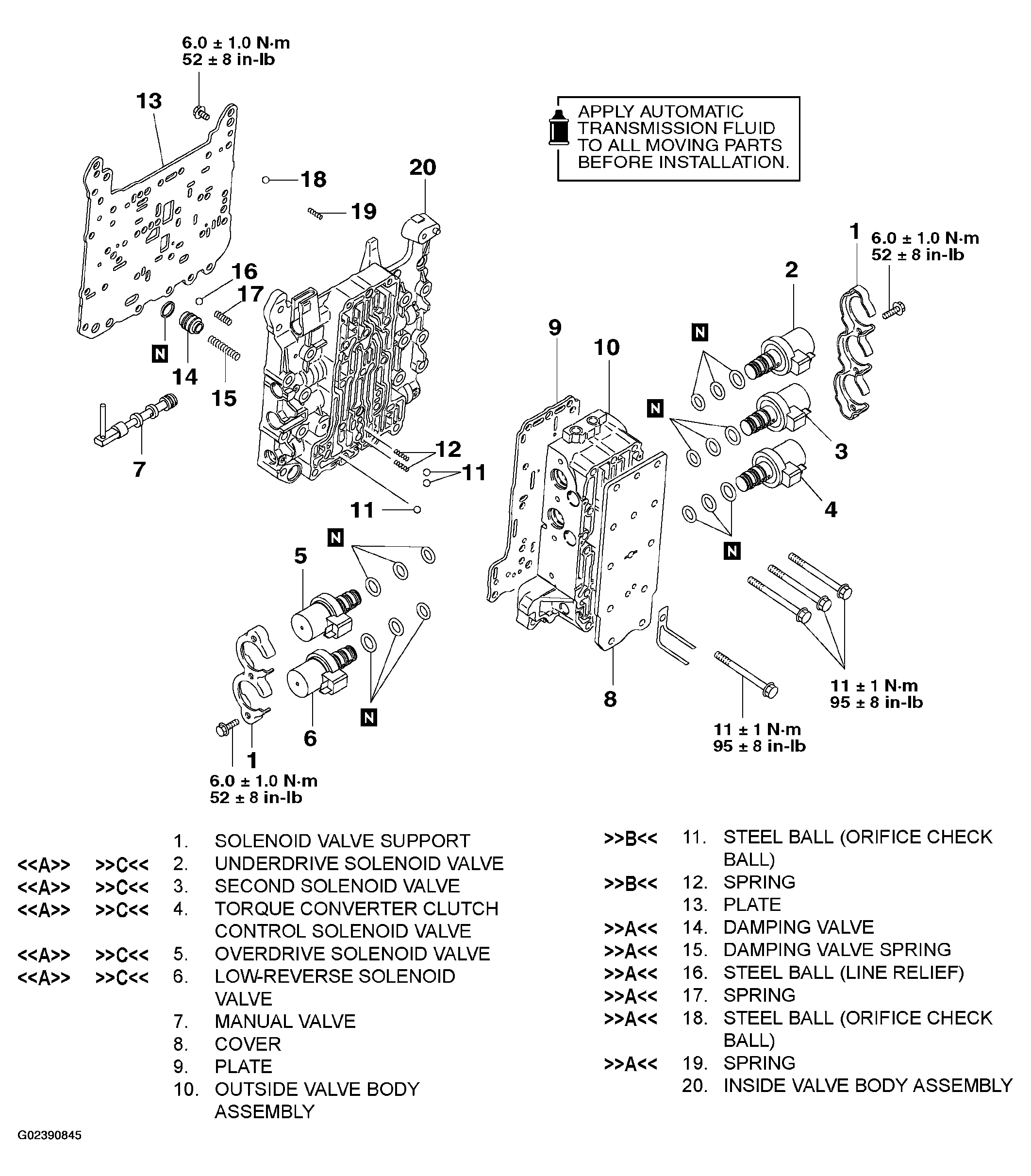

Fig 1: Disassembling & Assembly Of Valve Body (1 Of 3)
G02390845Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

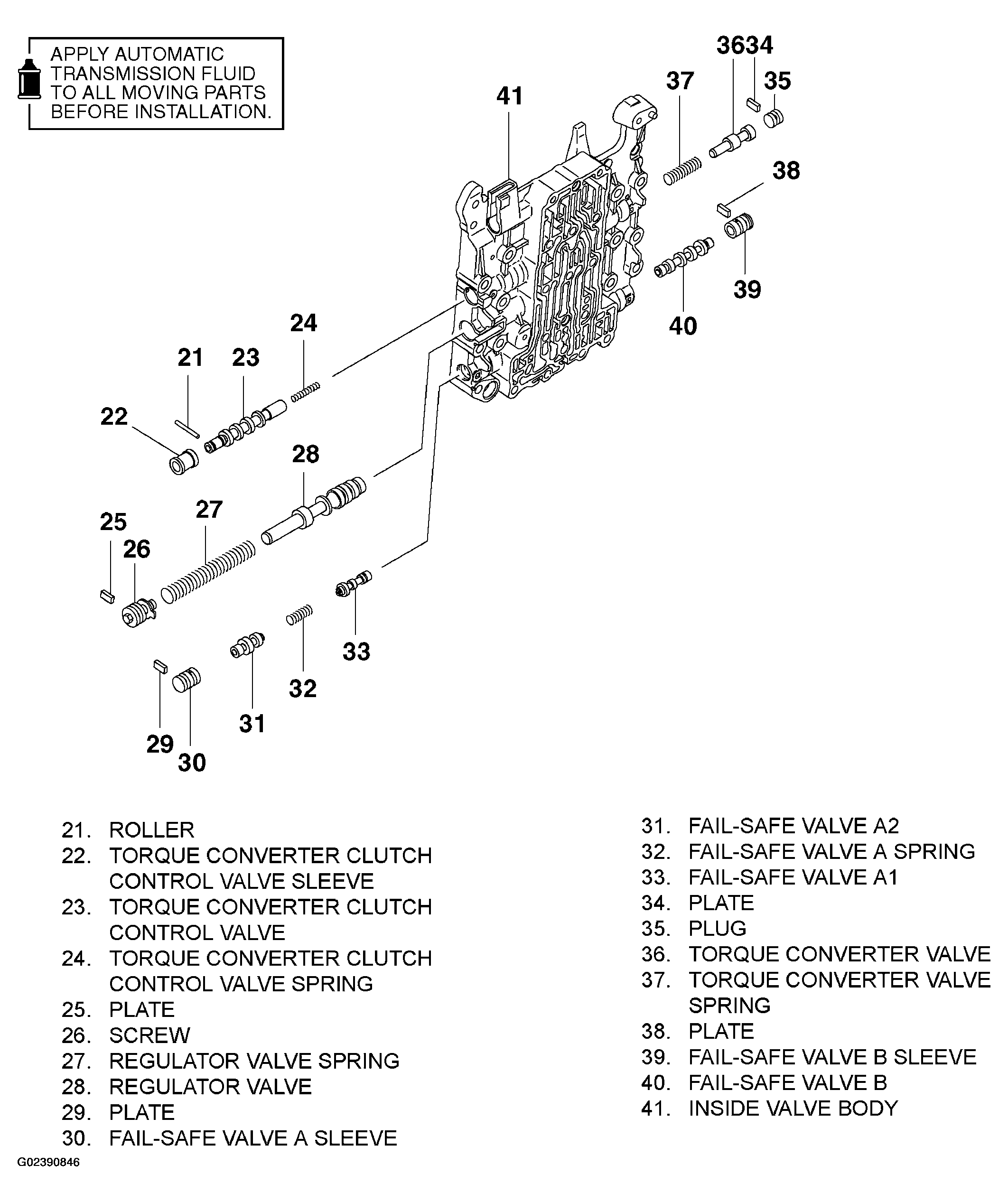

Fig 2: Disassembling & Assembly Of Valve Body (2 Of 3)
G02390846Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

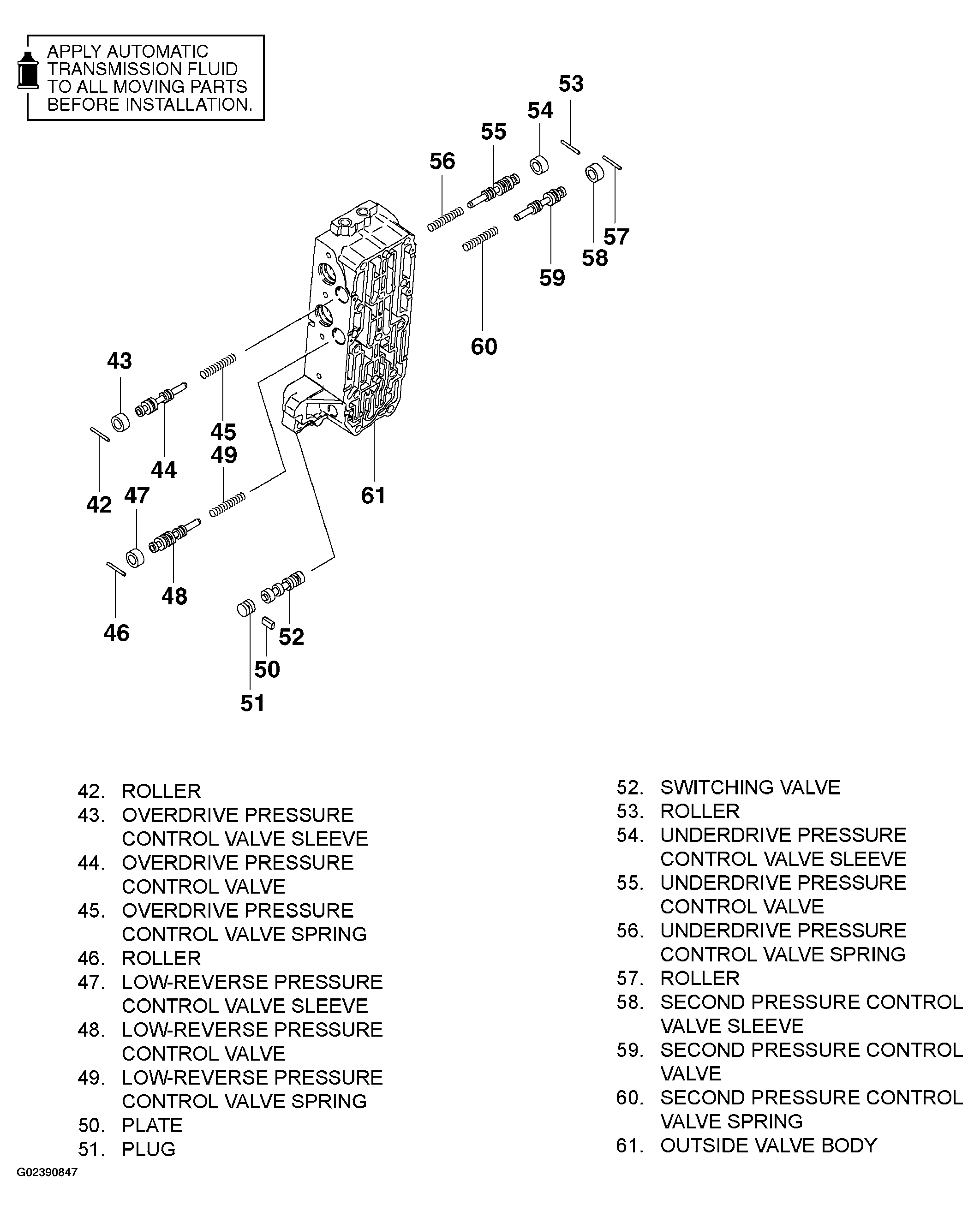

Fig 3: Disassembling & Assembly Of Valve Body (3 Of 3)
G02390847Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
