FixVault
Home
›
Mitsubishi
›
2005
›
Endeavor LS, FWD
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Starter Motor Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

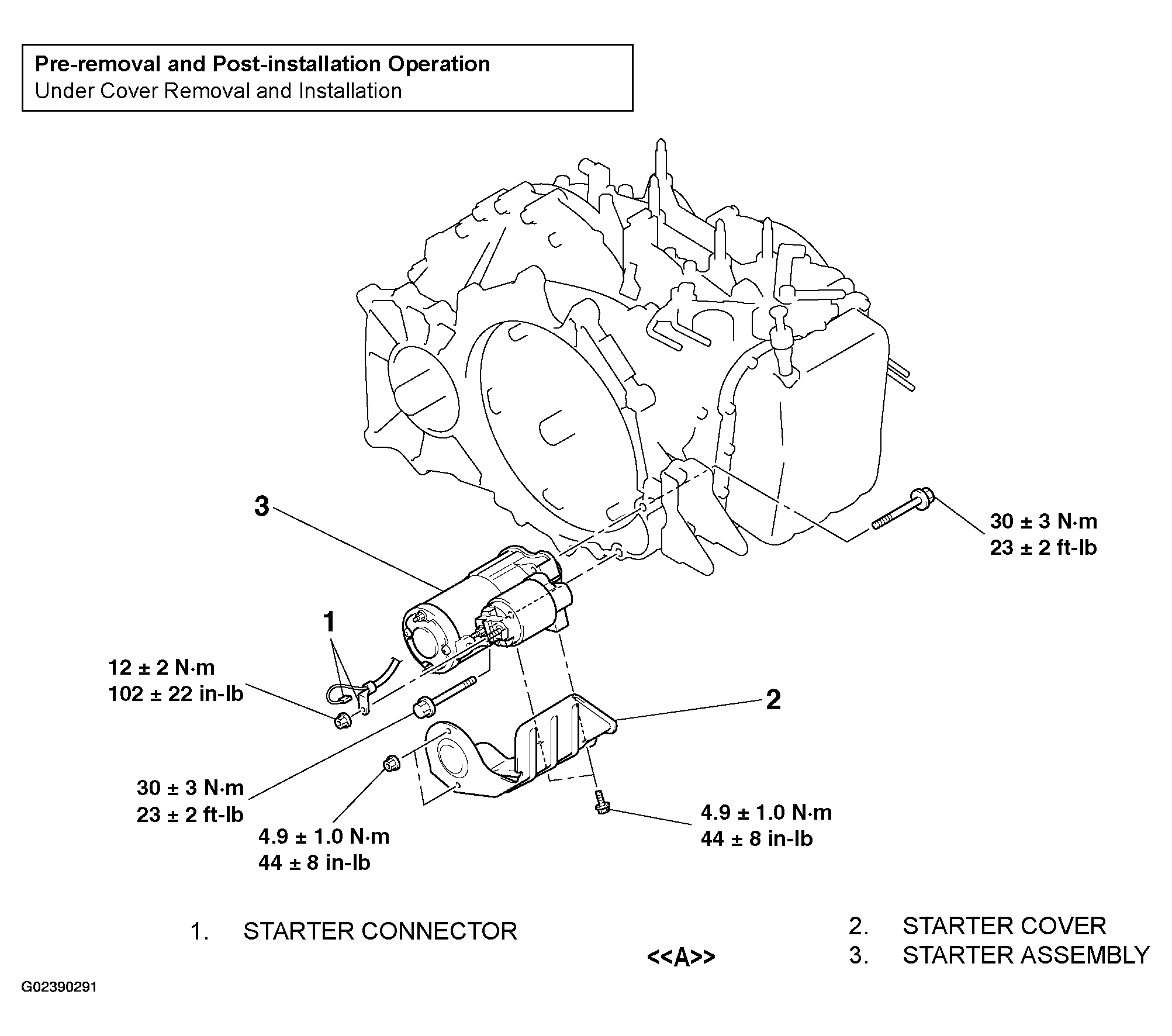

Fig 1: Removing/Installing Starter Motor Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
