Stoplight Switch

  1. Disconnect the connector.
    Fig 1: Identifying Stoplight Switch Connector
    G02393422Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check for continuity between the terminals of the switch.

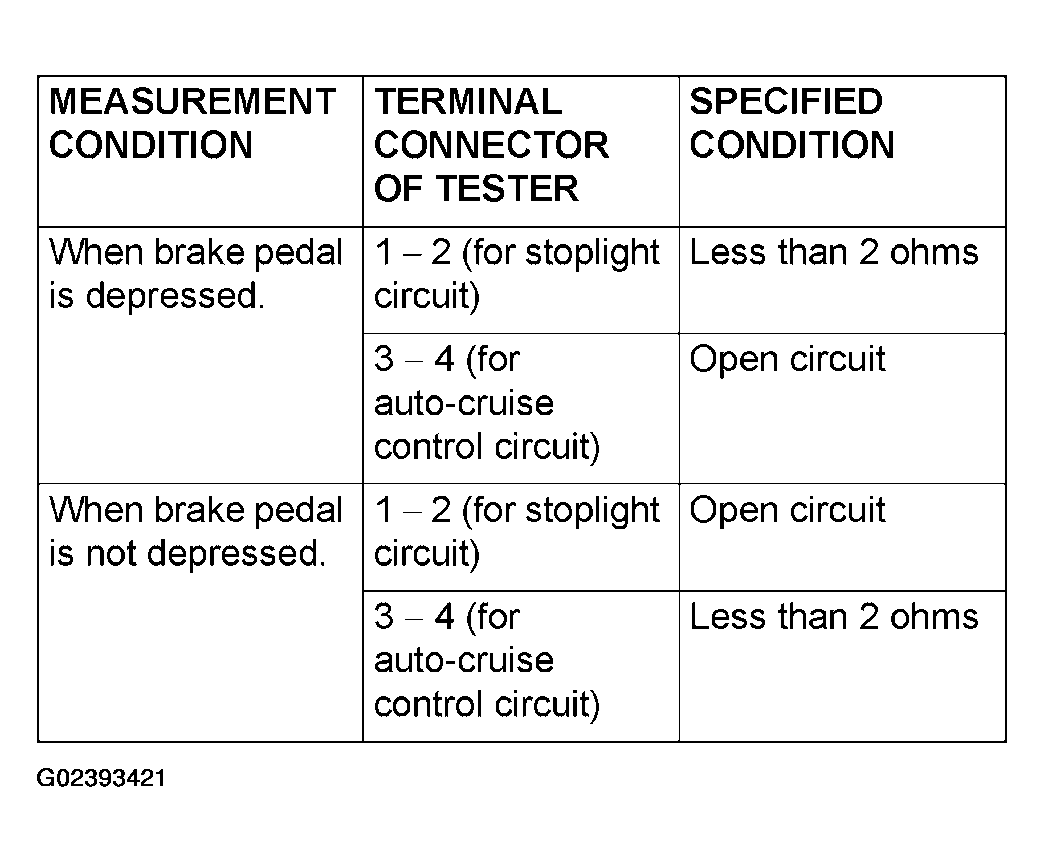

    Fig 2: Connector Terminal Specified Condition Chart
    G02393421Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
