Removal And Installation: Notes

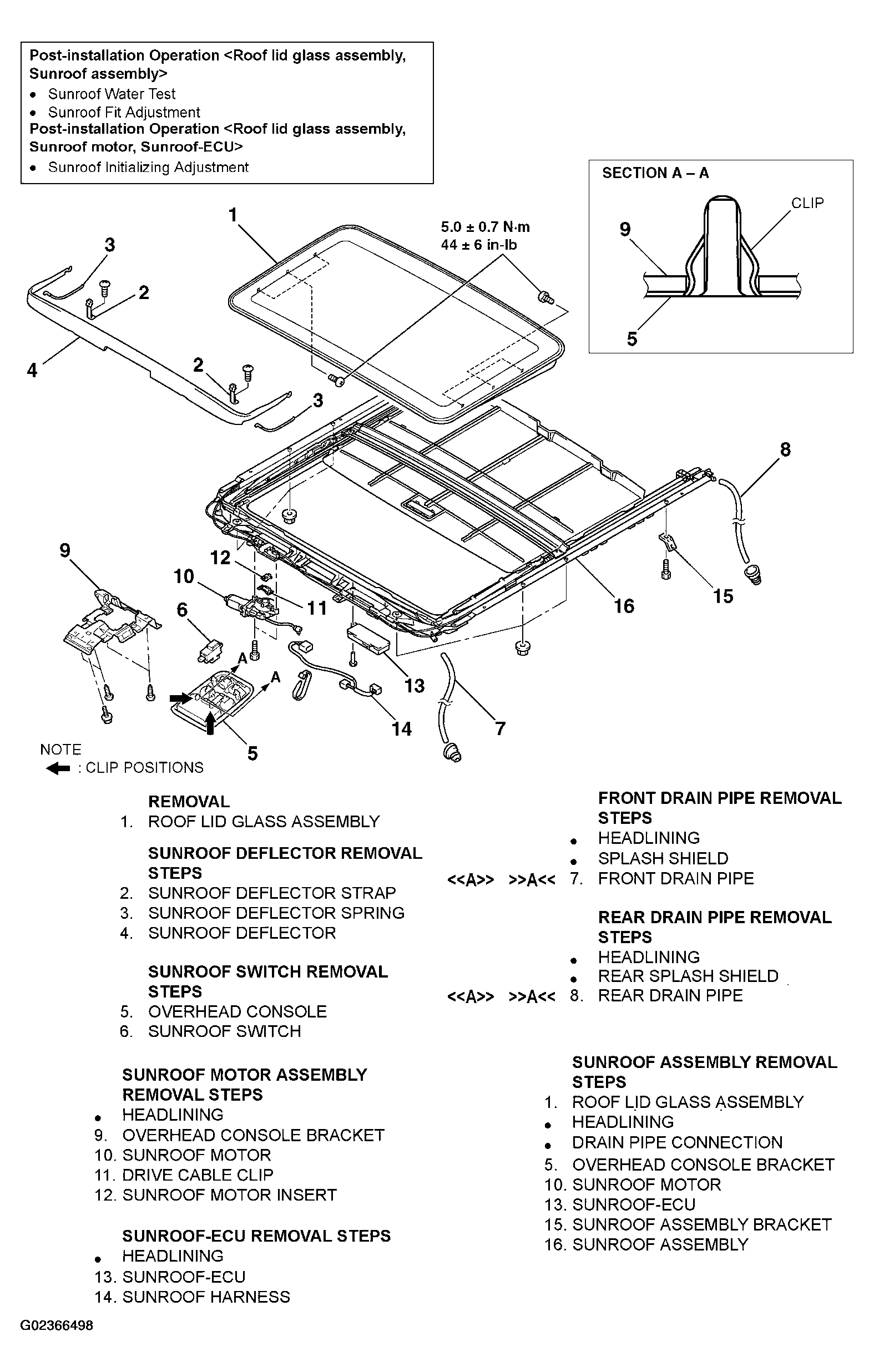

Fig 1: Removing/Installing Sunroof Assembly
G02366498Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
