Traction Control System (TCL)
›
Traction Control System (TCL) Diagnosis
›
Symptom Chart
Symptom Chart

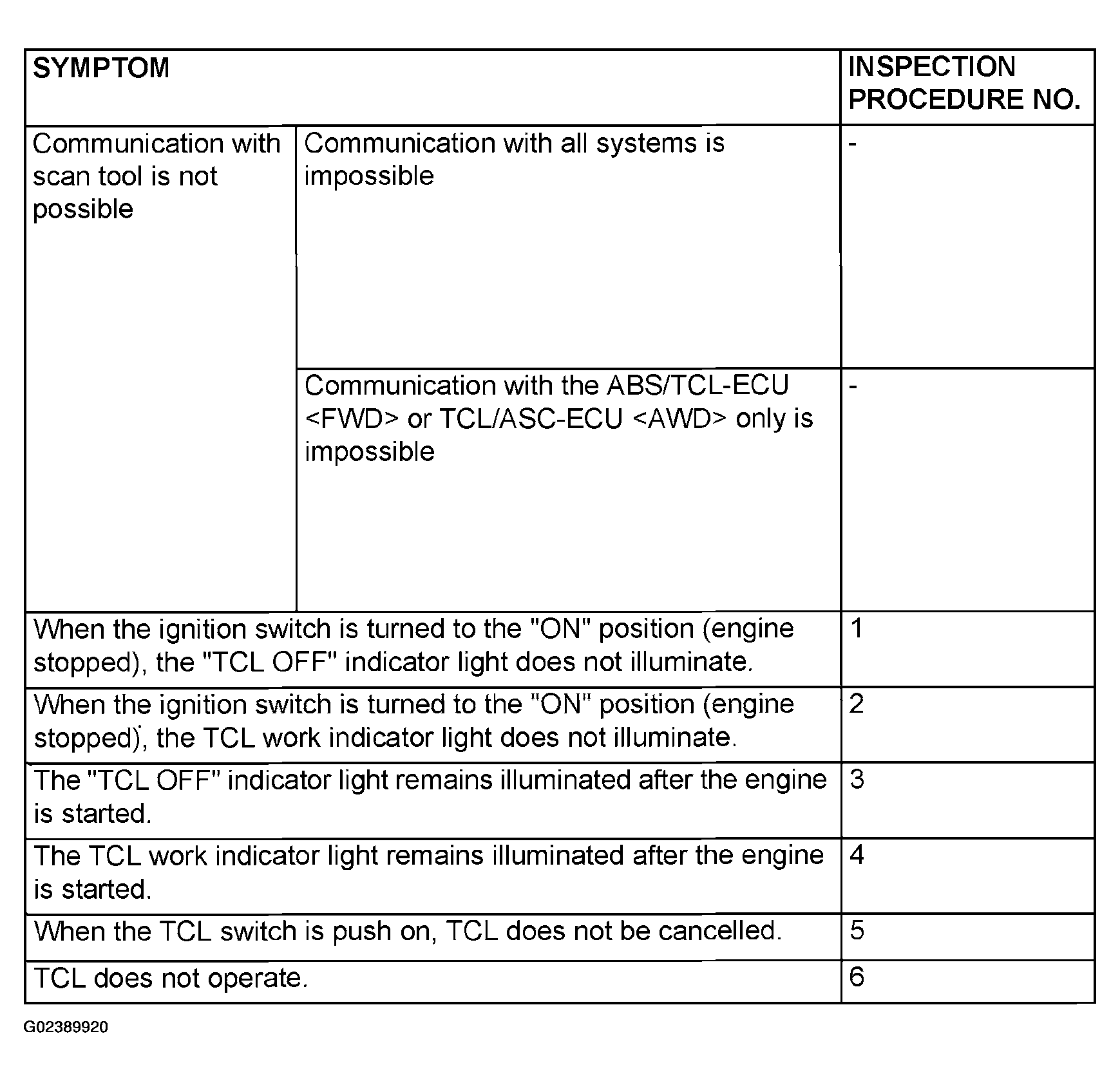

Fig 1: Diagnostic Procedure - Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
