Notes
Removal And Installation: Notes

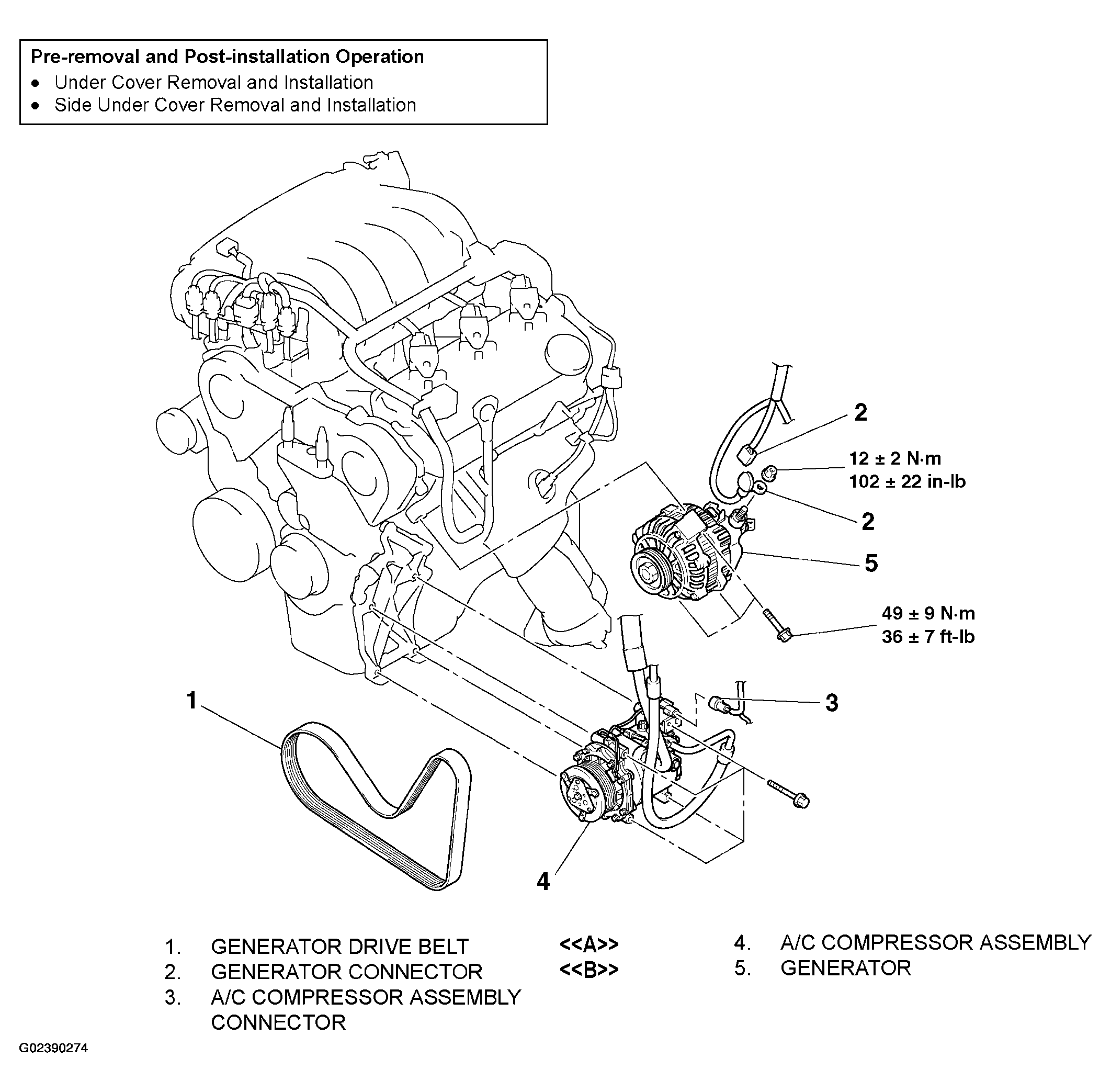

Fig 1: Removing/Installing Generator Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
