General Description
›
Function Element Table
›
Sectional View < W4A5A >
Sectional View < W4A5A >

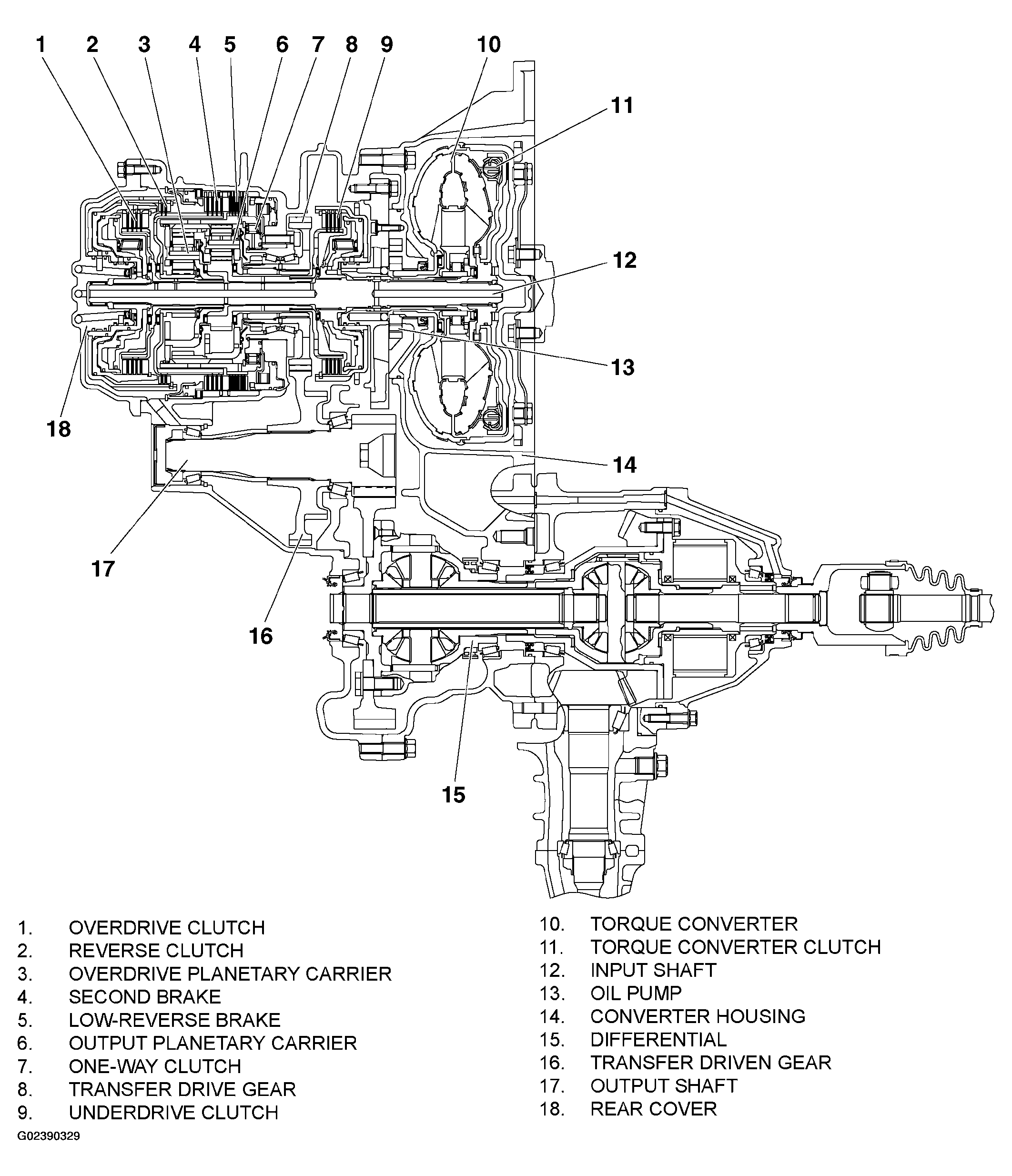

Fig 1: Identifying Automatic Transaxle Sectional View < W4A5A >
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
