Key Reminder Switch Check

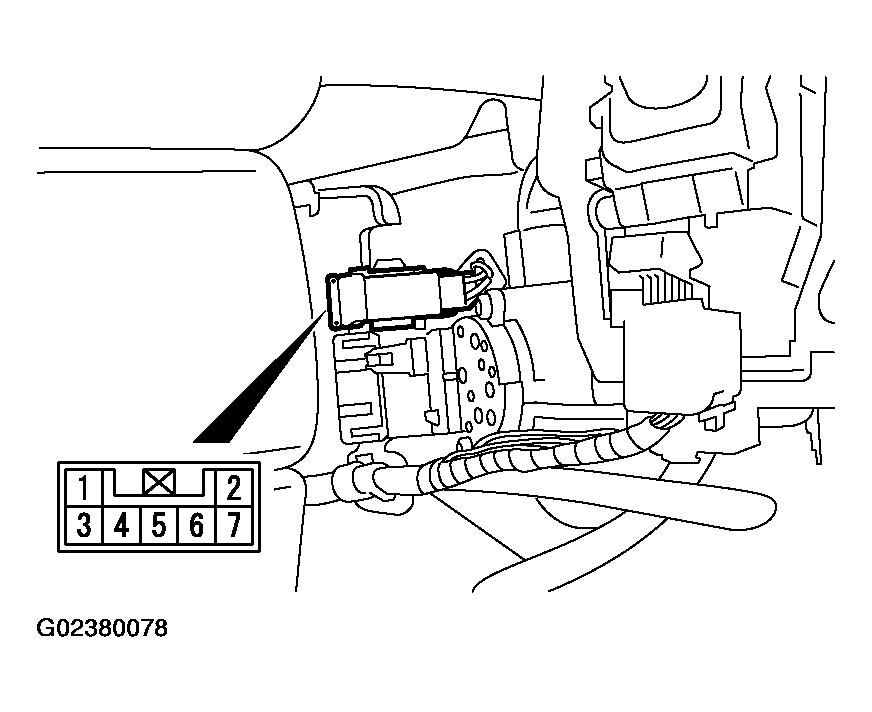

- Disconnect key reminder switch connector C-310 without removing the key reminder switch and steering lock cylinder.
- Check for continuity between terminal 4 and terminal 6.TESTER CONNECTION & SPECIFIED CONDITION
STATUS OF IGNITION KEY TESTER CONNECTION SPECIFIED CONDITION Removed 4-6 Less than 2 ohms Inserted 4-6 Open circuit
