Section 2 (Overhaul (3.8L))
›
Specifications
›
Service Specifications
Service Specifications
WARNING:
This page is about a different variant/trim than selected.

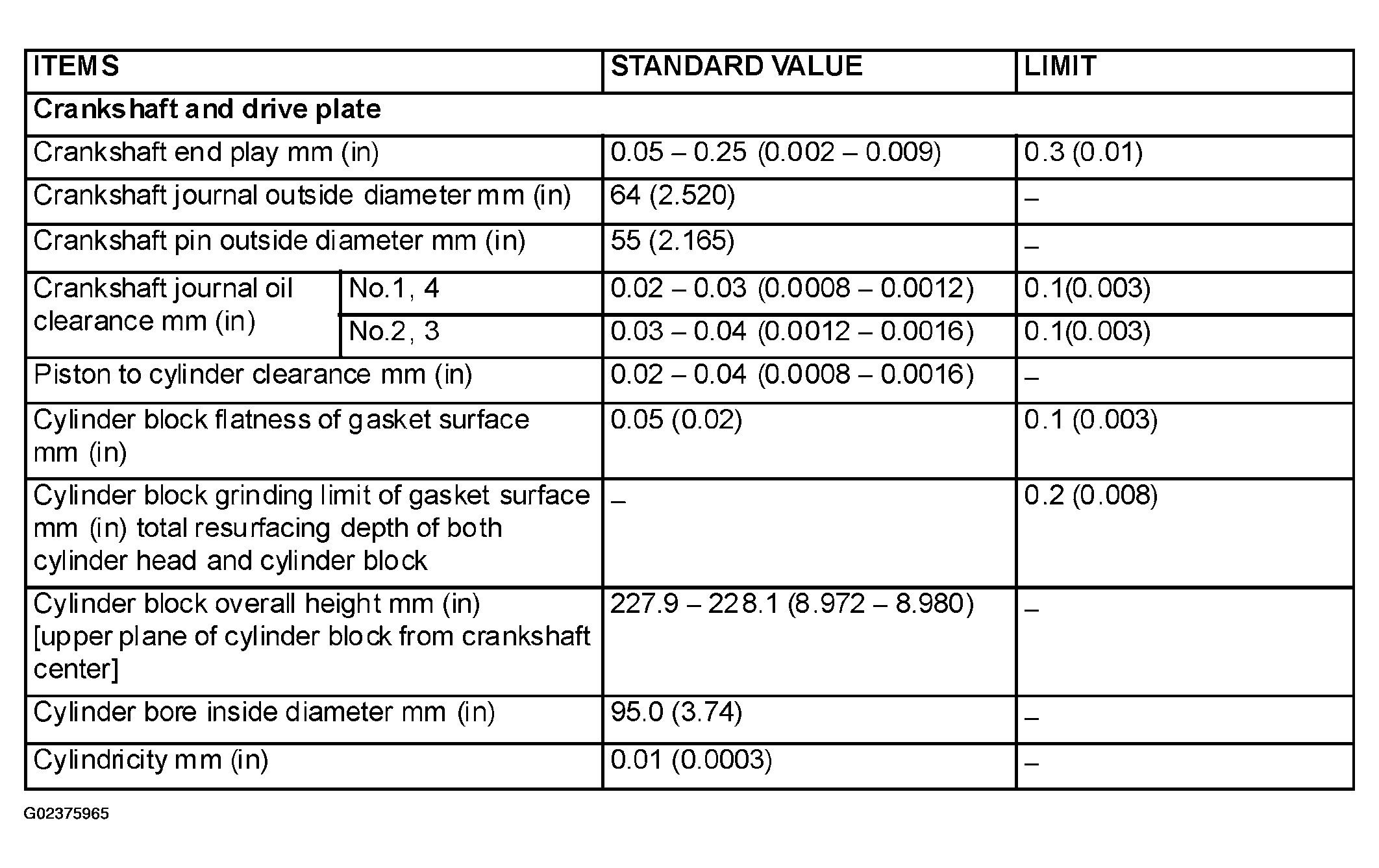

Fig 1: Service Specifications (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

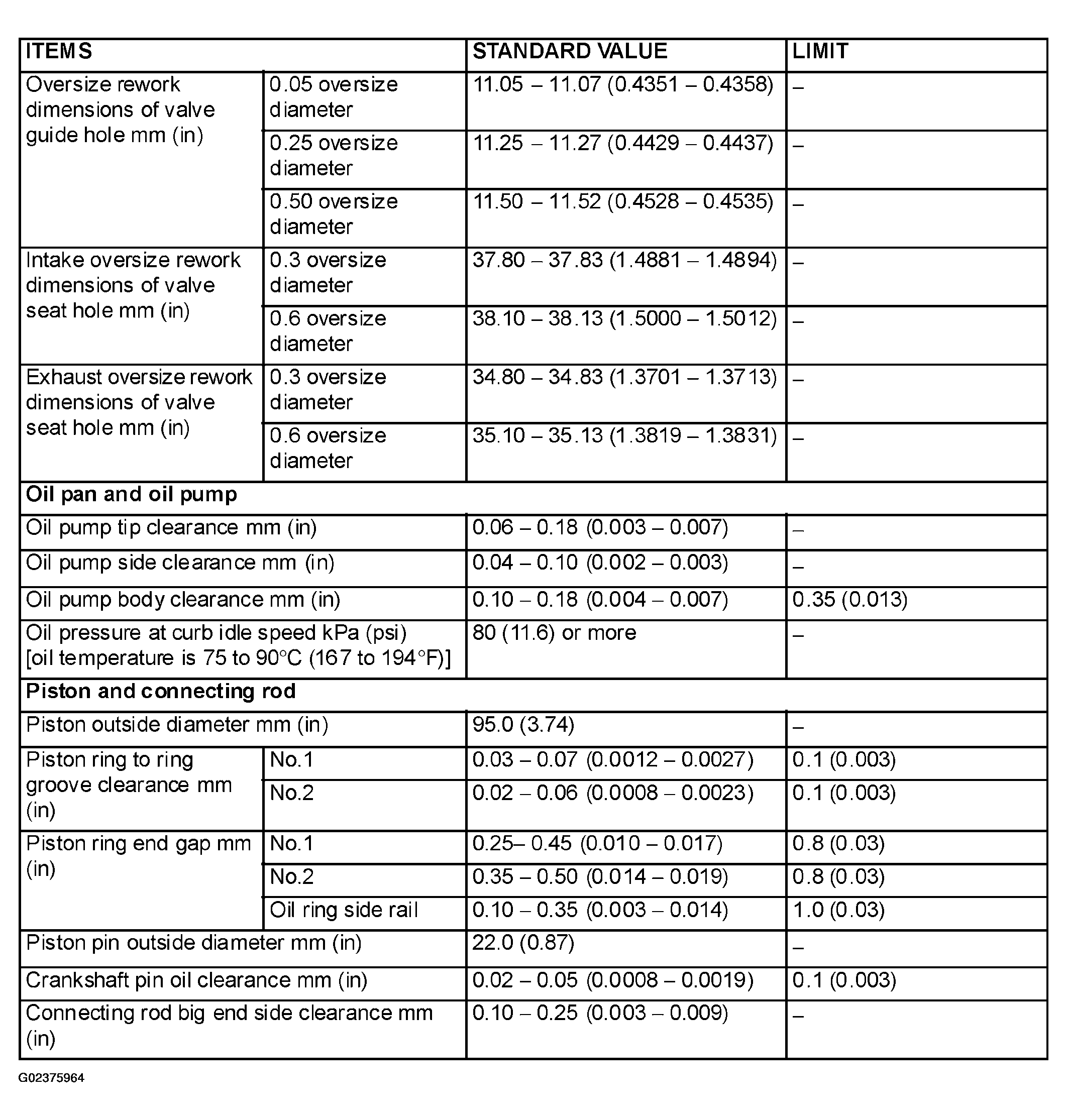

Fig 2: Service Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

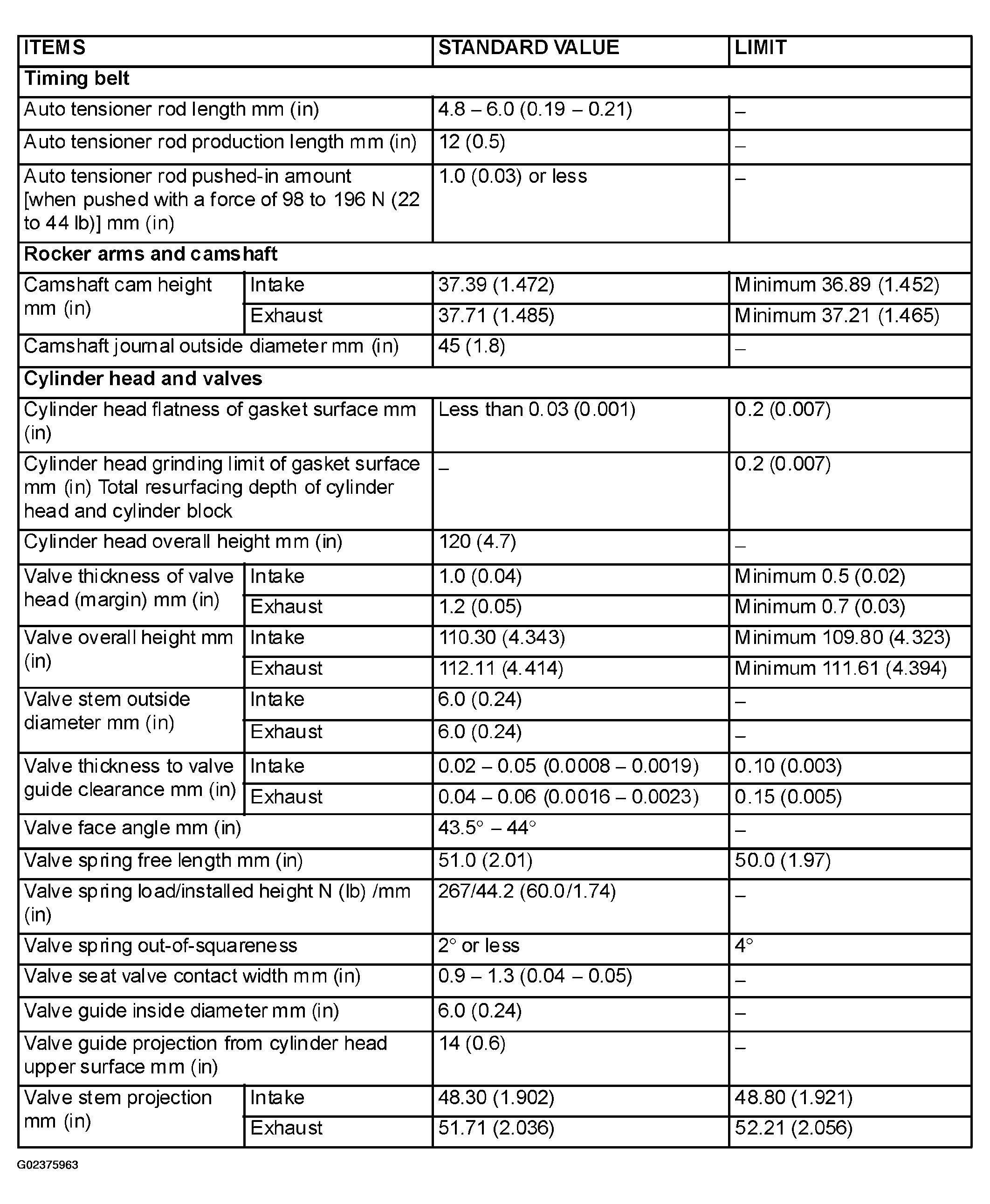

Fig 3: Service Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
