Restraints
›
Passive Restraints
›
Interior
›
Floor Console Assembly
›
Removal And Installation
Removal And Installation

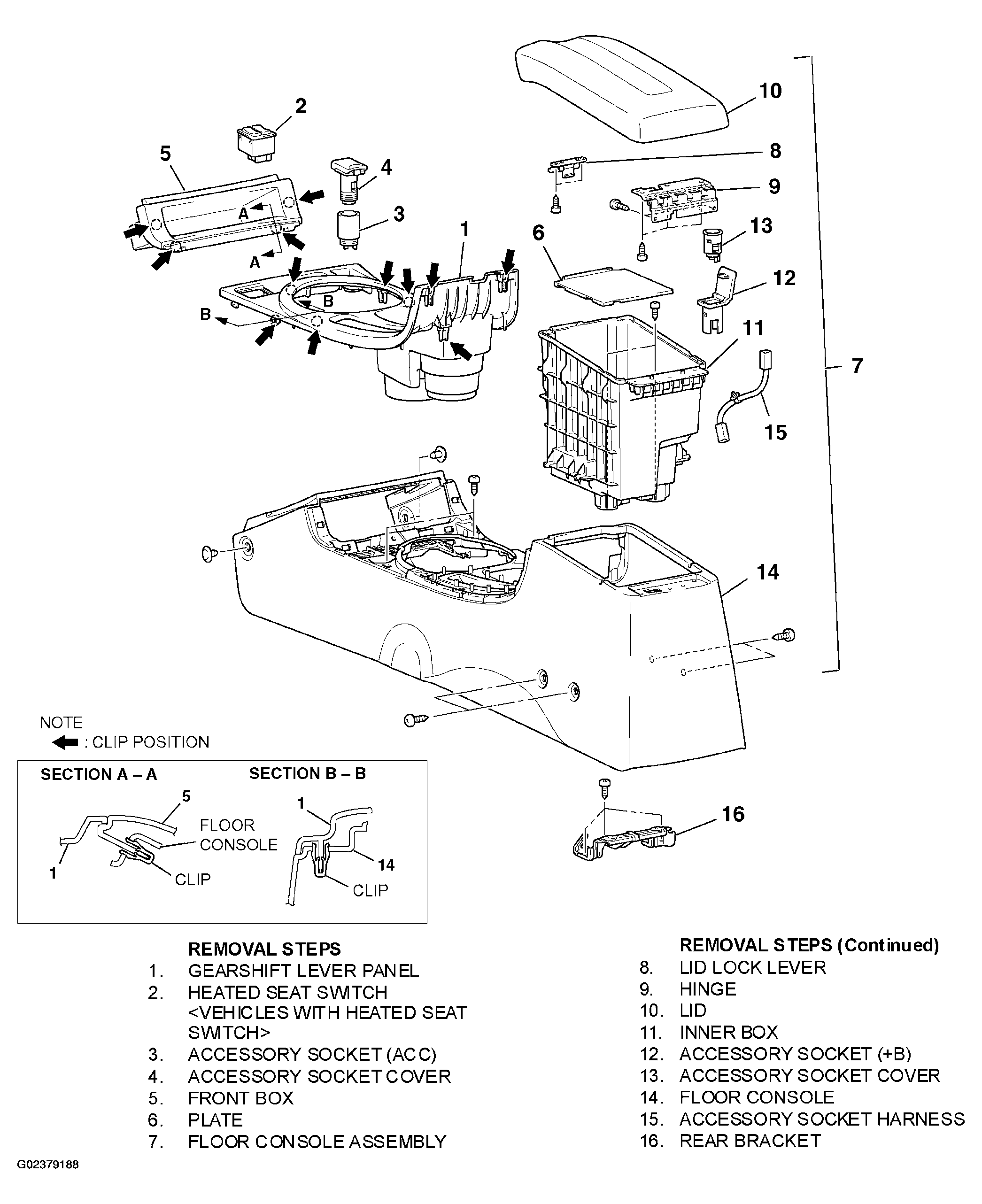

Fig 1: Exploded View Of Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
