Transaxle Control Cable Adjustment
- Move the selector lever to the "N" position.
- Loosen the upper control lever adjusting nut.

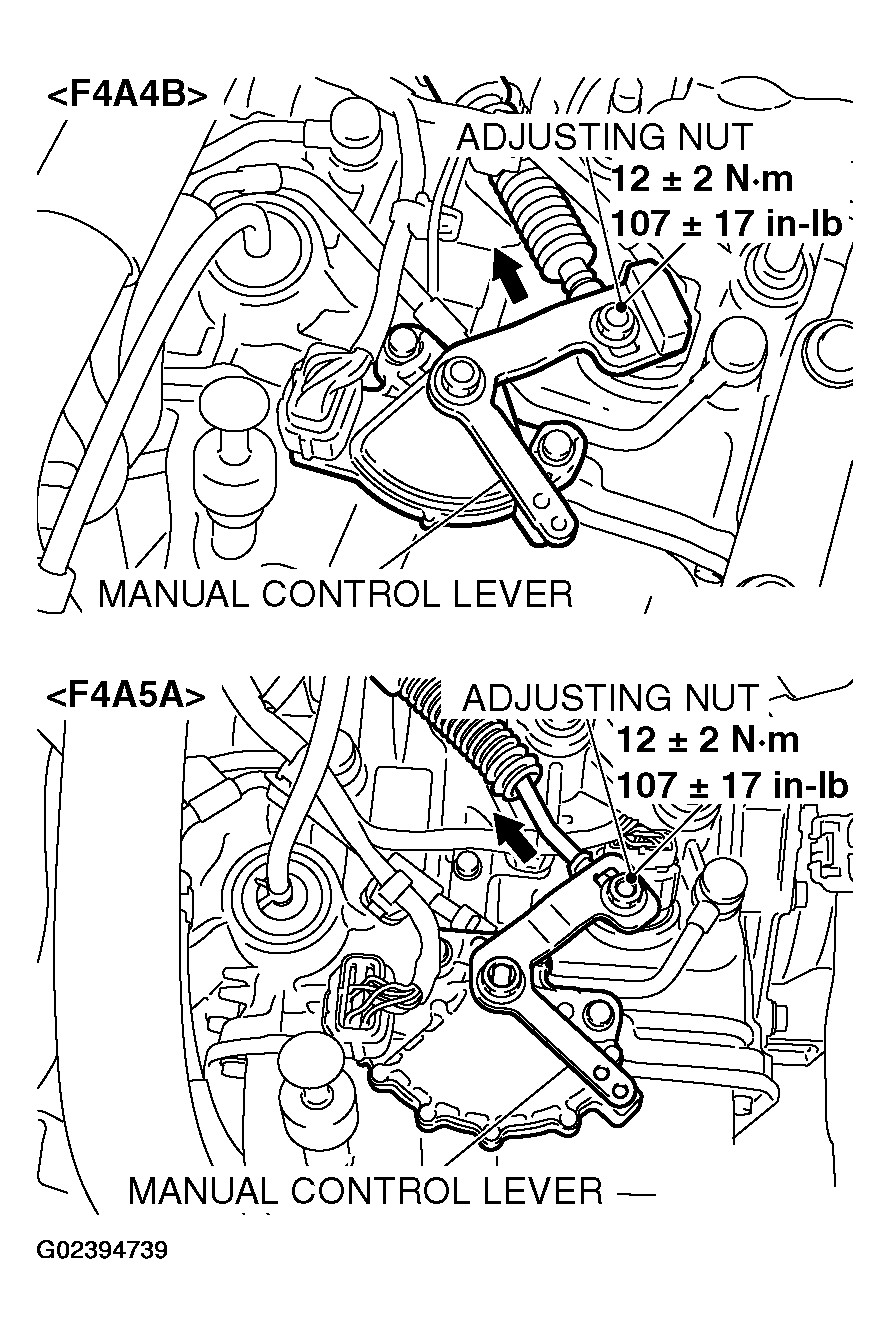

- Gently push the transaxle control cable in the direction of the arrow in Fig 1 and then tighten the adjusting nut.
Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)
- Check that the transaxle shifts to the correct range corresponding to the position of the selector lever, and that it functions correctly in that range.
