Disassembly And Assembly: Notes

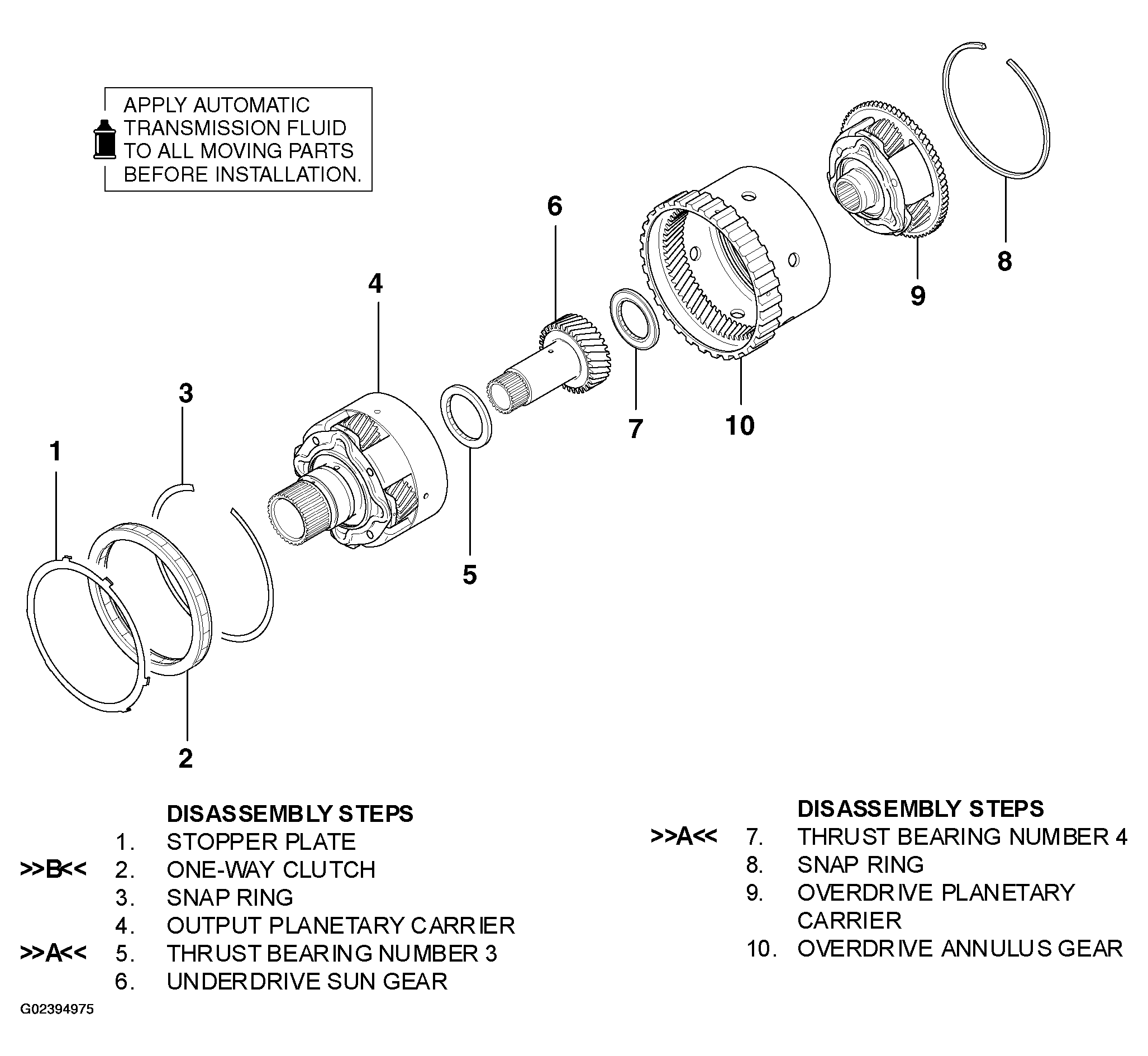

Fig 1: Disassembling Planetary Gear Assembly

G02394975

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
