Auto-Cruise Control Switch Check
- Remove the auto-cruise control switch. (Refer to REMOVAL AND INSTALLATION ).

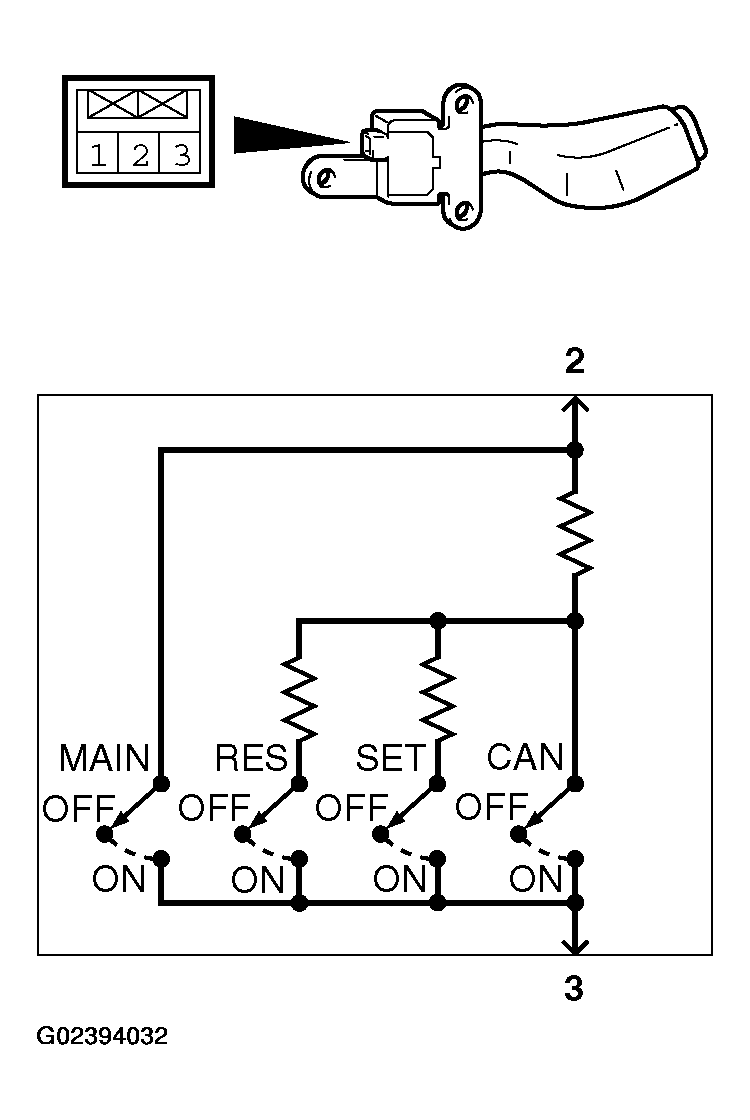

- Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If measure values measured at the time correspond to those in the table below, the resistance values are correct.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SWITCH POSITION & SPECIFIED CONDITION CHARTSWITCH POSITION SPECIFIED CONDITION "CRUISE" (MAIN) switch "OFF" Open circuit "CRUISE" (MAIN) switch "ON" Less than 2 ohms "CANCEL" switch ON Approximately 100 Ω "ACC/RES" switch ON Approximately 887 Ω "COAST/SET" switch ON Approximately 300 Ω
